Truck Bed Winch Mounting Diagram - C-Channel, Spacer & 9/16 Grade 8 Bolts to Frame

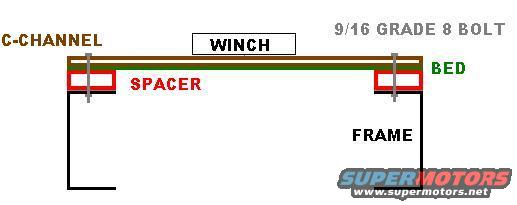

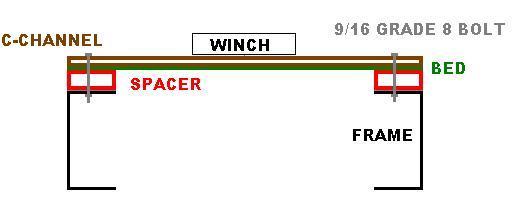

This document is a simple hand-drawn schematic (uploaded as "winch1.JPG") showing a cross-section view of a winch mounting arrangement on a truck. The diagram illustrates how a winch is mounted on top of the truck bed, with the mounting hardware passing down through the bed to the frame below. Labeled components include: the WINCH (boxed at top center), a C-CHANNEL running beneath the winch, the BED surface, a SPACER placed between the bed/C-channel and the frame rail, the FRAME (shown as a C-shaped frame rail cross-section), and 9/16 GRADE 8 BOLT callouts indicating the fasteners (shown as two vertical gray bolts passing through the assembly on each side). A reader can learn the basic stacking order for a bed-mounted winch installation: the winch sits on a C-channel spanning the bed, spacers fill the gap between the bed and the frame rails, and 9/16-inch Grade 8 bolts clamp the entire stack down to the truck frame. No torque values, dimensions, part numbers, or vehicle-specific applicability information are given in the drawing itself.
