Ford Probe 2.5L PCM Connector C247 Pinout - Wire Colors & Circuit Functions

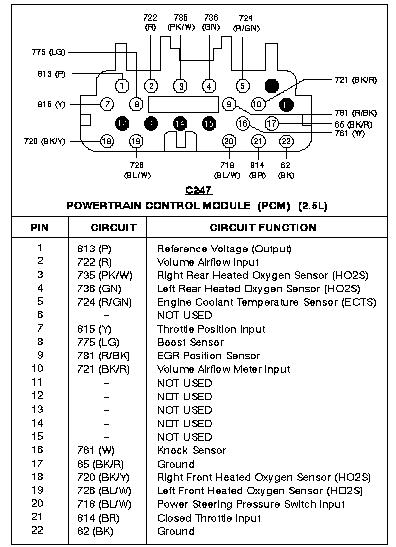

This document is a connector pinout reference for connector C247, the Powertrain Control Module (PCM) connector on a Ford Probe with the 2.5L engine. The top portion shows a physical drawing of the 22-cavity connector with pin numbers and callouts identifying the circuit number and wire color at each cavity. Below the drawing is a table listing all 22 pins with their circuit number, wire color code, and circuit function. Key circuits include Reference Voltage output (813 P), Volume Airflow Input (722 R), four Heated Oxygen Sensor circuits (right rear 735 PK/W, left rear 736 GN, right front 720 BK/Y, left front 726 BL/W), Engine Coolant Temperature Sensor (724 R/GN), Throttle Position Input (815 Y), Boost Sensor (775 LG), EGR Position Sensor (781 R/BK), Volume Airflow Meter Input (721 BK/R), Knock Sensor (761 W), Power Steering Pressure Switch Input (718 BL/W), Closed Throttle Input (814 BR), and two grounds (85 BK/R and 62 BK). Pins 6 and 11 through 15 are marked NOT USED. A reader can use this to identify wire colors and functions when diagnosing or repairing PCM sensor circuits on the 2.5L V6 Probe.
