Ford EEC electronic engine control wiring diagram for 5.0L and 5…

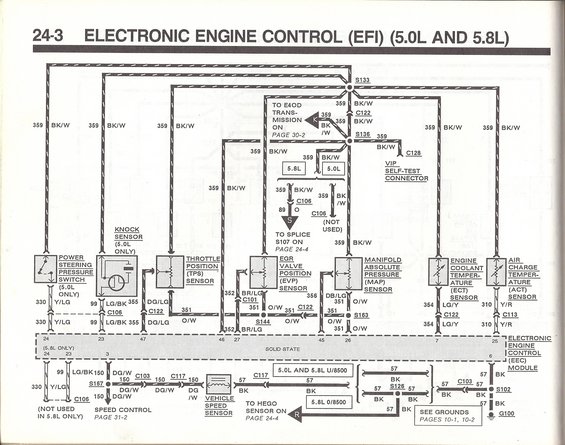

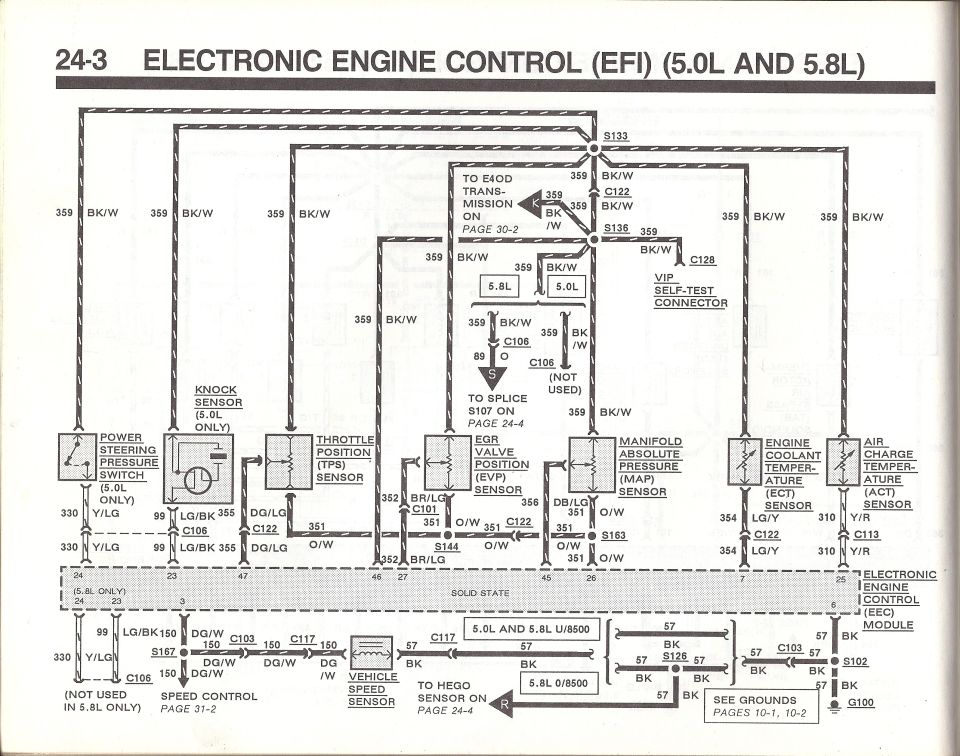

Ford EEC electronic engine control wiring diagram for 5.0L and 5.8L EFI

Page 24-3

Owner caption · Photo 852 of 1787
