1990 Bronco EVTM

From 1990 Ford Bronco “Eddie Bauer”, documented by SeattleFSB.

57 photos
← Back to this vehicle

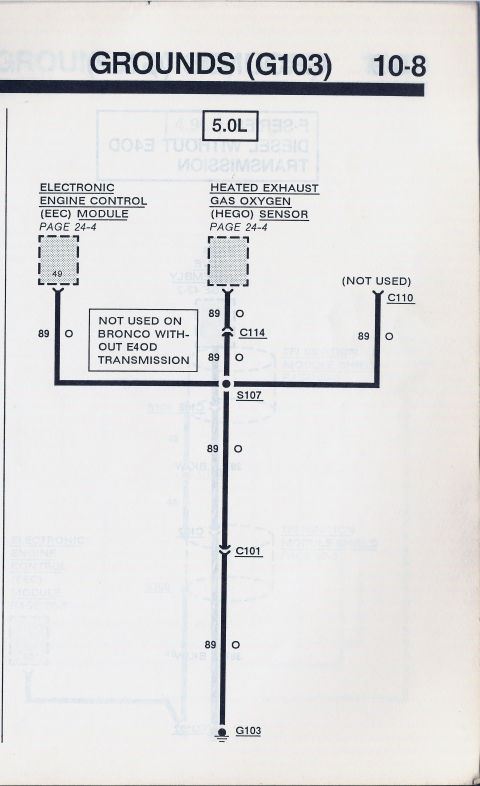

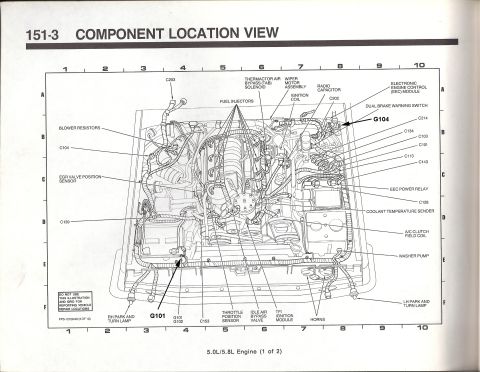

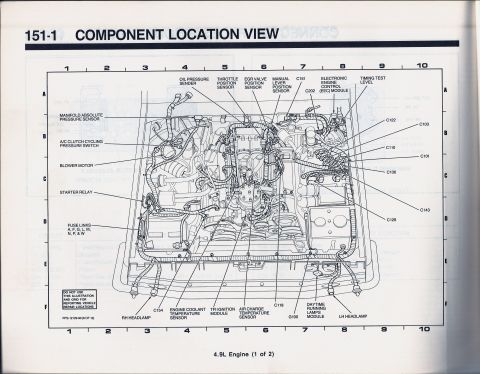

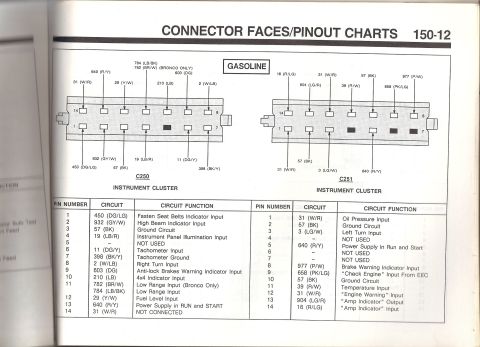

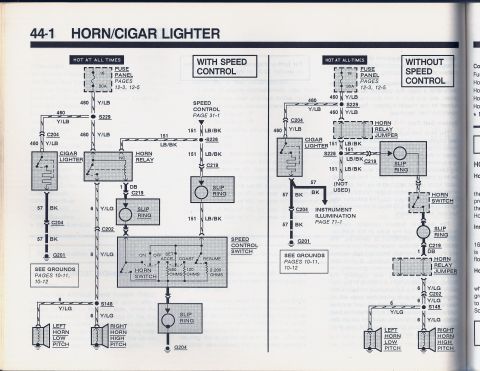

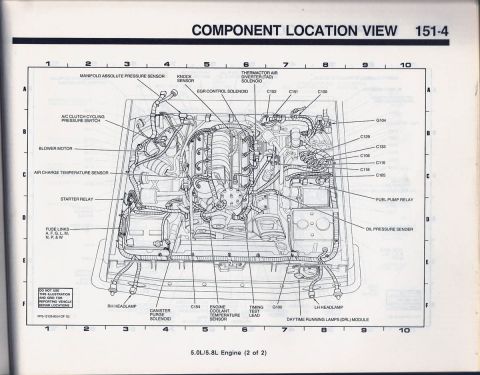

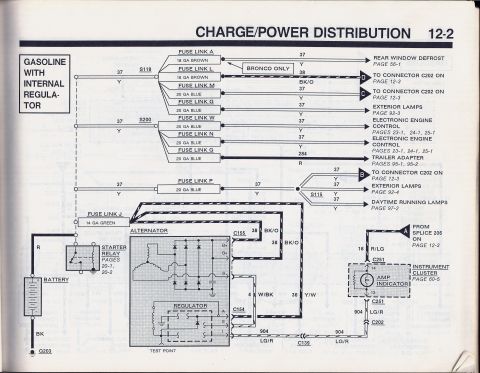

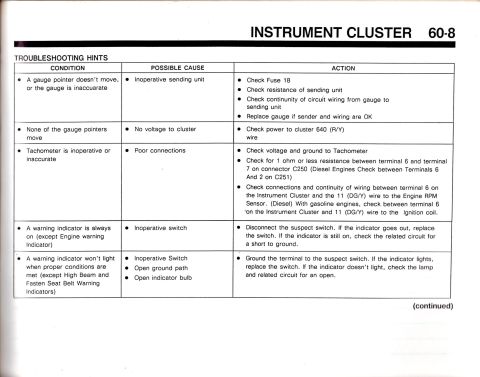

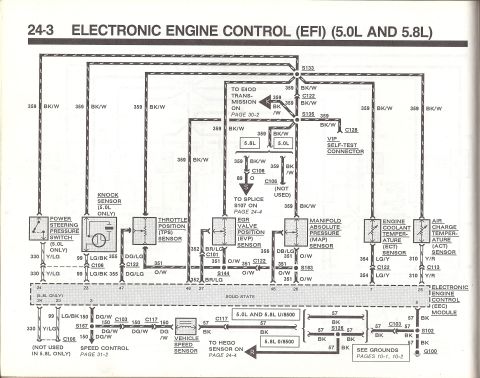

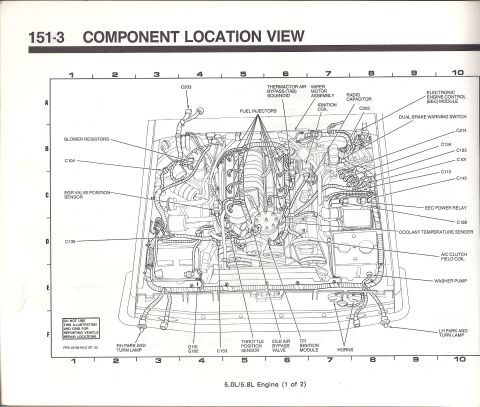

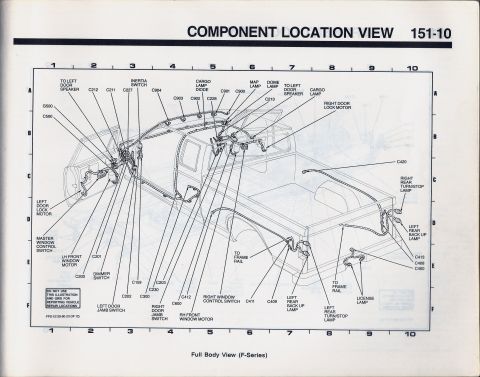

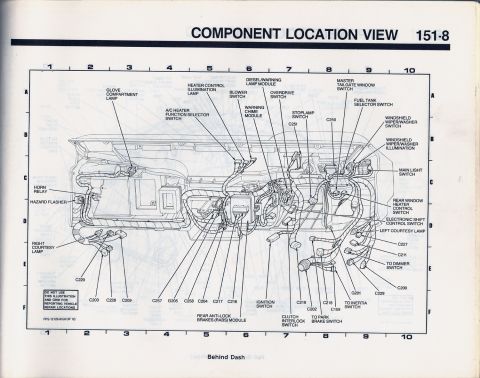

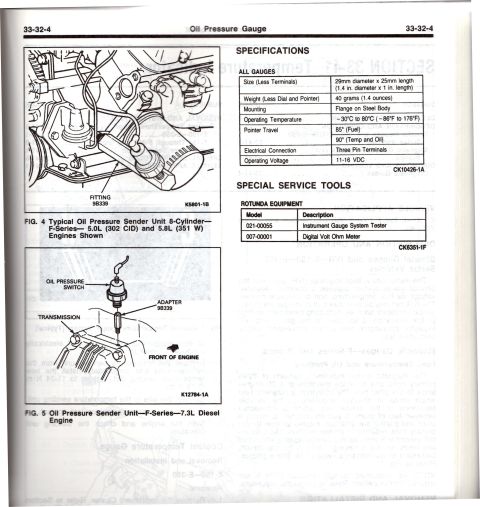

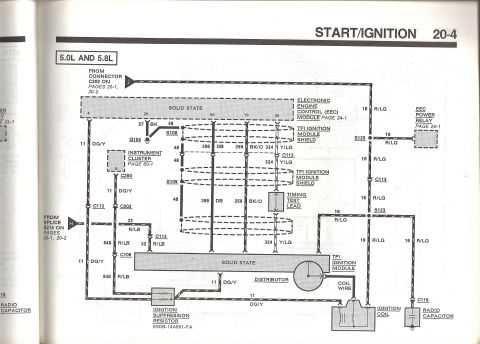

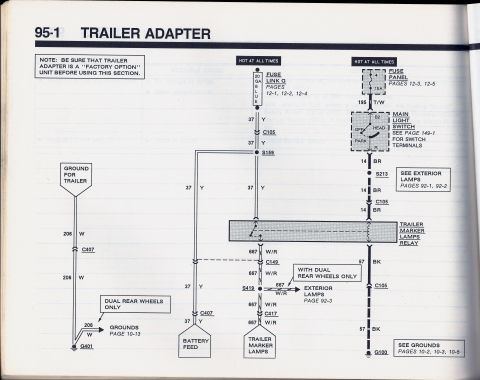

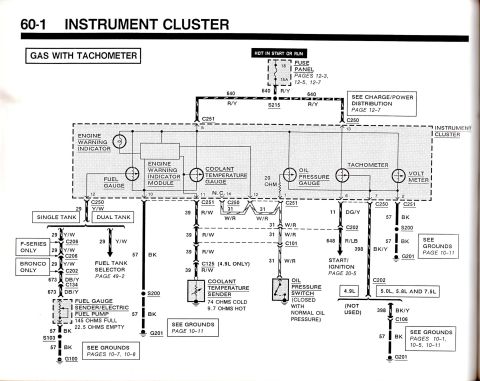

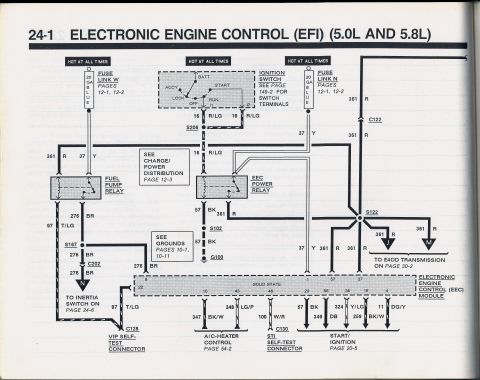

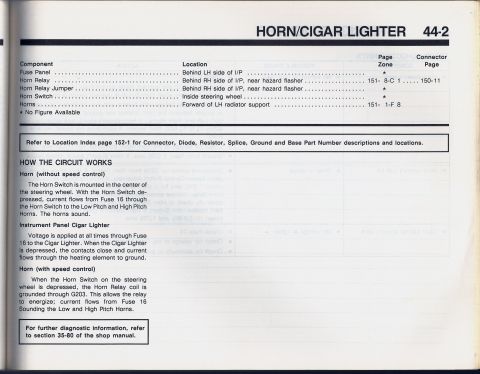

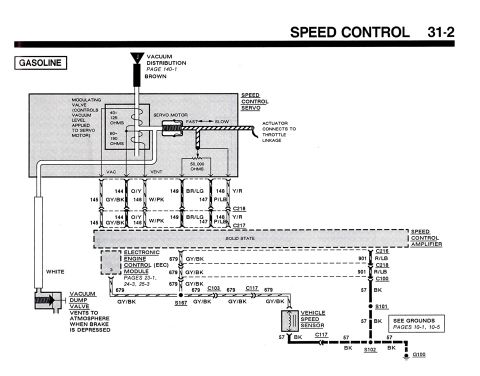

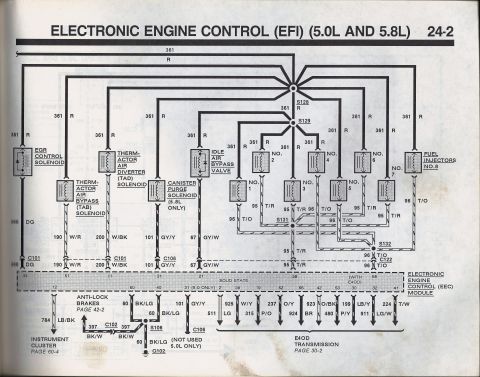

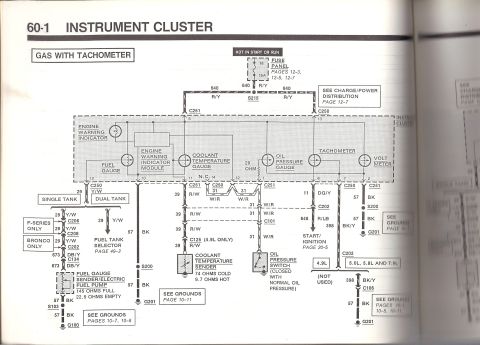

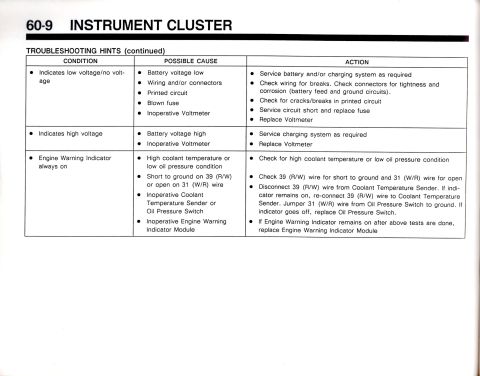

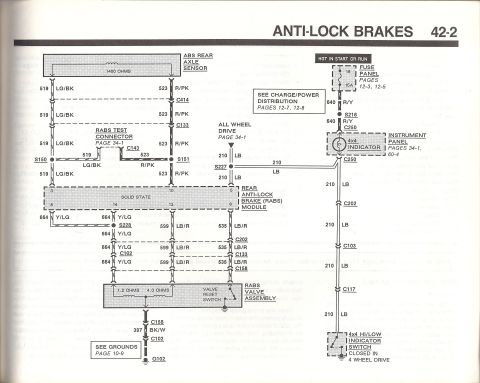

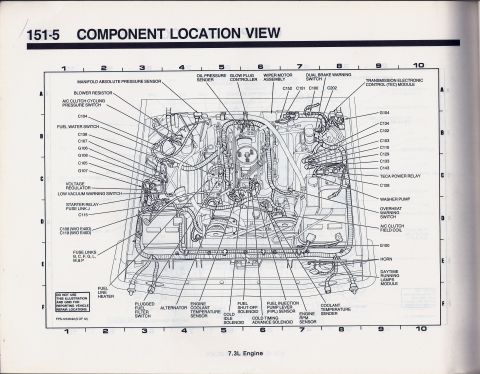

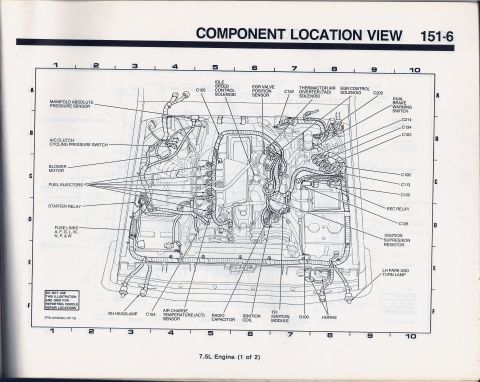

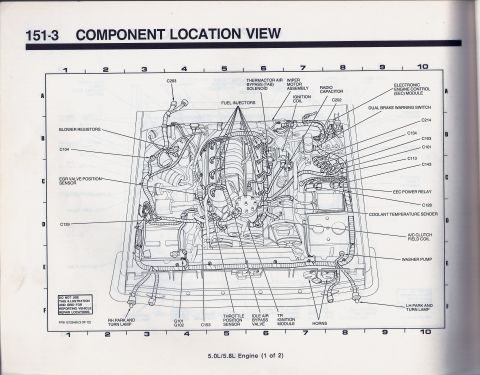

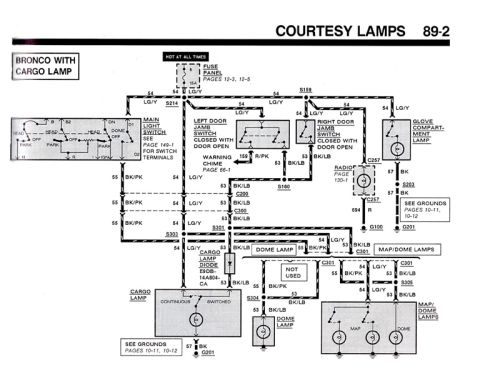

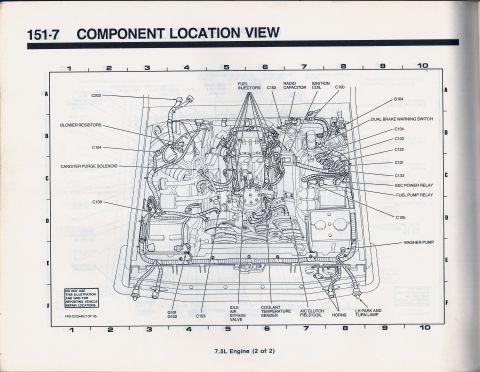

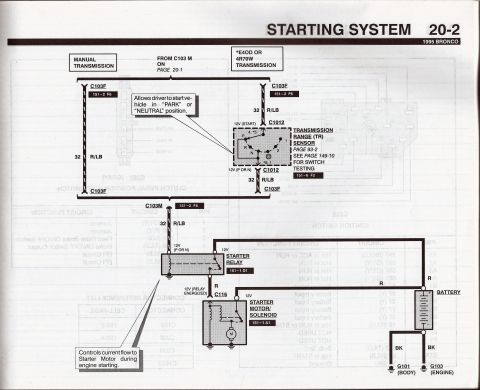

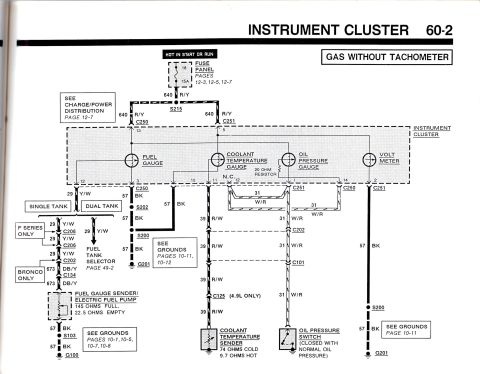

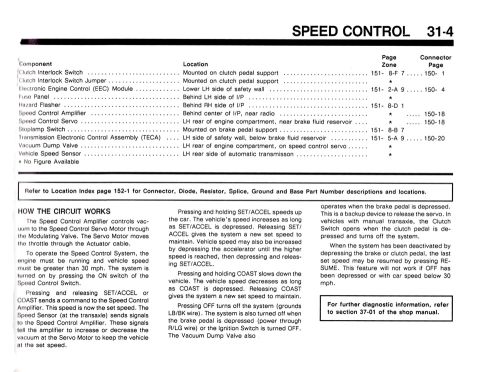

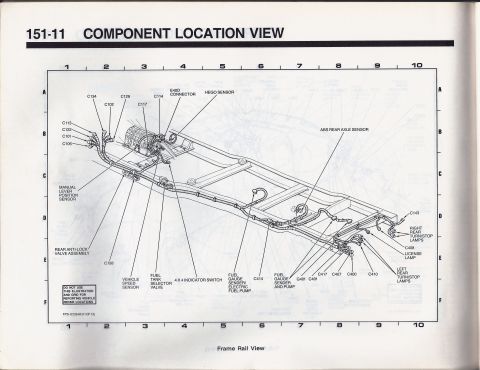

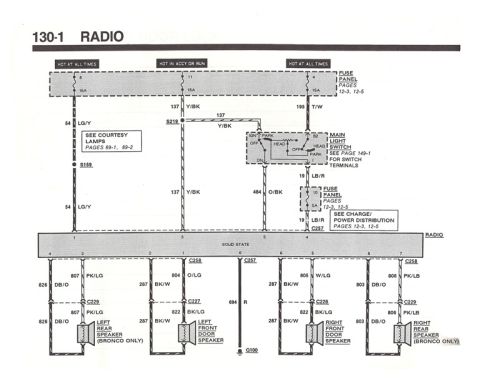

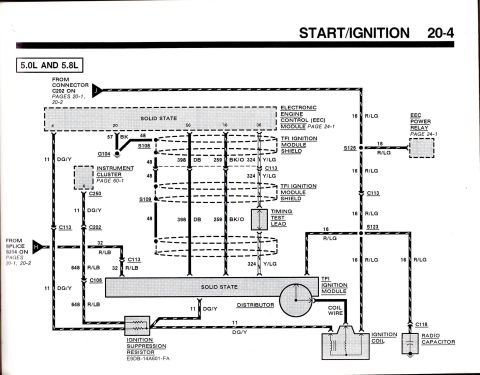

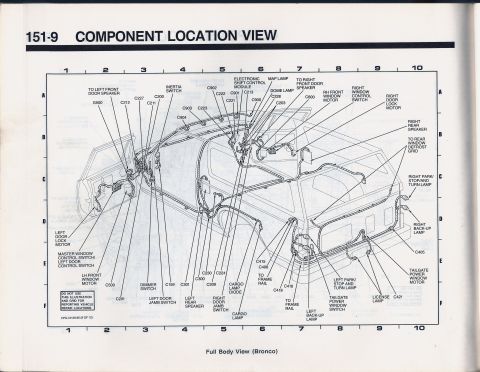

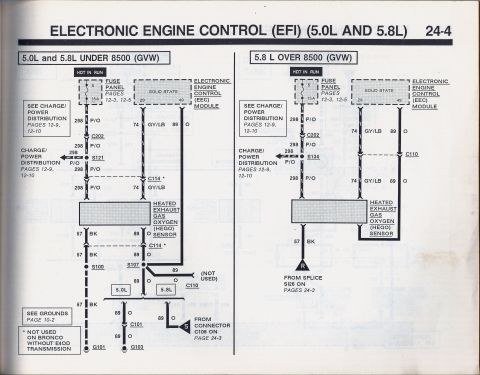

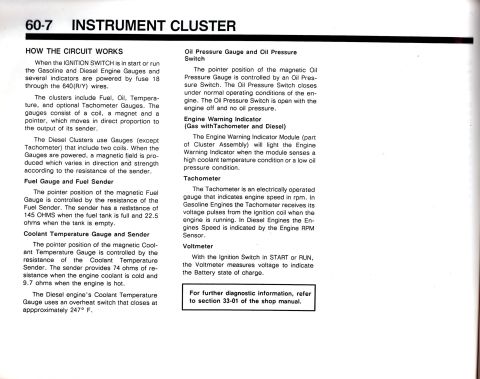

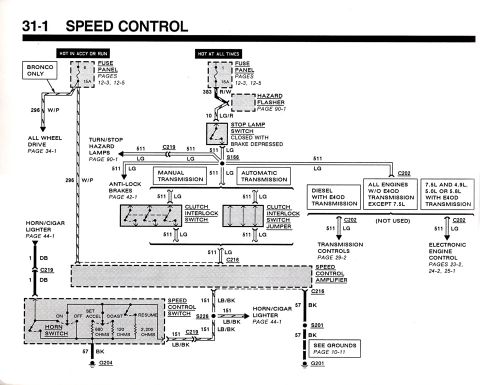

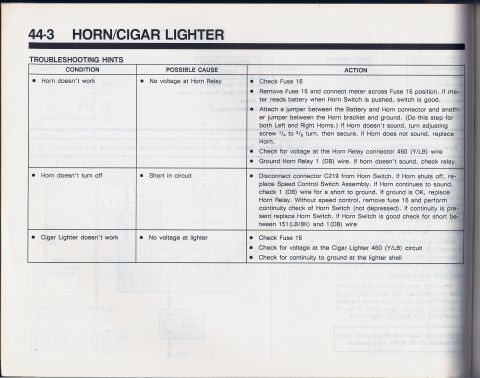

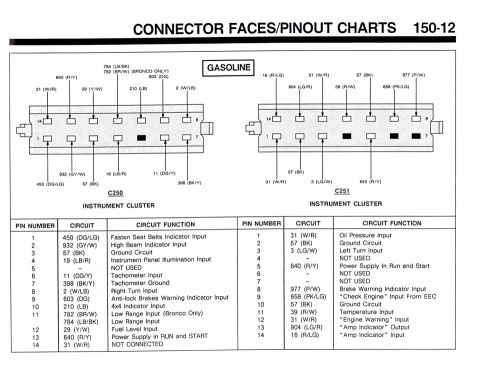

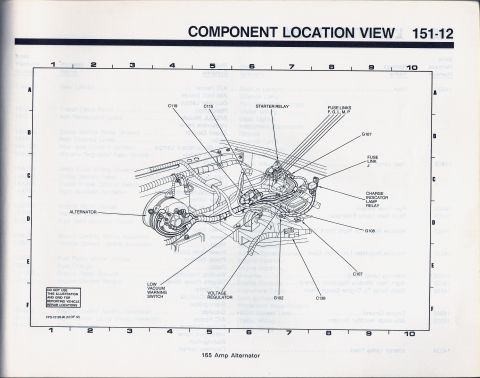

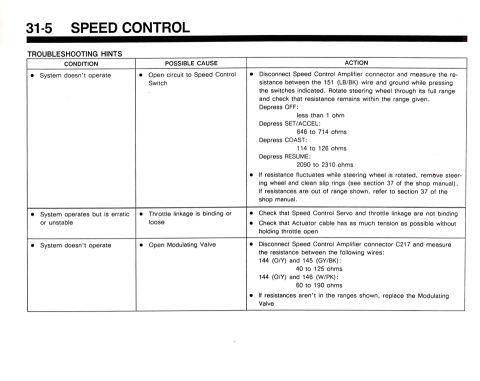

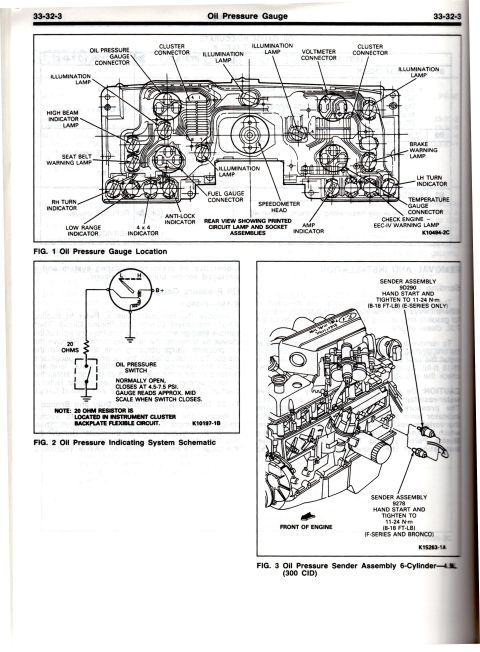

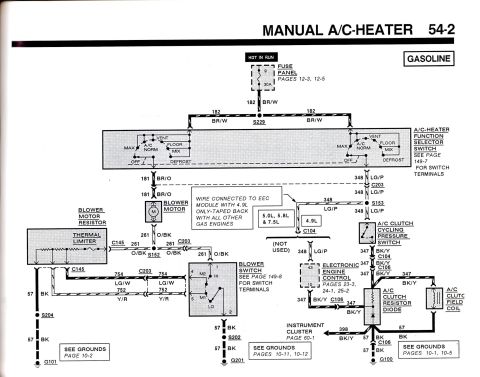

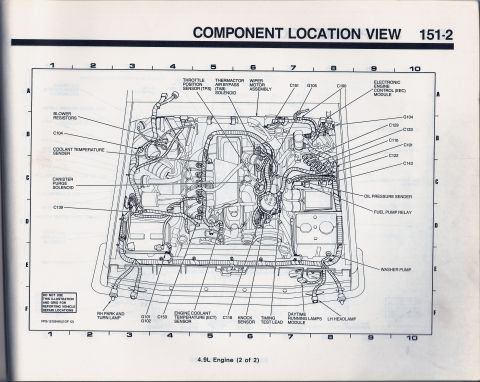

1990 Ford Bronco - Grounds diagram (G103, 10-8) for 5.0L showing ground circuit 89 routing from EEC module and HEGO sensor through splices to G103. 1990 Ford Bronco - Page 12-2 1990 Ford Bronco - Page 20-2 1990 Ford Bronco - Page 20-4 1990 Ford Bronco - Page 20-4 1990 Ford Bronco - Page 24-1 1990 Ford Bronco - Page 24-1 1990 Ford Bronco - Page 24-2 1990 Ford Bronco - page 24-4 1990 Ford Bronco - Page 60-1 1990 Ford Bronco - Page 95-1 1990 Ford Bronco - Page 130-1 1990 Ford Bronco - Page 150-12 1990 Ford Bronco - Page 151-1 1990 Ford Bronco - Page 151-3 1990 Ford Bronco - Page 151-3 1990 Ford Bronco - Page 151-3 1990 Ford Bronco - Ford EVTM component location view 151-1 for the 4.9L engine; maps ECT, ACT, TPS, MAP, EGR position sensor, EEC module, TFI and connectors C… 1990 Ford Bronco - Component location view of the 4.9L engine showing TPS, EEC module, sensors, relays, and connector callouts across the engine compartment. 1990 Ford Bronco - Ford EVTM component location view 151-3 for 5.0L/5.8L engines; maps fuel injectors, TAB solenoid, EEC module, coolant temp sender, EGR posi… 1990 Ford Bronco - Ford EVTM component location view 151-4 for 5.0L/5.8L engines (2 of 2); maps MAP sensor, knock sensor, TAD/EGR control solenoids, fuel pump… 1990 Ford Bronco - Ford EVTM component location view 151-5 for the 7.3L diesel; maps glow plug controller, TEC module, fuel water switch, fuel injection pump… 1990 Ford Bronco - Ford EVTM component location view 151-6 for the 7.5L engine (1 of 2); maps MAP sensor, idle speed control solenoid, EGR valve position sens… 1990 Ford Bronco - Ford EVTM component location view 151-7 for the 7.5L engine (2 of 2); maps fuel injectors, radio capacitor, ignition coil, EEC power relay,… 1990 Ford Bronco - Component location view behind the dash identifying switches, relays, control modules, and connector numbers for the vehicle wiring. 1990 Ford Bronco - Component location view (full body, Bronco) identifying door motors, lamps, window controls, and connector callouts throughout the body. 1990 Ford Bronco - Component location view (full body, F-Series) identifying door motors, cargo and turn lamps, switches, and connector callouts. 1990 Ford Bronco - Component location view (frame rail) identifying speed sensor, ABS sensors, fuel pumps, turn/stop lamps, and connector callouts. 1990 Ford Bronco - Ford EVTM component location view 151-12 for the 165-amp alternator charging system; maps alternator, voltage regulator, starter relay, cha… 1990 Ford Bronco - Horn/cigar lighter wiring diagram (44-1) showing with and without speed control circuits, fuse panel feeds, relays, and grounds. 1990 Ford Bronco - Ford EVTM page 44-2 for the horn/cigar lighter circuit; lists fuse panel, horn relay and horn locations and explains horn current path from… 1990 Ford Bronco - Horn/cigar lighter diagnostic troubleshooting chart: conditions, causes and test actions including checking Fuse 16, Horn Relay connector 4… 1990 Ford Bronco - Rear Anti-Lock Brake (RABS) wiring schematic showing the 1400-ohm rear axle sensor, RABS module, RABS valve assembly with 1.2 and 4.0 ohm c… 1990 Ford Bronco - Page 24-3 1990 Ford Bronco - Cover of the 1990 Ford Bronco/F150-F350 F-Super Duty Electrical & Vacuum Troubleshooting Manual, showing a black-and-white illustration of… 1990 Ford Bronco - Instrument cluster wiring diagram for gas-with-tachometer clusters showing fuel, temperature, oil pressure gauges, senders and color-coded… 1990 Ford Bronco - Instrument cluster wiring (60-2, gas without tach) showing fuel, coolant temp, oil pressure gauges and voltmeter fed by fuse 18 via 640 R/Y… 1990 Ford Bronco - Shop manual page 60-7 explaining how the magnetic fuel, coolant temp, oil pressure gauges, tachometer and voltmeter operate; fuel sender 14… 1990 Ford Bronco - Shop manual troubleshooting chart (60-8) for instrument cluster: gauge-not-moving, no-cluster-voltage, inoperative tachometer and warning-i… 1990 Ford Bronco - Shop manual troubleshooting chart (60-9) covering voltmeter low/high voltage and always-on engine warning indicator; check shorts on 39 R/W… 1990 Ford Bronco - Oil pressure gauge service page: cluster bulb/connector location, oil-pressure indicating schematic (switch closes 4.5-7.5 psi, 20 ohm resi… 1990 Ford Bronco - Scanned service manual page covering the oil pressure gauge with a specifications table, oil pressure sender figures and special service to… 1990 Ford Bronco - Start/ignition wiring (20-4) for 5.0L/5.8L showing TFI ignition module, ignition coil, distributor, suppression resistor, EEC module and po… 1990 Ford Bronco - Manual A/C-heater electrical schematic for 1995 Ford Bronco gasoline trucks: blower motor resistor, thermal limiter, function selector swit… 1990 Ford Bronco - Fuse panel layout and circuit-protection chart for a Ford truck/Bronco listing each fuse position, amp rating, color code and circuits prot… 1990 Ford Bronco - Component location view (sheet 2 of 2) for Ford 5.0L/5.8L engine identifying MAP, knock, air charge temp sensors, EGR/thermactor solenoids,… 1990 Ford Bronco - Connector face/pinout chart (page 150-12) for the Ford instrument cluster connectors C250 and C251, listing pin numbers, circuit IDs, wire… 1990 Ford Bronco - Wiring diagram of the courtesy lamps circuit showing dome, map and cargo lamps, door jamb switches and color-coded wires. 1990 Ford Bronco - Speed control wiring diagram (page 31-1) showing the speed control amplifier, switches, fuse panel, and color-coded circuits with connector… 1990 Ford Bronco - Ford speed control (cruise) wiring diagram page 31-2 showing the servo amplifier, modulating valve (40-125/60-190 ohm), servo motor, vacuum… 1990 Ford Bronco - Ford speed control service page 31-4 listing component locations (clutch interlock switch, EEC module, servo amplifier, dump valve, speed s… 1990 Ford Bronco - This document provides troubleshooting steps for a vehicle's speed control system, detailing conditions, causes, and actions. 1990 Ford Bronco - This is a wiring diagram for the 66-1 Warning Chime system. It shows various components like fuse panels, switches, and modules with their… 1990 Ford Bronco - This is a page from a vehicle manual detailing the Warning Chime system. It includes a table of components and their locations, as well as… 1990 Ford Bronco - This is a page from a service manual detailing troubleshooting hints for a warning chime system. It includes a table with columns for Condi… 1990 Ford Bronco - This is a page from a vehicle repair manual detailing troubleshooting hints for a warning chime system. It includes a table with conditions… 1990 Ford Bronco - Wiring manual page 150-22 titled Connector Faces/Pinout Charts showing C128 VIP self-test connector pinouts and warning chime module.
