How tight should the outer lock nut be?

The outer lock nut is tightened to 217-278 N·m (160-205 lb-ft).

What is the torque for the capscrews on the hub?

The capscrews are tightened to 4-6 N·m (35-53 lb-in).

What is the order of parts on the front spindle assembly?

From the halfshaft outward: rolling diaphragm seal (axle), integral spacer needle bearing seal, caged needle bearing, front wheel spindle, spindle rolling diaphragm seal; then wheel hub grease seal, inner wheel bearing with cup, front disc brake hub and rotor, outer wheel bearing with cup; then pin, inner lock nut, lockwasher, outer lock nut, steel/plastic/splined thrust washers, C-ring, hub body, lock ring, cup, and capscrew.

What thrust washers are used in this hub assembly?

Three thrust washers are shown: a steel thrust washer (item 15), a plastic thrust washer (item 16), and a splined thrust washer (item 17).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “JUICE”/ Photo supermotors.net/registry/media/904844

Ford Bronco Front Wheel Hub & Bearing Exploded Diagram - Torque Specs

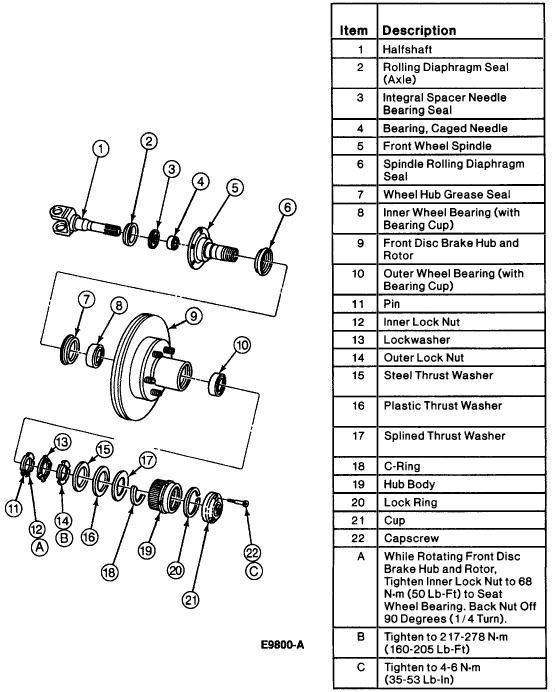

Exploded view of front hub, spindle, and bearings with numbered part legend and torque notes

‹ ›

Exploded parts diagram of the front wheel hub, spindle, and bearings with a numbered item legend and torque specifications.

AI caption January 2012 · Photo 71 of 561

This document is an exploded parts diagram of a front wheel hub, spindle, and bearing assembly for a four-wheel-drive vehicle (uploaded as applying to a 1995 Ford Bronco). The illustration shows 22 numbered components in disassembly order, keyed to a legend table. Components include the halfshaft, rolling diaphragm seals (axle and spindle), integral spacer needle bearing seal, caged needle bearing, front wheel spindle, wheel hub grease seal, inner and outer wheel bearings with bearing cups, front disc brake hub and rotor, pin, inner and outer lock nuts, lockwasher, steel/plastic/splined thrust washers, C-ring, hub body, lock ring, cup, and capscrew (locking hub hardware). Three torque callouts are included: (A) while rotating the front disc brake hub and rotor, tighten the inner lock nut to 68 N·m (50 lb-ft) to seat the wheel bearing, then back the nut off 90 degrees (1/4 turn); (B) tighten the outer lock nut to 217-278 N·m (160-205 lb-ft); and (C) tighten the capscrews to 4-6 N·m (35-53 lb-in). The figure carries the reference number E9800-A. A reader can learn the assembly sequence, part names, and wheel bearing adjustment torque procedure for the front hub.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for seating the front wheel bearing?: While rotating the front disc brake hub and rotor, tighten the inner lock nut to 68 N·m (50 lb-ft) to seat the wheel bearing, then back the nut off 90 degrees (1/4 turn).
How tight should the outer lock nut be?: The outer lock nut is tightened to 217-278 N·m (160-205 lb-ft).
What is the torque for the capscrews on the hub?: The capscrews are tightened to 4-6 N·m (35-53 lb-in).
What is the order of parts on the front spindle assembly?: From the halfshaft outward: rolling diaphragm seal (axle), integral spacer needle bearing seal, caged needle bearing, front wheel spindle, spindle rolling diaphragm seal; then wheel hub grease seal, inner wheel bearing with cup, front disc brake hub and rotor, outer wheel bearing with cup; then pin, inner lock nut, lockwasher, outer lock nut, steel/plastic/splined thrust washers, C-ring, hub body, lock ring, cup, and capscrew.
What thrust washers are used in this hub assembly?: Three thrust washers are shown: a steel thrust washer (item 15), a plastic thrust washer (item 16), and a splined thrust washer (item 17).
