What torque do the hub capscrews get?

The capscrews (item 22) are tightened to 4-6 N·m (35-53 lb-in).

What is the order of parts in the front hub lock assembly?

Per the diagram: pin (11), inner lock nut (12), lockwasher (13), outer lock nut (14), steel thrust washer (15), plastic thrust washer (16), splined thrust washer (17), C-ring (18), hub body (19), lock ring (20), cup (21), and capscrew (22).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “JUICE”/ Photo supermotors.net/registry/media/904846

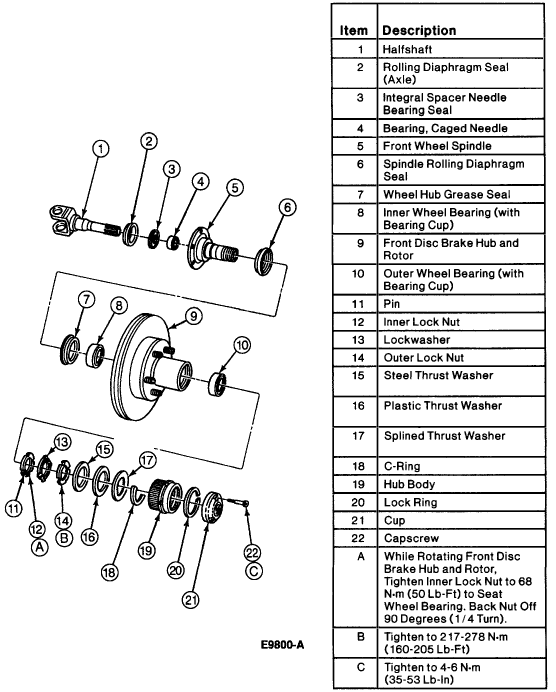

Ford Bronco Front Wheel Bearing & Hub Exploded Diagram with Torque Specs

Exploded view of front hub, spindle, and bearings with numbered part legend and torque notes

‹ ›

Exploded parts diagram of the front wheel hub, spindle, and bearings with a numbered item legend and torque specifications.

AI caption January 2012 · Photo 73 of 561

This document is an exploded parts diagram (reference E9800-A) of a Ford front wheel hub, bearing, spindle, and locking hub assembly, uploaded to a 1995 Ford Bronco gallery. The left side shows an exploded illustration with 22 numbered callouts, and the right side contains a legend table identifying each component: halfshaft, rolling diaphragm seal (axle), integral spacer needle bearing seal, caged needle bearing, front wheel spindle, spindle rolling diaphragm seal, wheel hub grease seal, inner and outer wheel bearings (with bearing cups), front disc brake hub and rotor, pin, inner and outer lock nuts, lockwasher, steel/plastic/splined thrust washers, C-ring, hub body, lock ring, cup, and capscrew. Three lettered notes give torque and adjustment specifications: (A) while rotating the front disc brake hub and rotor, tighten the inner lock nut to 68 N·m (50 lb-ft) to seat the wheel bearing, then back the nut off 90 degrees (1/4 turn); (B) tighten the outer lock nut to 217-278 N·m (160-205 lb-ft); (C) tighten the capscrews to 4-6 N·m (35-53 lb-in). This is useful for anyone rebuilding front wheel bearings or locking hubs on a solid-front-axle Ford truck.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for the inner lock nut when seating the front wheel bearing?: While rotating the front disc brake hub and rotor, tighten the inner lock nut to 68 N·m (50 lb-ft) to seat the wheel bearing, then back the nut off 90 degrees (1/4 turn).
What is the torque spec for the outer lock nut?: Tighten the outer lock nut to 217-278 N·m (160-205 lb-ft).
What torque do the hub capscrews get?: The capscrews (item 22) are tightened to 4-6 N·m (35-53 lb-in).
What is the order of parts in the front hub lock assembly?: Per the diagram: pin (11), inner lock nut (12), lockwasher (13), outer lock nut (14), steel thrust washer (15), plastic thrust washer (16), splined thrust washer (17), C-ring (18), hub body (19), lock ring (20), cup (21), and capscrew (22).
Which bearings and seals are shown between the halfshaft and the hub/rotor?: Rolling diaphragm seal (axle), integral spacer needle bearing seal, caged needle bearing, front wheel spindle, spindle rolling diaphragm seal, wheel hub grease seal, and the inner and outer wheel bearings with bearing cups.
