What is the torque for the outer lock nut on the front spindle?

Tighten to 217-278 N·m (160-205 lb-ft), per callout B in the diagram.

What torque is specified for the capscrews on the hub assembly?

Callout C specifies tightening to 4-6 N·m (35-53 lb-in).

What thrust washers are used in this front hub assembly?

Three types are listed: a steel thrust washer (item 15), a plastic thrust washer (item 16), and a splined thrust washer (item 17).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “JUICE”/ Photo supermotors.net/registry/media/904845

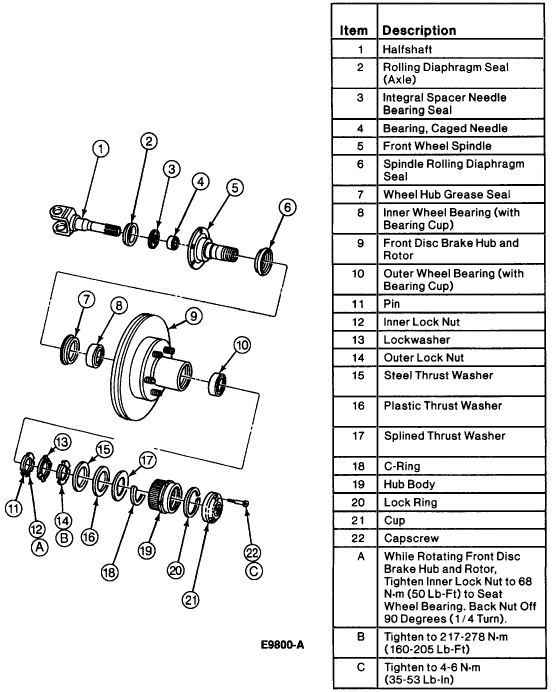

Ford Bronco/F-150 4x4 Front Hub & Wheel Bearing Exploded Diagram w/ Torque Specs

Exploded view of front hub, spindle, and bearings with numbered part legend and torque notes

‹ ›

Exploded parts diagram of the front wheel hub, spindle, and bearings with a numbered item legend and torque specifications.

AI caption January 2012 · Photo 72 of 561

This document is an exploded parts diagram of a front axle/wheel hub assembly, showing the halfshaft, spindle, wheel bearings, disc brake hub and rotor, lock nuts, thrust washers, and manual locking hub components. Numbered callouts 1 through 22 in the illustration correspond to a legend table listing each part: halfshaft, rolling diaphragm seal (axle), integral spacer needle bearing seal, caged needle bearing, front wheel spindle, spindle rolling diaphragm seal, wheel hub grease seal, inner and outer wheel bearings with bearing cups, front disc brake hub and rotor, pin, inner lock nut, lockwasher, outer lock nut, steel/plastic/splined thrust washers, C-ring, hub body, lock ring, cup, and capscrew. Lettered callouts provide torque specifications: (A) while rotating the front disc brake hub and rotor, tighten the inner lock nut to 68 N·m (50 lb-ft) to seat the wheel bearing, then back the nut off 90 degrees (1/4 turn); (B) tighten the outer lock nut to 217-278 N·m (160-205 lb-ft); (C) tighten the capscrews to 4-6 N·m (35-53 lb-in). The figure carries the reference code E9800-A. A reader can learn assembly order, part names, and the bearing preload/torque procedure for servicing the front hub and wheel bearings.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for the inner lock nut when seating the front wheel bearing?: While rotating the front disc brake hub and rotor, tighten the inner lock nut to 68 N·m (50 lb-ft) to seat the wheel bearing, then back the nut off 90 degrees (1/4 turn).
What is the torque for the outer lock nut on the front spindle?: Tighten to 217-278 N·m (160-205 lb-ft), per callout B in the diagram.
What torque is specified for the capscrews on the hub assembly?: Callout C specifies tightening to 4-6 N·m (35-53 lb-in).
What parts are shown in the front hub exploded diagram?: Items 1-22 include the halfshaft, rolling diaphragm seal (axle), integral spacer needle bearing seal, caged needle bearing, front wheel spindle, spindle rolling diaphragm seal, wheel hub grease seal, inner and outer wheel bearings with cups, front disc brake hub and rotor, pin, inner lock nut, lockwasher, outer lock nut, steel/plastic/splined thrust washers, C-ring, hub body, lock ring, cup, and capscrew.
What thrust washers are used in this front hub assembly?: Three types are listed: a steel thrust washer (item 15), a plastic thrust washer (item 16), and a splined thrust washer (item 17).
