What wire color feeds the door courtesy lamp switches on the Ford Probe?

Wire 300 R/W (red/white) runs through splice S258 to C306 (left door courtesy lamp switch) and C307 (right door courtesy lamp switch); both switches close with the door open.

How does the low washer fluid indicator work per this diagram?

The cluster's low washer fluid indicator connects through C241 and C206 on wire 245 P to the washer fluid level switch at C133. The switch closes with low fluid level, grounding through wire 52 BK to G103, illuminating the indicator.

When does the luggage compartment lamp switch close?

The luggage compartment lamp switch closes with the liftgate open. It is fed on wire 301 R via C423, C200, S405, and C405, with ground at S400/G400 (see grounds page 10-13).

Which connectors are involved in the anti-theft portion of the door ajar circuit?

A dashed box labeled 'WITH ANTI-THEFT ONLY' shows connections through connector C204 (and C213) in the door ajar indicator circuit.

Home/ Registry/ Ford/ Probe/ 1993-1997/ “parts”/ Photo supermotors.net/registry/media/930540

1994 Ford Probe Instrument Cluster Wiring Diagram - Door Ajar & Washer Fluid

Ford wiring diagram for courtesy lamps, central processing unit and washer fluid level switch

‹ ›

Reference · 1993-1997 ProbeAll 65 wiring diagrams

Ford Probe C241 Instrument Cluster Connector Pinout - Wire Colors & Functions

Ford Probe Instrument Cluster Connector C240 Pinout - Wire Colors & Functions

1994 Ford Probe Instrument Cluster Wiring Diagram - ABS, TCIL, Anti-Theft

1994 Ford Probe Instrument Cluster Wiring Diagram - Door Ajar & Washer Fluid

1994 Ford Probe Instrument Cluster Wiring Diagram - Warning Indicators & Air Bag

Ford Probe Instrument Cluster & VSS Wiring Diagram - 2.0L/2.5L Speedometer

Ford Probe Instrument Cluster Wiring Diagram - Tachometer & Oil Pressure Gauge

1994 Ford Probe Instrument Cluster Wiring Diagram - Fuel & Temp Gauge Circuits

65wiring diagrams1993-1997 Ford Probe More reference

3-Position Rotary Selector Switch: Contact Positions #1 & #2 Diagram

Brochure

Schematic

Ford 2012 MY vehicle emission control information label for a 5.0L gasoline engine

Spec plate

1993 Ford Probe Two Speed Cooling Fan Circuit Operation - 2.0L & 2.5L

Service procedure

1993 Ford Probe Compound Turbo & Intercooler Plumbing Routing Diagram

Vacuum routing

1993-94 Ford Probe Engine Bay Component Location Diagram - Relays, Fans, Grounds

Exploded parts

Manual transaxle specifications screen with lubricant grade, 2.0L and 2.5L gear ratios and differential shim s

Manual page

Blueprint

Torque spec

Ford wiring diagram showing luggage and door courtesy lamps, the central processing unit and washer fluid level switch with color-coded wires.

Part of 1993-1997 Ford Probe Wiring Diagrams

AI caption July 2012 · Photo 425 of 676

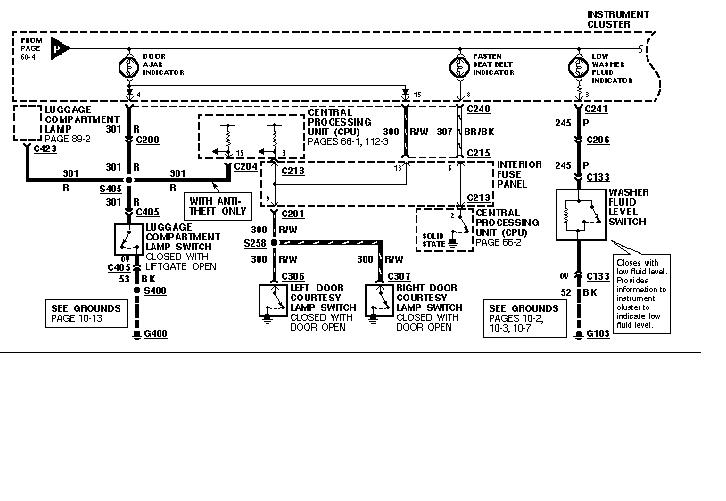

This is one page of a multi-page factory-style wiring diagram covering the instrument cluster warning indicator circuits of a Ford Probe. The diagram shows three cluster indicators: the door ajar indicator, the fasten seat belt indicator, and the low washer fluid indicator, with feed continuing from page 60-4. The door ajar circuit runs on wire 300 R/W through connectors C201, C204, C213, and splice S258 to the left (C306) and right (C307) door courtesy lamp switches, which close when a door is open; an anti-theft-only branch is noted. A related branch on 301 R feeds the luggage compartment lamp (page 89-2) through C423, C200, S405, and C405 to the luggage compartment lamp switch (closed with liftgate open), grounding at S400/G400 (grounds page 10-13). The fasten seat belt indicator connects via C240 on wire 307 BR/BK through C215, the interior fuse panel, and C213 to a solid-state output of the Central Processing Unit (CPU, pages 66-1, 66-2, 112-3), with grounds referenced on pages 10-2, 10-3, and 10-7. The low washer fluid indicator connects through C241 and C206 on wire 245 P to the washer fluid level switch at C133, which closes with low fluid, grounding via 52 BK at G103.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What wire color feeds the door courtesy lamp switches on the Ford Probe?: Wire 300 R/W (red/white) runs through splice S258 to C306 (left door courtesy lamp switch) and C307 (right door courtesy lamp switch); both switches close with the door open.
How does the low washer fluid indicator work per this diagram?: The cluster's low washer fluid indicator connects through C241 and C206 on wire 245 P to the washer fluid level switch at C133. The switch closes with low fluid level, grounding through wire 52 BK to G103, illuminating the indicator.
What controls the fasten seat belt indicator?: The fasten seat belt indicator connects via C240 on wire 307 BR/BK through C215, the interior fuse panel, and C213 to a solid-state output of the Central Processing Unit (CPU), shown on pages 66-2 (also 66-1, 112-3).
When does the luggage compartment lamp switch close?: The luggage compartment lamp switch closes with the liftgate open. It is fed on wire 301 R via C423, C200, S405, and C405, with ground at S400/G400 (see grounds page 10-13).
Which connectors are involved in the anti-theft portion of the door ajar circuit?: A dashed box labeled 'WITH ANTI-THEFT ONLY' shows connections through connector C204 (and C213) in the door ajar indicator circuit.
