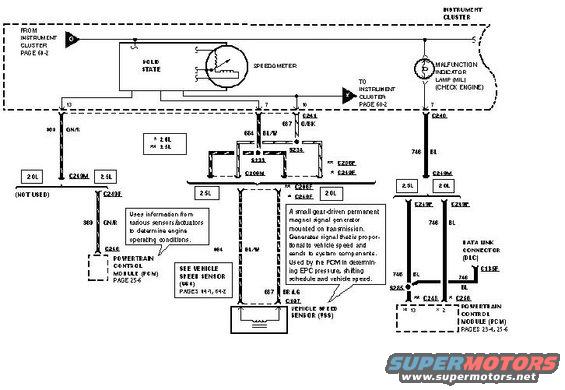

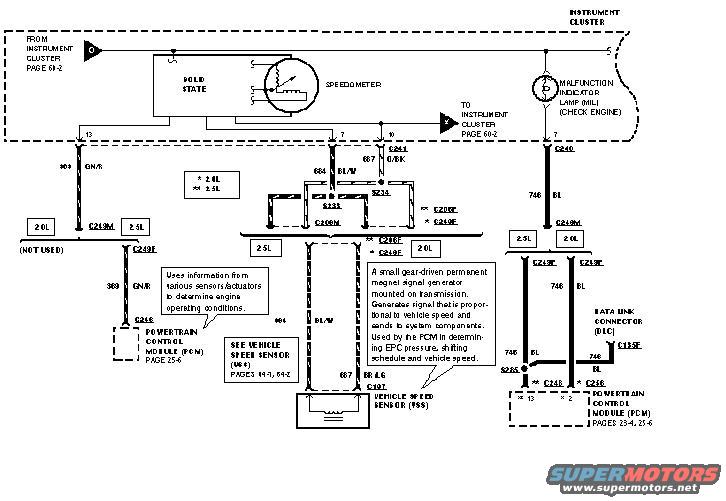

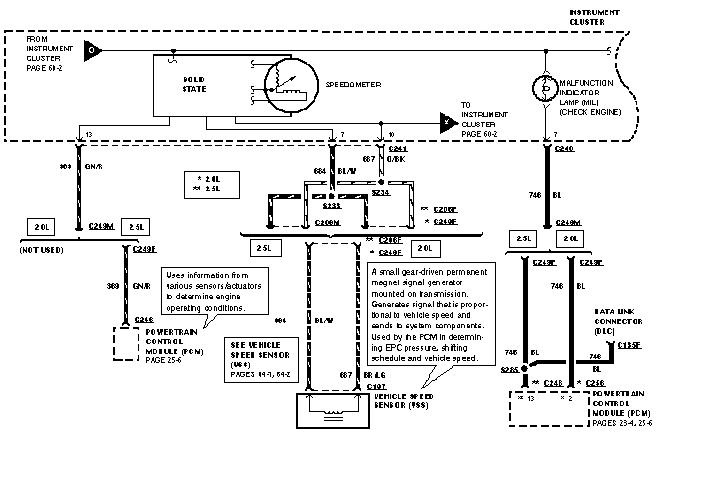

Speedometer circuit wiring diagram with VSS, PCM, check engine M…

2000 Mazda 626 ES 2.5L Engine Performance Wiring Diagram - PCM Pinout (1 of 3) Ford Probe PCM Connector Pinouts C248, C246, C247 - Wiring Diagram & Pin Table 1993 Ford Probe PCM Connector Pinouts C247 C248 C249 - Wiring Diagram Speedometer circuit wiring diagram with VSS, PCM, check engine MIL and data link connector 1996 Ford Probe Instrument Cluster Wiring Diagram - Tach, Oil Gauge, Alternator 1996 Ford Probe Instrument Cluster Wiring Diagram - Fuel & Temp Gauge Circuits 1993-1994 Ford Probe 2.5L Cooling Fan Wiring Diagram - Relays, PCM & Fuses 1994 Ford Probe 2.5L Condenser Fan & A/C Clutch Wiring Diagram 65wiring diagrams1993-1997 Ford Probe More reference Brochure3-Position Rotary Selector Switch: Contact Positions #1 & #2 Diagram SchematicTachometer Output from Coil Negative - 1N4004 Diode Rev Counter Schematic Spec plateFord 2012 MY vehicle emission control information label for a 5.0L gasoline engine Service procedure1993 Ford Probe Two Speed Cooling Fan Circuit Operation - 2.0L & 2.5L Vacuum routing1993 Ford Probe Compound Turbo & Intercooler Plumbing Routing Diagram Exploded parts1993-94 Ford Probe Engine Bay Component Location Diagram - Relays, Fans, Grounds Manual pageManual transaxle specifications screen with lubricant grade, 2.0L and 2.5L gear ratios and differential shim s BlueprintHub Spacer Ring Blueprint - Ø77.75 OD x Ø72.00 ID x 6.35 Thick (Ford Probe) Torque specConnecting Rod Bolt Torque Specs & Clearances - 8740 Cap Screw Instruction Sheet
