1979 Ford Bronco C-306 LH Fender Apron Connector Wiring Diagram (14405/14401)

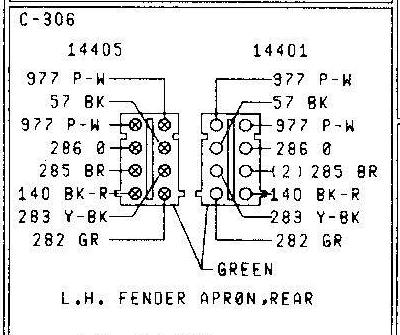

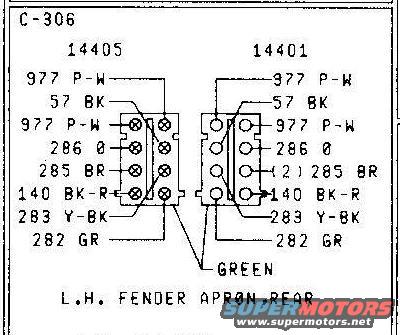

This document is a wiring connector diagram labeled C-306, showing the rear left-hand (L.H.) fender apron connector on a Ford truck/Bronco wiring harness. It depicts two mating connector halves identified by harness numbers 14405 (left half) and 14401 (right half), each drawn as a two-column, four-row block of connector cavities. The pinout is mirrored between the two halves, with the following circuits and wire colors: 977 P-W (pink-white, appearing twice), 57 BK (black), 286 O (orange), 285 BR (brown, noted as "(2)" on the 14401 side indicating two wires), 140 BK-R (black-red), 283 Y-BK (yellow-black), and 282 GR (gray/green). A callout indicates the connector body color is GREEN. A reader can use this diagram to identify the connector location (left fender apron, rear), verify which circuit numbers and wire colors terminate in each cavity, and troubleshoot continuity across the mating halves of the 14405-to-14401 harness junction. The diagram itself carries no date or model-year designation, but it was uploaded as part of a set of wiring diagrams for a 1979 Ford Bronco.
