How many pins does the RABS module harness connector have?

The diagram shows a 14-pin connector, with pins 9–14 on the top row and pins 1–8 on the bottom row.

Where is Pin #1 located on the module harness connector?

Pin #1 is at the bottom right corner of the connector when viewed from the pin (harness) side, as indicated by the arrow in the diagram.

Where is Pin #9 located on the connector?

Pin #9 is at the top right corner of the connector, directly above Pin #1, as shown by the callout arrow.

How are the pins numbered in this connector pin view?

The top row reads 14, 13, 12, 11, 10, 9 from left to right (with a keyway gap between 12 and 11), and the bottom row reads 8, 7, 6, 5, 4, 3, 2, 1 from left to right.

Is this diagram shown from the harness side or the module side?

The caption labels it 'Module Harness Connector – Pin View,' meaning it depicts the connector face pin view.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ 1990 Ford Bronco/ Photo supermotors.net/registry/media/982293

Ford RABS Module Harness Connector Pin View Diagram - Pins 1 & 9 (1990 Bronco)

Module harness connector pin view showing numbered pins 1-14 with Pin 1 and Pin 9 callouts and ground symbol

‹ ›

Module harness connector pinout diagram showing the numbered pin layout in connector view.

AI caption May 2013 · Photo 559 of 704

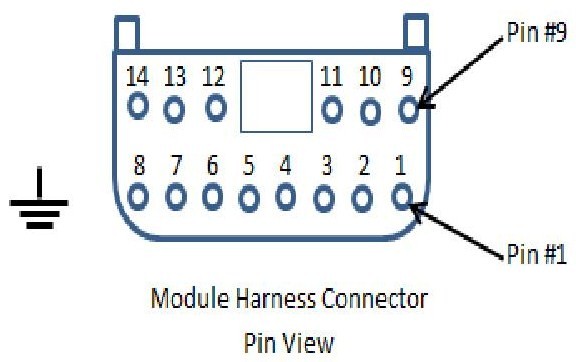

This document is a pin-view diagram of a 14-pin module harness connector, uploaded as part of a Rear Anti-lock Brake System (RABS) reference set for a 1990 Ford Bronco. The illustration shows the connector face as viewed from the harness side, with two rows of round pin cavities: the top row numbered 14, 13, 12, 11, 10, 9 (with a rectangular keyway/blank space between pins 12 and 11) and the bottom row numbered 8, 7, 6, 5, 4, 3, 2, 1. Two arrows call out specific pin locations: Pin #9 at the upper right corner and Pin #1 at the lower right corner. A chassis ground symbol is drawn to the left of the connector. The caption reads "Module Harness Connector – Pin View." A reader can use this diagram to correctly identify pin numbering and orientation when probing or testing the module harness connector (per the filename, particularly pins 1, 9, and ground for RABS diagnostics). No wire colors, part numbers, torque values, or year/model applicability statements are printed on the document itself.
