94 F-Series

From 1996 Ford Bronco “Buckin Bronco”, documented by Kingfish999.

46 photos
← Back to this vehicle

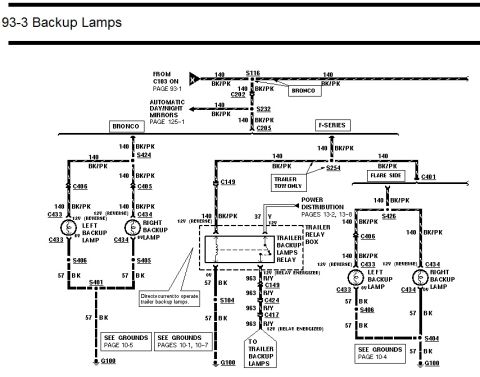

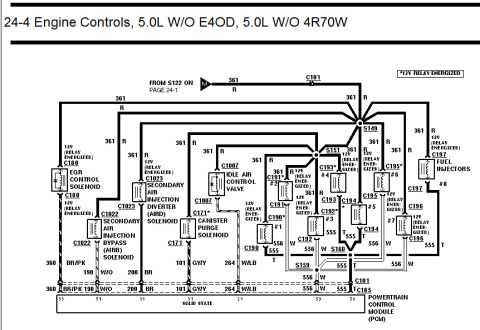

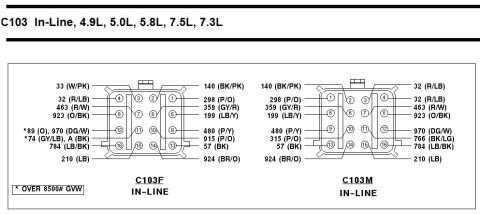

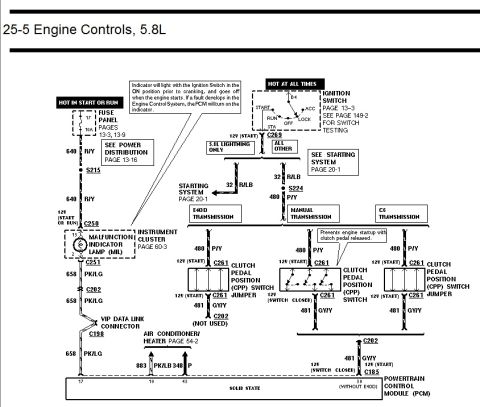

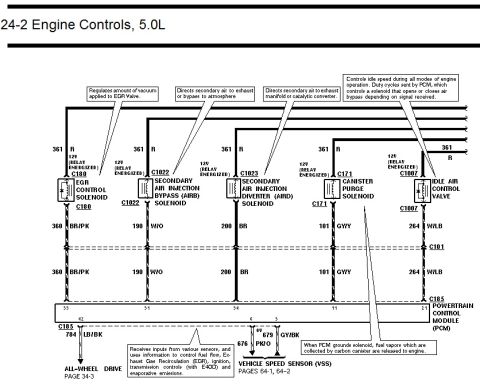

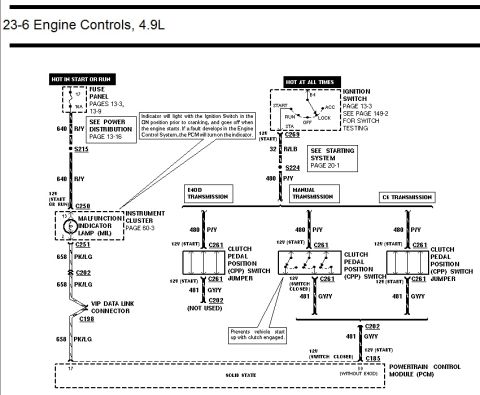

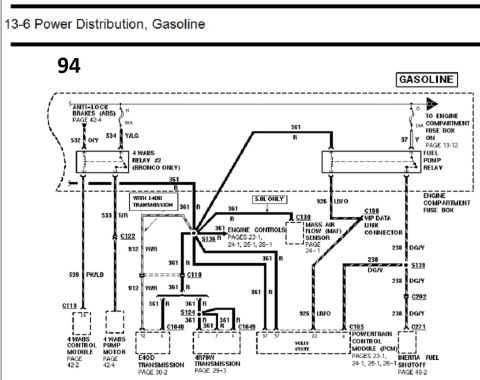

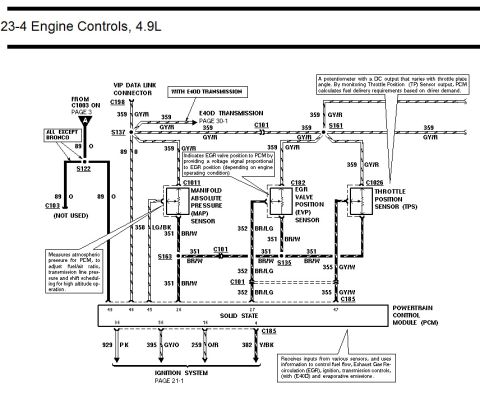

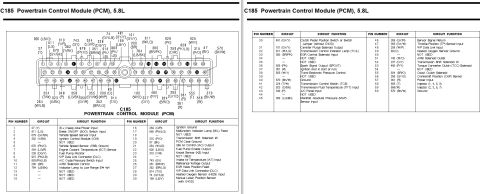

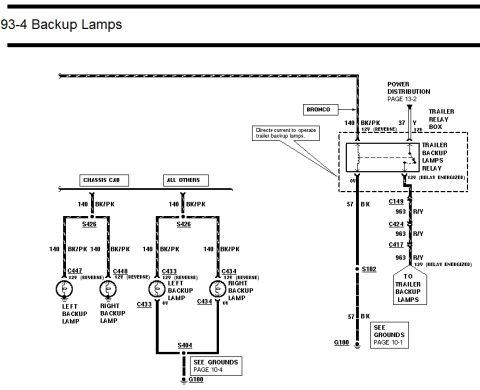

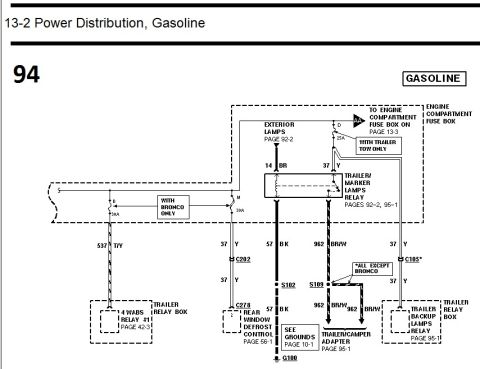

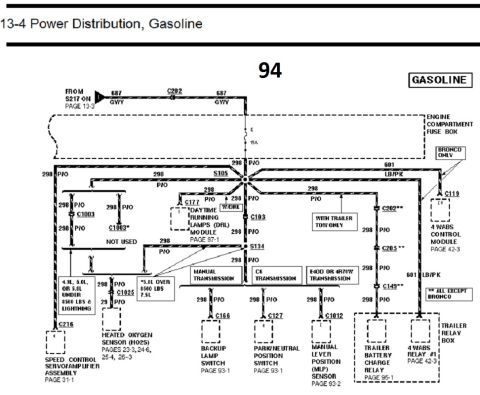

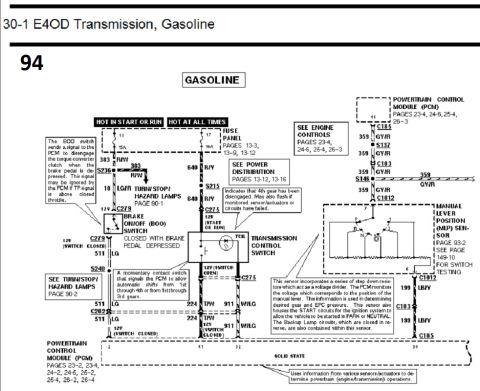

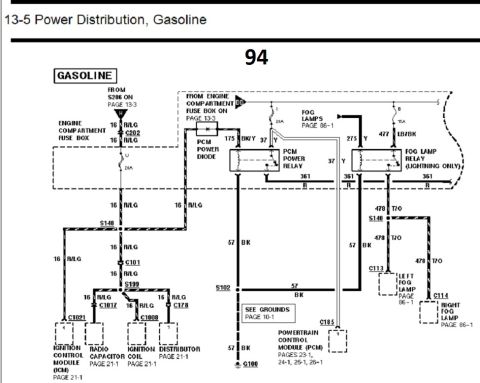

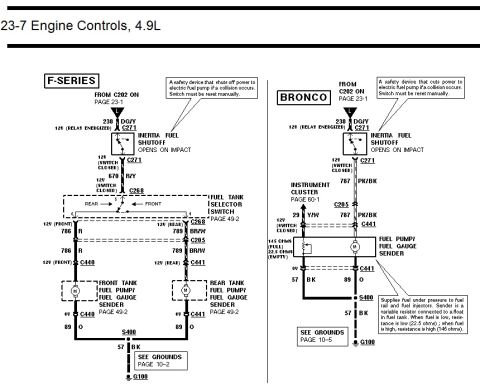

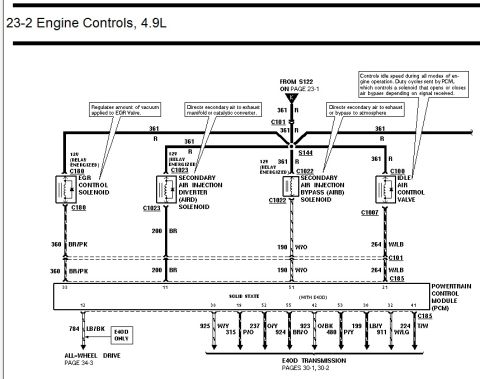

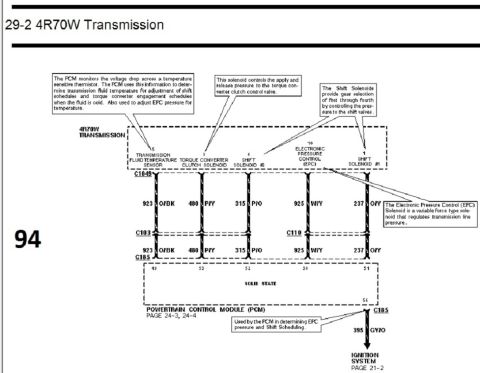

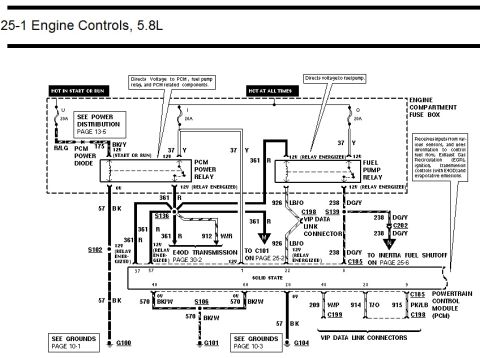

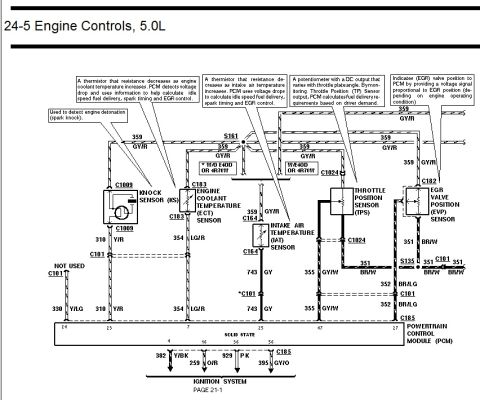

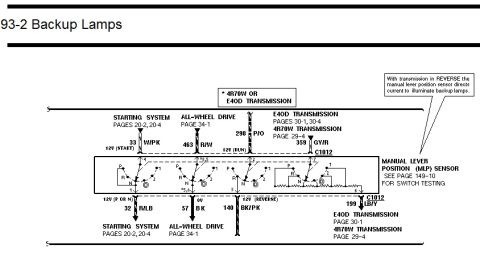

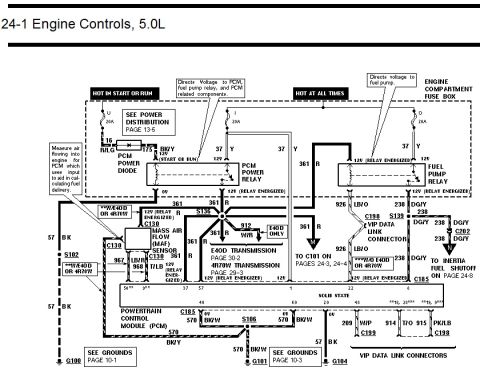

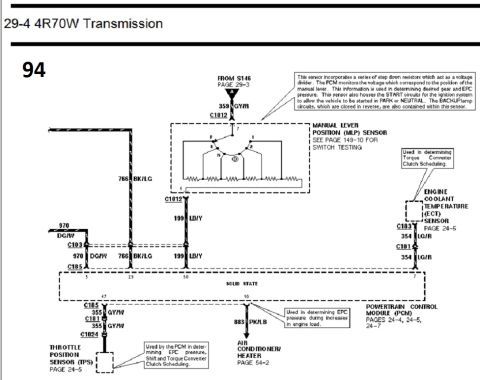

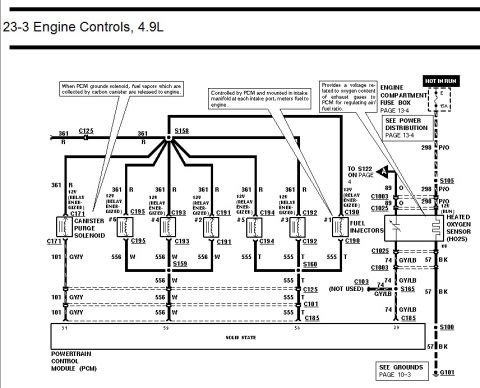

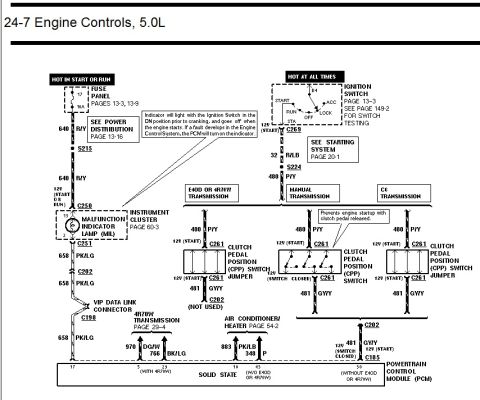

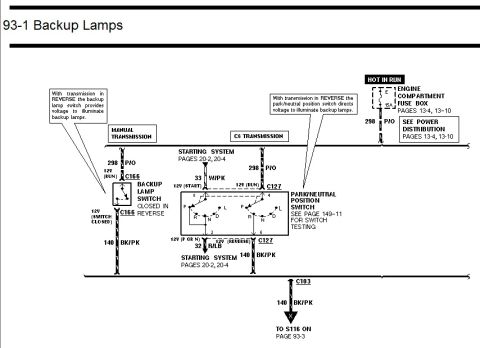

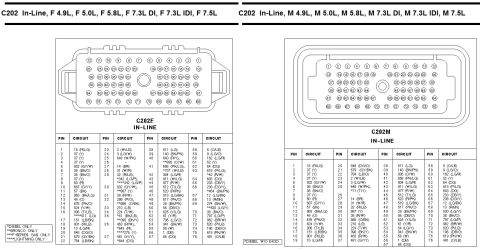

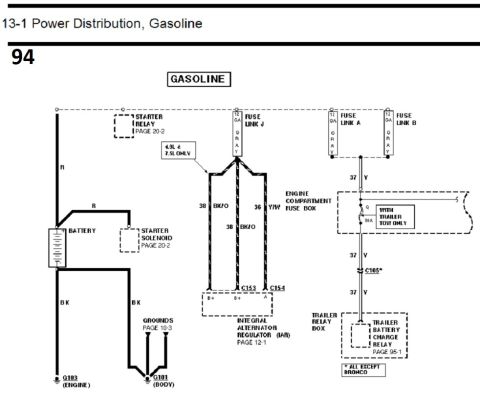

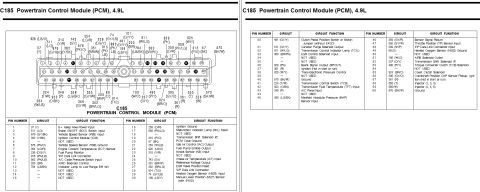

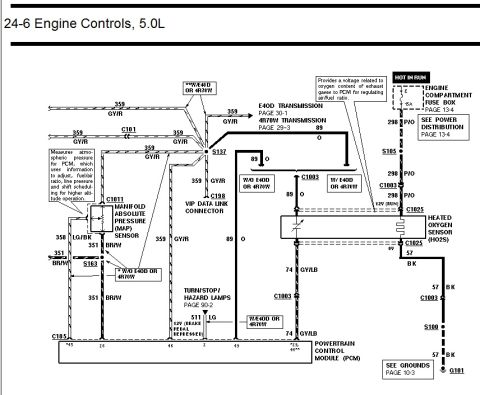

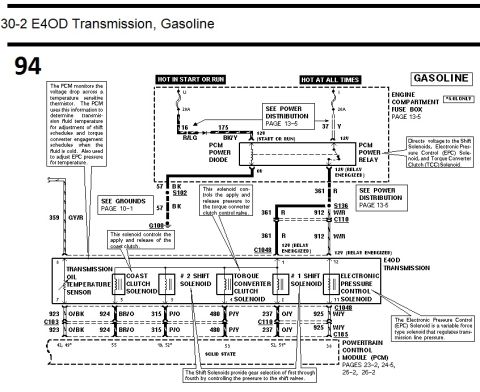

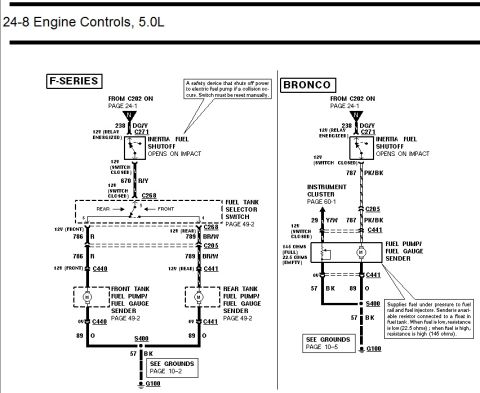

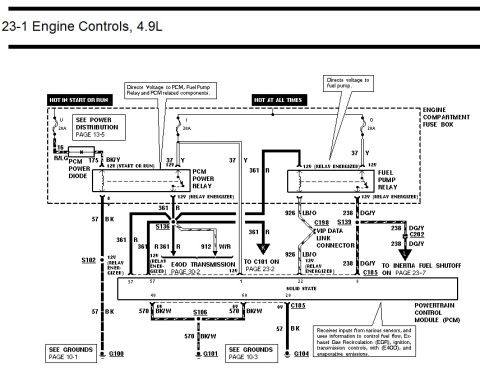

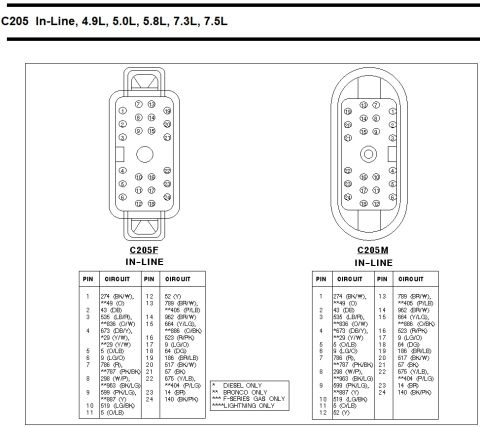

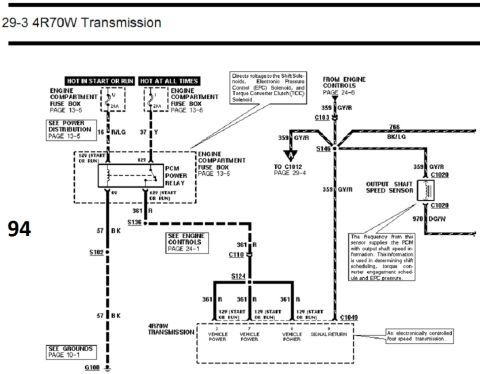

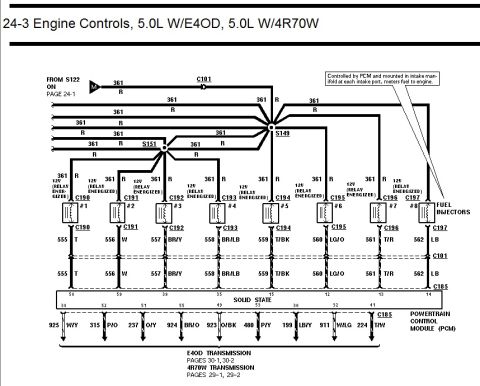

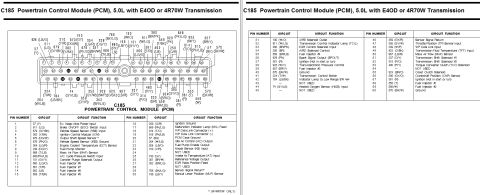

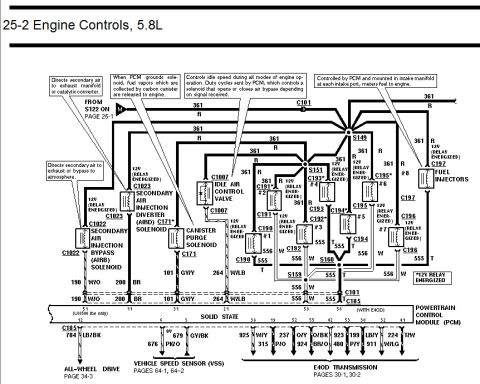

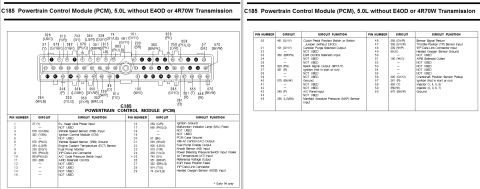

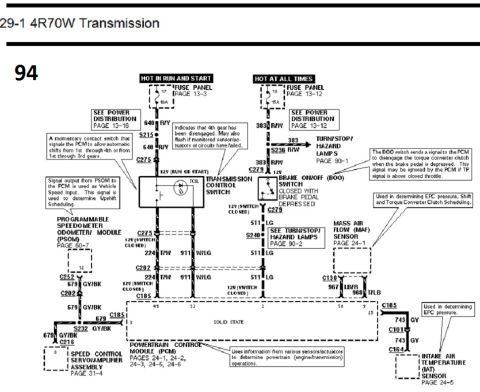

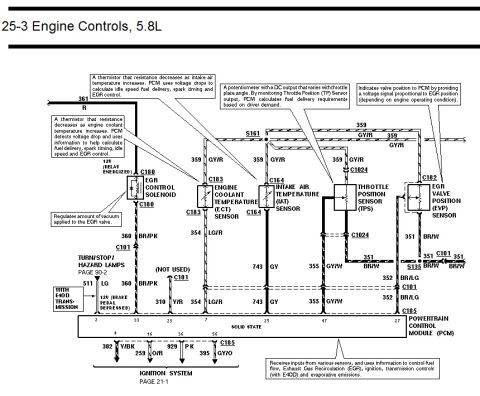

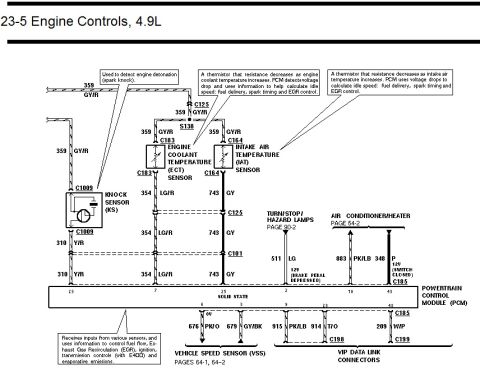

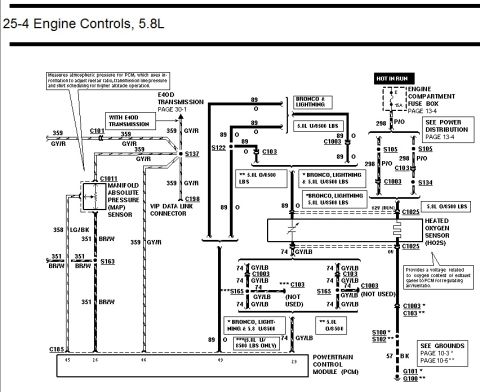

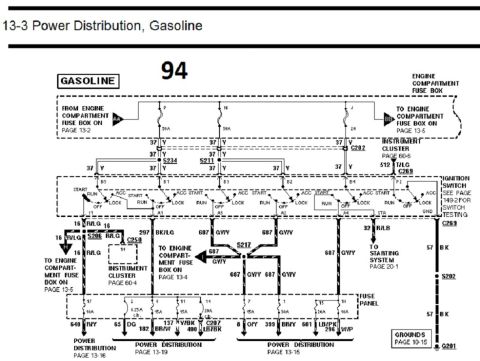

1996 Ford Bronco - Wiring reference page headed "C101 In-Line, 4.9L, 5.0L, 5.8L, 7.5L" showing the 42-cavity C101F female and C101M male bulkhead connector fa… 1996 Ford Bronco - Wiring diagram page headed "C103 In-Line, 4.9L, 5.0L, 5.8L, 7.5L, 7.3L" showing the 16-cavity C103F female and C103M male connector faces w… 1996 Ford Bronco - Two-page pin-out chart headed "C185 Powertrain Control Module (PCM), 4.9L," showing the 60-pin PCM connector face with numbered cavities an… 1996 Ford Bronco - Two-page pin-out chart headed "C185 Powertrain Control Module (PCM), 5.0L with E4OD or 4R70W Transmission," showing the 60-pin PCM connecto… 1996 Ford Bronco - Scanned Ford wiring diagram sheet titled "C185 Powertrain Control Module (PCM), 5.0L without E4OD or 4R70W Transmission," showing the PCM c… 1996 Ford Bronco - Two-page pin-out chart headed "C185 Powertrain Control Module (PCM), 5.8L," with a drawing of the 60-pin PCM connector, its numbered caviti… 1996 Ford Bronco - Two-page "C202 In-Line" wiring reference covering 4.9L through 7.5L gas and 7.3L DI/IDI diesel applications, showing the C202F female and C… 1996 Ford Bronco - Wiring diagram page headed "C205 In-Line, 4.9L, 5.0L, 5.8L, 7.3L, 7.5L" showing the oval 24-cavity C205F female and C205M male connector fa… 1996 Ford Bronco - 1994 4R70W transmission wiring diagram showing the PCM, transmission control switch, BOO switch, MAF sensor and connectors. 1996 Ford Bronco - 1994 4R70W transmission wiring diagram showing shift solenoids, torque converter clutch solenoid, EPC solenoid and fluid temperature sensor… 1996 Ford Bronco - Wiring schematic for the Ford 4R70W automatic transmission showing PCM power relay feed, EPC/TCC solenoid circuits and the output shaft spe… 1996 Ford Bronco - Wiring diagram for the 4R70W transmission showing the manual lever position sensor, throttle position sensor and PCM circuits with color-co… 1996 Ford Bronco - Wiring diagram for the E4OD gasoline transmission showing the brake on/off switch, transmission control switch and PCM connections. 1996 Ford Bronco - Wiring diagram for the E4OD gasoline transmission detailing shift solenoids, torque converter clutch and electronic pressure control circui… 1996 Ford Bronco - Power distribution wiring diagram showing the battery, starter relay, fuse links and integral alternator regulator circuits. 1996 Ford Bronco - Power distribution wiring diagram showing exterior lamp, trailer marker and backup lamp relay circuits with color-coded wires. 1996 Ford Bronco - 1994 gasoline power-distribution wiring diagram (page 13-3), duplicate of media 1116056, showing ignition switch positions feeding fuse box… 1996 Ford Bronco - Power distribution wiring diagram routing power to daytime running lamps, oxygen sensor, neutral switches and 4WABS control module. 1996 Ford Bronco - Power distribution wiring diagram showing the PCM power relay, ignition control module, fog lamp relay and related fog lamp circuits. 1996 Ford Bronco - Power distribution wiring diagram showing the fuel pump relay, mass air flow sensor, ABS and transmission engine-control circuits. 1996 Ford Bronco - Wiring diagram for backup lamps showing backup lamp switch and park/neutral position switch circuits for manual and C6 transmissions. 1996 Ford Bronco - Wiring diagram for backup lamps showing manual lever position sensor and starting/all-wheel-drive circuits for 4R70W/E4OD transmission. 1996 Ford Bronco - Wiring diagram for backup lamps showing Bronco and F-Series left and right backup lamp circuits with trailer backup lamp relay. 1996 Ford Bronco - Wiring diagram for backup lamps showing left and right backup lamp circuits and trailer backup lamps relay with color-coded wires. 1996 Ford Bronco - Ford 4.9L engine controls wiring diagram showing PCM power relay, fuel pump relay and engine compartment fuse box with color-coded wires. 1996 Ford Bronco - Ford 4.9L engine controls wiring diagram of EGR control, secondary air injection diverter/bypass and idle air control valve circuits. 1996 Ford Bronco - Ford 4.9L engine controls wiring diagram showing canister purge solenoid, fuel injector and heated oxygen sensor circuits with color codes. 1996 Ford Bronco - Ford 4.9L engine controls wiring diagram of MAP, EGR valve position (EVP) and throttle position (TPS) sensor circuits to the PCM. 1996 Ford Bronco - Ford 4.9L engine controls wiring diagram showing knock sensor, ECT, IAT and vehicle speed sensor circuits with color-coded wires. 1996 Ford Bronco - Ford 4.9L engine controls wiring diagram of ignition switch, malfunction indicator lamp and clutch pedal position switch circuits. 1996 Ford Bronco - Ford 4.9L engine controls wiring diagram showing inertia fuel shutoff, fuel selector and fuel pump/gauge sender circuits for F-Series and B… 1996 Ford Bronco - Ford 5.0L engine controls wiring diagram of PCM power relay, mass air flow sensor and fuel pump relay circuits with color-coded wires. 1996 Ford Bronco - Ford 5.0L engine controls wiring diagram of EGR, secondary air injection, canister purge and idle air control valve circuits. 1996 Ford Bronco - Ford 5.0L engine controls wiring diagram showing eight fuel injector circuits to the PCM with connector and pin identifiers. 1996 Ford Bronco - Ford 5.0L engine controls wiring diagram of fuel injectors, EGR, air injection, canister purge and idle air control circuits. 1996 Ford Bronco - Ford 5.0L engine controls wiring diagram showing knock sensor, ECT, IAT, throttle position and EGR valve position sensor circuits. 1996 Ford Bronco - Ford 5.0L engine controls wiring diagram of MAP sensor, heated oxygen sensor and turn/stop/hazard lamp circuits to the PCM. 1996 Ford Bronco - Ford 5.0L engine controls wiring diagram showing ignition switch, malfunction indicator lamp and clutch pedal position switch circuits. 1996 Ford Bronco - Ford 5.0L engine controls wiring diagram of inertia fuel shutoff, fuel selector and fuel pump/gauge sender circuits for F-Series and Bronco. 1996 Ford Bronco - Ford 5.8L engine controls wiring diagram showing PCM power relay, fuel pump relay and engine compartment fuse box circuits. 1996 Ford Bronco - Ford 5.8L engine controls wiring diagram of secondary air injection, canister purge, idle air control and fuel injector circuits. 1996 Ford Bronco - Ford 5.8L engine controls wiring diagram showing EGR control solenoid, ECT, IAT, throttle position and EGR valve position sensor circuits. 1996 Ford Bronco - Ford 5.8L engine controls wiring diagram of MAP sensor and heated oxygen sensor circuits for Bronco and Lightning applications. 1996 Ford Bronco - Ford 5.8L engine controls wiring diagram showing ignition switch, malfunction indicator lamp and clutch pedal position switch circuits. 1996 Ford Bronco - Ford 5.8L engine controls wiring diagram of inertia fuel shutoff, fuel selector and fuel pump/gauge sender circuits for F-Series and Bronco. 1996 Ford Bronco - Ford F-Series VSS wiring diagram showing rear axle sensor, RABS module and programmable speedometer/odometer module (PSOM) circuits.
