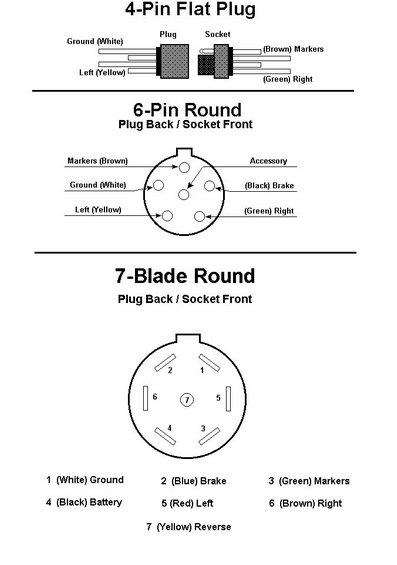

Trailer connector pinouts for 4-pin flat, 6-pin round and 7-blad…

1996 Ford Bronco DRL Wiring Diagram - Daytime Running Lamps Circuit 1996 Ford Bronco 5.8 DPFE/EGR & PCM Wiring Diagram - TP, ECT Sensor Circuits 1996 Ford Bronco Brake Shift Interlock Wiring Diagram - BOO Switch & Actuator Ford Bronco Anti-Theft Module Wiring Pinout - C237 & C238 Connector Diagram 1992 Ford F-Series & Bronco 5.0L E4OD EEC-IV Wiring Diagram - PCM Pinout (MAP) Trailer connector pinouts for 4-pin flat, 6-pin round and 7-blade round plugs with wire colors 1996 Ford Bronco Rear Window Defroster Wiring Diagram - Defrost Circuit 1996 Ford Bronco Ignition Switch Continuity Test Diagram - Terminal Pinout 1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4 1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2 1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit 411wiring diagrams1992-1996 Ford Bronco More reference Exploded parts1996 Ford Bronco Tailgate Torsion Bar Mounts Diagram - Brackets & Torque Spec Service procedureParasitic Battery Draw Test Procedure - Checking for Unwanted Draw (Wilson) Spec plateFord Bronco/F-Series Axle Code Chart - Certification Label Rear Axle Ratios Manual page1996 Ford Bronco Owner's Manual - Checking & Adding Engine Coolant Schematic1996 Ford Bronco Secondary Air Injection (Thermactor) System Diagram - TAB/TAD Blueprint1996 Ford Bronco/F-150 Frame Dimensions - Underbody Misalignment Check Diagram Brochure1992-96 Ford F150 F250 Bronco Dashboard Components Parts Diagram - LMC Truck Vacuum routing1996 Ford Bronco A/C-Heater Vacuum Routing Diagram - HVAC Door Vacuum Motors Fuse chart1996 Ford Bronco Power Distribution Box Diagram - Fuel Pump & PCM Relays Torque specRod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet
