How do I relieve tension on the serpentine belt according to this decal?

Lift counterclockwise using the idler (tensioner) pulley bolt to relieve tension, as shown by the wrench illustration on the tensioner.

Which engines does this belt routing diagram apply to?

It applies to 5.0L and 5.8L engines, per the caption '5.0L & 5.8L DRIVE BELT INSTALLATION.'

What pulleys does the belt route around in this diagram?

Alternator, tensioner, A/C or idler pulley, fan, power steering (P/S), air pump, and crankshaft.

Is the decal bilingual?

Yes, all instructions and pulley labels appear in both English and French (e.g., FAN/VENTILATEUR, AIR PUMP/POMPE À AIR, CRANKSHAFT/VILEBREQUIN).

Does this diagram include an air pump pulley?

Yes, the routing includes an AIR PUMP (POMPE À AIR) pulley at the lower left of the diagram.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ 1989 Ford Bronco/ Photo supermotors.net/registry/media/479144

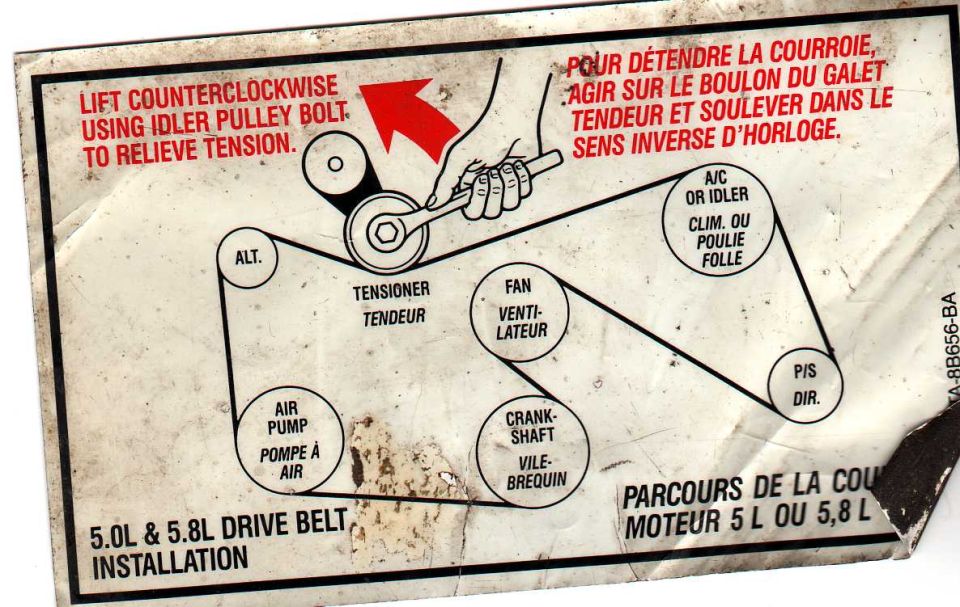

Ford 5.0L & 5.8L Serpentine Drive Belt Routing Diagram Decal - Bronco/F-Series

Underhood serpentine drive-belt routing label for Ford 5.0L and 5.8L engines

‹ ›

Underhood belt-routing decal showing the serpentine drive belt path around the accessories for Ford 5.0L and 5.8L engines.

AI caption January 2007 · Photo 354 of 1134

This document is a scanned underhood decal showing serpentine drive belt installation/routing for Ford 5.0L and 5.8L V8 engines, presented in both English and French. The diagram illustrates the belt path around seven labeled pulleys: alternator (ALT.), tensioner (TENDEUR), A/C or idler (CLIM. OU POULIE FOLLE), fan (VENTILATEUR), power steering (P/S / DIR.), air pump (POMPE À AIR), and crankshaft (VILEBREQUIN). An illustration of a hand with a wrench on the tensioner accompanies the instruction to 'LIFT COUNTERCLOCKWISE USING IDLER PULLEY BOLT TO RELIEVE TENSION,' with the equivalent French instruction printed alongside. The bottom captions read '5.0L & 5.8L DRIVE BELT INSTALLATION' and the French 'PARCOURS DE LA COURROIE MOTEUR 5 L OU 5,8 L' (partially obscured by a torn corner). A Ford-style part number ending in 'TA-8B656-BA' is printed vertically along the right edge, though its prefix is cut off. A reader can learn the correct serpentine belt routing order for these engines and how to release belt tension using the tensioner bolt when installing or replacing the belt. The decal is undated and does not name a specific model year or vehicle.

Is this accurate? Sign in to help verify it.

Frequently asked questions

How do I relieve tension on the serpentine belt according to this decal?: Lift counterclockwise using the idler (tensioner) pulley bolt to relieve tension, as shown by the wrench illustration on the tensioner.
Which engines does this belt routing diagram apply to?: It applies to 5.0L and 5.8L engines, per the caption '5.0L & 5.8L DRIVE BELT INSTALLATION.'
What pulleys does the belt route around in this diagram?: Alternator, tensioner, A/C or idler pulley, fan, power steering (P/S), air pump, and crankshaft.
Is the decal bilingual?: Yes, all instructions and pulley labels appear in both English and French (e.g., FAN/VENTILATEUR, AIR PUMP/POMPE À AIR, CRANKSHAFT/VILEBREQUIN).
Does this diagram include an air pump pulley?: Yes, the routing includes an AIR PUMP (POMPE À AIR) pulley at the lower left of the diagram.
