Handwritten-marked "Removal 101" checklist of fluid draining, ra…

Handwritten-marked "Removal 101" checklist of fluid draining, radiator and wire harness removal steps
Handwritten-marked "Removal 101" checklist of fluid draining, radiator and wire harness removal stepsOriginal file
Handwritten-marked "Removal 101" checklist of fluid draining, radiator and wire harness removal steps

Reference · 1993-1997 ProbeAll 12 service procedures

Handwritten-marked "Removal 101" checklist of fluid draining, radiator and wire harness removal steps 1995 Probe manual transaxle assembly procedure pages with shift lever and reverse lever steps 1993 Ford Probe Two Speed Cooling Fan Circuit Operation - 2.0L & 2.5L Pick-up coil resistance test and ignitor module test steps with wire colors and ohm specs Ford Probe Control Module Bench Test Diagram - Ohmmeter & Test Light Hookup Owner's manual page with HomeLink transceiver training steps 5 through 8 for a garage door opener Ford T92C-6000-AH Breakout Box Adapter Instructions - 1993 Probe 2.0L & 2.5L Turbosmart Boost Tee Instructions - Gate System Removal & Troubleshooting Connecting rod oil clearance instructions listing rod bearing, small end and side clearance figures Pressure regulator valve spring inspection with caliper measuring spring free length HomeLink Universal Transceiver owner's manual page with garage door opener training steps and illustration ARP stud kit head installation procedure sheet with head stud and ARP moly assembly lubricant packet 12service procedures1993-1997 Ford Probe More reference 2000 Mazda 626 2.5L Engine Performance Wiring Diagram - PCM Pins & O2 SensorsWiring diagram 3-Position Rotary Selector Switch: Contact Positions #1 & #2 DiagramBrochure Tachometer Output from Coil Negative - 1N4004 Diode Rev Counter SchematicSchematic AutoAlliance International vehicle certification label dated 11/23/94 with GVWR and GAWR ratingsSpec plate Manual transaxle specifications screen with lubricant grade, 2.0L and 2.5L gear ratios and differential shim sManual page 1995 Ford Probe Multi-Stage Boost Control Vacuum Routing Diagram - Wastegate SetupVacuum routing Hub Spacer Ring Blueprint - Ø77.75 OD x Ø72.00 ID x 6.35 Thick (Ford Probe)Blueprint Exhaust Manifold & Turbocharger Exploded Diagram with Torque Specs (AC210648AB)Exploded parts Connecting Rod Bolt Torque Specs & Clearances - 8740 Cap Screw Instruction SheetTorque spec

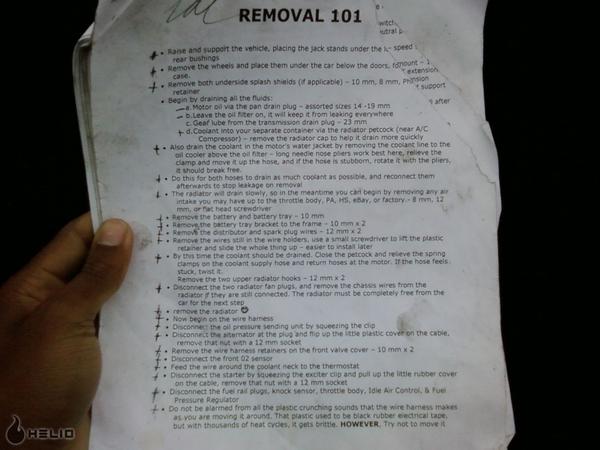

Printed "Removal 101" checklist with step-by-step draining of fluids and removal of the radiator, battery tray, sensors and engine wire harness.

Part of 1993-1997 Ford Probe Service Procedures

AI caption · Photo 52 of 53

{11/ REMOVAL m1
