1990 Ford Bronco / F-150-F-350 Headlamp Assembly Exploded Diagram & Part Numbers

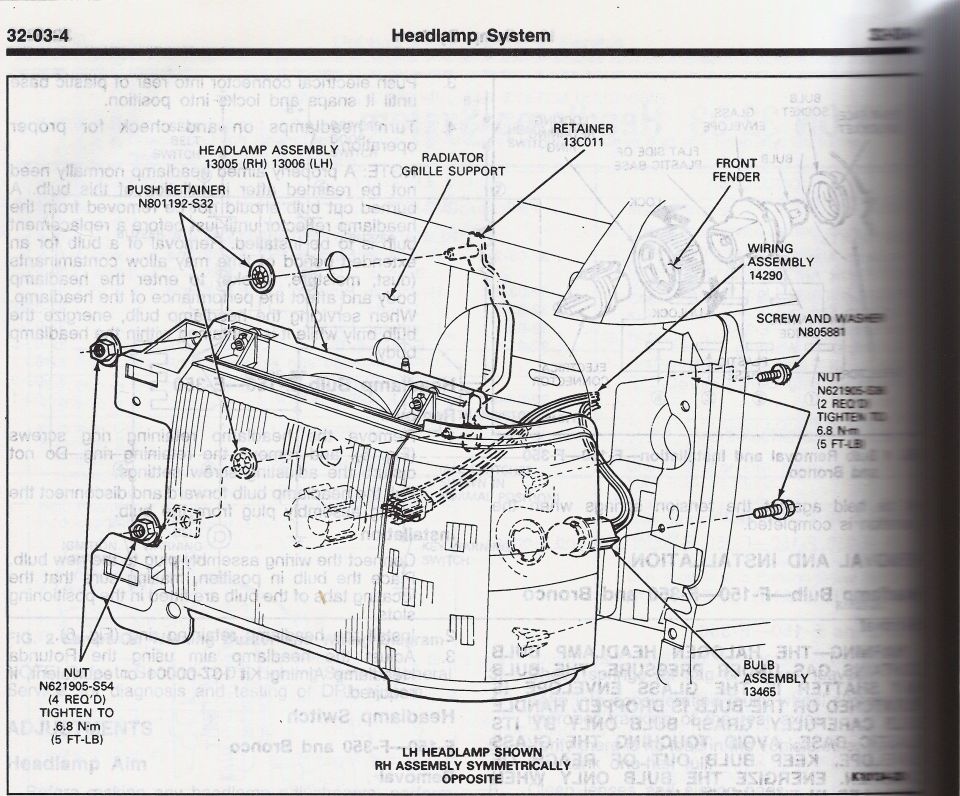

This is a page (32-03-4) from a Ford factory service manual section titled "Headlamp System," showing an exploded parts diagram of the front headlamp assembly for F-150-F-350 trucks and the Bronco. The left-hand (LH) headlamp is shown, with the right-hand (RH) assembly noted as symmetrically opposite. Labeled components include the headlamp assembly (part 13005 RH / 13006 LH), push retainer N801192-S32, retainer 13C011, wiring assembly 14290, bulb assembly 13465, screw and washer N805881, and mounting nuts N621905-S54 (4 required, tightened to 6.8 N·m / 5 ft-lb) plus a second nut variant (2 required, same torque). The diagram also identifies the radiator grille support and front fender as reference points for mounting. Faint bleed-through text from the reverse page includes bulb replacement instructions and a halogen bulb handling warning (gas under pressure, grasp only by the plastic base, avoid touching the glass). A reader can learn the headlamp assembly's component part numbers, fastener locations and torque specifications, and how the assembly mounts between the grille support and front fender.
