What is the Ford part group number for the door glass on this diagram?

The main door glass is labeled 21410, with vent (wing) window glass parts shown as 21412 and 21448.

Which window crank handle parts are for 1980-1986 trucks versus 1987 and later?

The diagram shows a 1987/ handle assembly using 23342, 23370, and 23227, and a separate 1980/86 assembly using 23342, 22624, 23227, and 23370 (square symbols mark 1980/1986-only parts).

What is the part number for the window regulator assembly?

The manual window regulator is shown as assembly group 23200, with regulator arm 23208 and rollers 23240. A power regulator/motor is shown as 23394 with 234A24.

Which door speaker/access cover fits the Bronco and F150/350?

Part 20892 is labeled for F150/350 & Bronco; part 209A20 is for F600/900.

What fastener attaches the belt weatherstrip area shown near 21452?

Screw 351909-S (SS-30) is shown attaching in that area.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/890892

1980-1990 Ford Bronco & F-Series Door Glass, Window Regulator Exploded Diagram

Exploded parts diagram of door glass, regulator, vent window, weatherstrip, and handles with part numbers

‹ ›

Exploded parts breakdown of a door assembly showing glass, regulator, vent window, weatherstripping, and handles with Ford part numbers (P-15409).

AI caption October 2011 · Photo 879 of 1799

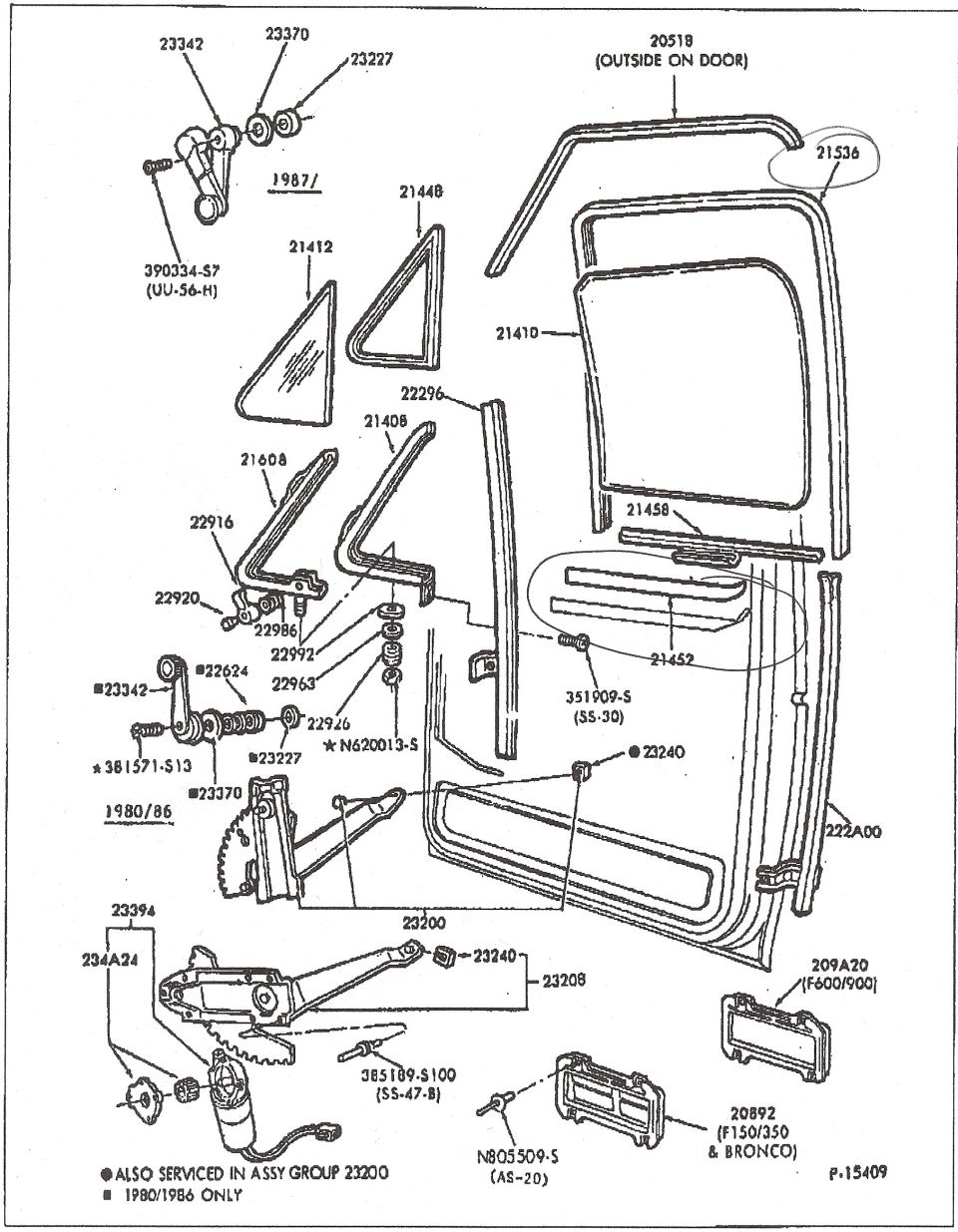

This document is an exploded parts diagram (Ford illustration P.15409) of a front door glass, vent window, and window regulator assembly for Ford full-size trucks and Broncos. It shows the door shell with weatherstripping and moldings (20518 outside-on-door molding, 21536 run/frame, 21410 door glass, 21448 and 21412 vent glass parts, 21408/21608 division bar and channel assemblies, 21458/21452 belt weatherstrips, 22296 glass run), the vent window pivot/latch hardware (22916, 22920, 22986, 22992, 22963, 22926), and two window regulator handle/crank configurations: a 1987-and-later handle setup (23342, 23370, 23227) and a 1980/86 handle setup (23342, 22624, 23227, 23370 with fasteners 381571-S13 and N620013-S). Manual regulator assembly 23200 with 23208 arm and 23240 rollers is shown, along with a power window motor/regulator (23394, 234A24). Speaker/access covers 209A20 (F600/900) and 20892 (F150/350 & Bronco) are also depicted with fasteners N805509-S (AS-20) and 385189-S100 (SS-47-B). Legend notes indicate parts marked with a dot are also serviced in assembly group 23200 and squares denote 1980/1986-only parts. The diagram helps identify Ford basic part group numbers for ordering door glass, regulator, and hardware components for 1980–1987+ trucks/Broncos.
