What is the Ford base part number for the door trim panel in this diagram?

The door trim panel is called out as 23942, marked with a triangle symbol meaning 'refer to soft trim section'.

Which parts in this diagram apply only to 1980/81 models?

Part 30702 and part 238A06 are both labeled '1980/81 ONLY'.

Which parts are marked for 1982/91 applicability?

Parts 62868 and 62876 (courtesy lamp/lens components near the lower door panel) are labeled '1982/91'.

What do the legend symbols on this exploded diagram mean?

■ = serviced only in group 20104; % = also serviced in assy. group; ▲ = refer to soft trim section; † = also serviced in 31012; ● = w/o door mounted speakers; $ = serviced only in assy group 23942.

What fastener is used with the AU-14-J designation?

Fastener N801157-S carries the (AU-14-J) designation in the upper right of the diagram.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/890893

1980-91 Ford Bronco/F-Series Door Trim Panel Exploded Parts Diagram P-19846

Exploded parts diagram of interior trim panels, vents, speaker grilles, and hardware with part numbers

‹ ›

Exploded parts breakdown of interior trim panels, vents, speaker grilles, and fasteners with Ford part numbers (P-19846).

AI caption October 2011 · Photo 880 of 1799

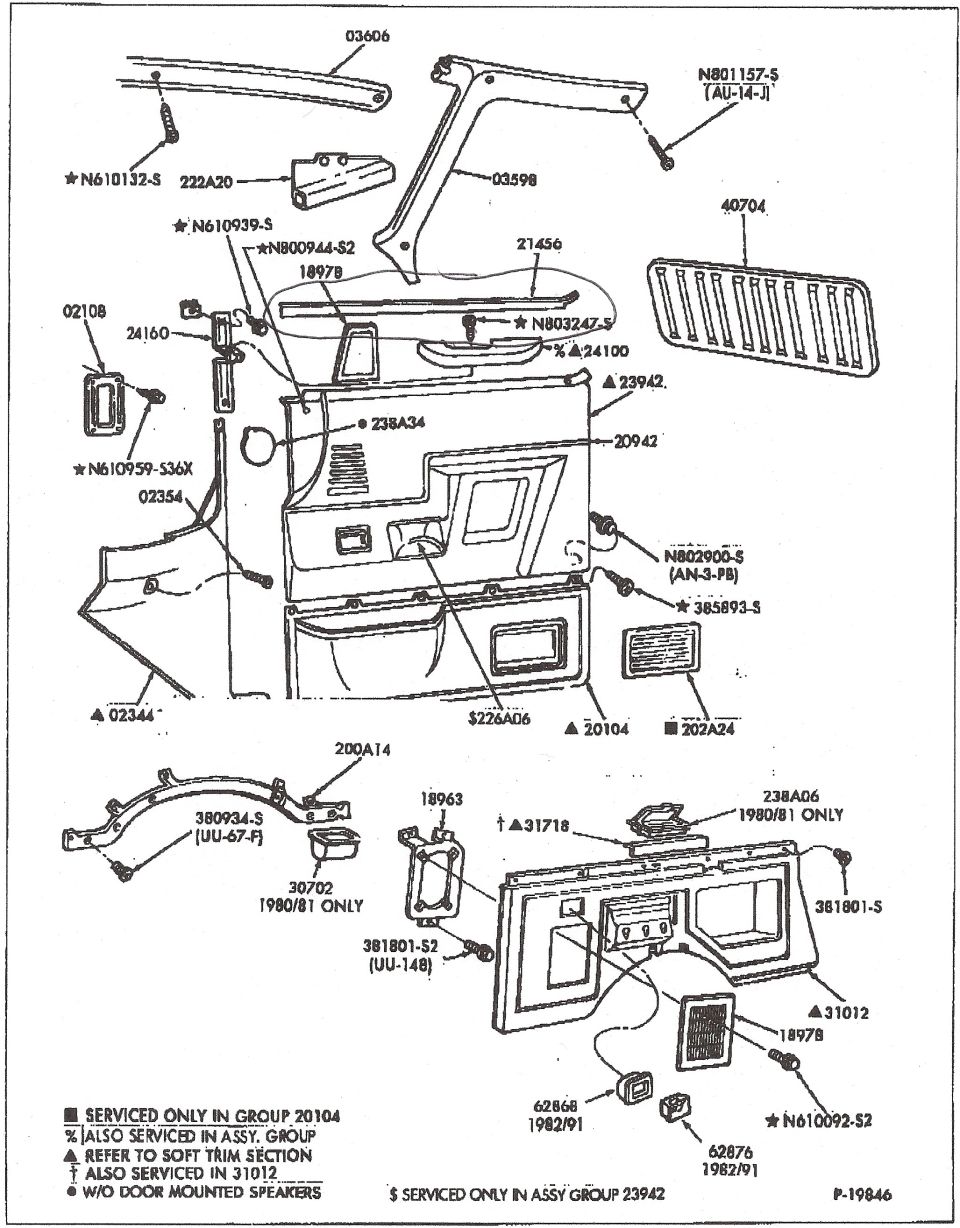

This document is an exploded parts diagram (Ford illustration P-19846) showing the interior door trim panel and related components for a Ford truck/Bronco door. Each part is identified by a Ford base part number callout, including the door trim panel (23942), armrest (24100), window regulator handle area hardware, door pull cup, courtesy lamp/reflector components (62868 and 62876, noted as 1982/91 applicability), speaker grille/vent panel (40704), moldings (03606, 03598), and various fasteners such as N610132-S, N801157-S (AU-14-J), N800944-S2, N803247-S, N802900-S (AN-3-PB), 385893-S, 380934-S (UU-67-F), 381801-S, 381801-S2 (UU-148), and N610092-S2. A legend explains symbols: parts serviced only in group 20104, parts also serviced in an assembly group, parts covered in the soft trim section, parts also serviced in 31012, parts without door-mounted speakers, and parts serviced only in assembly group 23942. Date-range notes on individual parts indicate applicability such as '1980/81 ONLY' (parts 30702 and 238A06) and '1982/91' (parts 62868 and 62876), showing the diagram covers roughly 1980-1991 Ford full-size truck/Bronco doors, which includes the uploader's 1990 Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the Ford base part number for the door trim panel in this diagram?: The door trim panel is called out as 23942, marked with a triangle symbol meaning 'refer to soft trim section'.
Which parts in this diagram apply only to 1980/81 models?: Part 30702 and part 238A06 are both labeled '1980/81 ONLY'.
Which parts are marked for 1982/91 applicability?: Parts 62868 and 62876 (courtesy lamp/lens components near the lower door panel) are labeled '1982/91'.
What do the legend symbols on this exploded diagram mean?: ■ = serviced only in group 20104; % = also serviced in assy. group; ▲ = refer to soft trim section; † = also serviced in 31012; ● = w/o door mounted speakers; $ = serviced only in assy group 23942.
What fastener is used with the AU-14-J designation?: Fastener N801157-S carries the (AU-14-J) designation in the upper right of the diagram.
