MSD TFI Ignition Control Module Pinout Diagram - Ford EEC-IV ICM Connector

MSD ignition control module 0057224 connector pinout PIP SPOUT IDM coil negative
MSD ignition control module 0057224 connector pinout PIP SPOUT IDM coil negativeOriginal file
MSD ignition control module 0057224 connector pinout PIP SPOUT IDM coil negative

Reference · 1987-1991 BroncoAll 61 exploded parts diagrams

PMGR Starter Motor Cutaway & Exploded Diagram - Planetary Gear Reduction Parts Ford Bronco Fuel Pressure Regulator Diagram - O-Rings, Screws & Fuel Rail Ford Bronco & F-Series 4.9L Oil Pressure Gauge & Sender Diagram (33-32-3) MSD TFI Ignition Control Module Pinout Diagram - Ford EEC-IV ICM Connector Ford Bronco Transmission Shift Indicator Cable Installation Diagram - Tilt Column Ford Bronco/F-Series Steering Column & Transmission Indicator Exploded Diagram 1980-91 Ford Bronco/F-Series Door Trim Panel Exploded Parts Diagram P-19846 1980-1990 Ford Bronco & F-Series Door Glass, Window Regulator Exploded Diagram Ford Bronco Tailgate Window Regulator & Motor Exploded Diagram - Rear Glass Clutch pedal and linkage assembly manual page with clutch master cylinder push rod and bushing labeled Repair manual page on mechanical clutch pedal and linkage with cross-shaft lever and master cylinder callouts 61exploded parts diagrams1987-1991 Ford Bronco More reference 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & DistributorWiring diagram Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

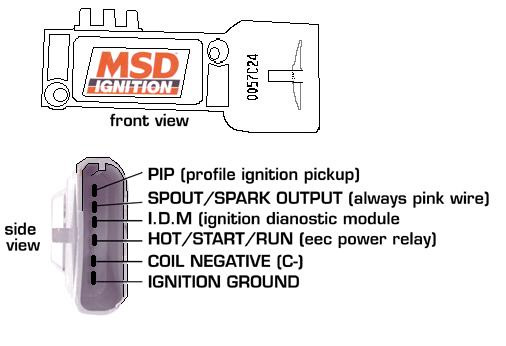

MSD Ignition module (TFI-style) front and side views labeling the 6-pin connector: PIP, SPOUT/spark output, IDM, HOT/start/run, coil negative, and ignition ground.

Part of 1987-1991 Ford Bronco Exploded Parts Diagrams

AI caption · Photo 1088 of 1787

This document is a labeled diagram of an MSD Ignition TFI (Thick Film Ignition) ignition control module (ICM). It shows two views of the module: a front view displaying the MSD Ignition logo and the marking "0057C24" on the module's mounting tab, and a side view of the 6-pin connector with each terminal identified. The six connector pins are labeled top to bottom as: PIP (profile ignition pickup), SPOUT/SPARK OUTPUT (noted as always a pink wire), I.D.M (ignition diagnostic module), HOT/START/RUN (EEC power relay), COIL NEGATIVE (C-), and IGNITION GROUND. A reader can use this diagram to identify the function of each pin on the TFI module connector, which is useful for diagnosing ignition problems, testing module wiring, or wiring an aftermarket ignition system. The document itself states no year, model, or vehicle applicability; it was uploaded to a 1990 Ford Bronco gallery, and TFI modules of this style are used on Ford EEC-IV equipped vehicles of that era. Only the SPOUT wire color (pink) is specified in the diagram.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What are the pin functions on the TFI ignition control module connector?
From top to bottom in the side view: PIP (profile ignition pickup), SPOUT/SPARK OUTPUT, I.D.M (ignition diagnostic module), HOT/START/RUN (EEC power relay), COIL NEGATIVE (C-), and IGNITION GROUND.
What color is the SPOUT/spark output wire on the TFI module?
The diagram states the SPOUT/SPARK OUTPUT wire is always a pink wire.
Which TFI module pin connects to the EEC power relay?
The HOT/START/RUN pin is labeled as connecting to the EEC power relay.
What marking appears on the module in the front view?
The front view shows the MSD Ignition logo and the marking 0057C24 on the module tab.
