What circuit powers the MAF sensor on a 1995 Bronco 5.0L?

Circuit 361 (Red), which carries 12V from the PCM Power Relay when the relay is energized, feeds the Mass Air Flow sensor through connector C130.

What are the MAF sensor signal wire colors and circuit numbers?

Circuit 967 LB/R (light blue/red) and circuit 968 T/LB (tan/light blue), going through connector C130 to PCM pins 50 and 9 (with E4OD or 4R70W).

What fuses power the PCM circuit on the 1995 Bronco 5.0L?

Two 20A fuses (positions U and I), hot in start or run; see Power Distribution page 13-5.

Where do the PCM ground circuits go?

Circuit 57 BK goes through splice S102 to ground G100 (grounds page 10-1), and circuit 570 BK/W goes through splice S106 to ground G101 (grounds page 10-2).

What does the PCM Power Relay do in this circuit?

It directs voltage to the PCM, fuel pump relay, and PCM related components; its output on circuit 361 R shows 12V when the relay is energized.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/942870

1995 Ford Bronco 5.0L Engine Controls Wiring Diagram 24-1 - MAF & PCM Power

1995 Ford Bronco 5.0L engine controls wiring diagram 24-1, PCM power relay and MAF, page 2

‹ ›

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1988-93 Ford Mustang Mass Air EEC-IV Wiring Diagram - Sensor & Injector Pinout

1995 Ford Bronco A/C Heater Wiring Diagram - Clutch Cycling Switch Circuit 54-3

1990 Ford Bronco Manual A/C-Heater Wiring Diagram 54-2 - Blower & AC Clutch

1995 Ford Bronco 5.0L Engine Controls Wiring Diagram 24-1 - MAF & PCM Power

1995 Ford Bronco 5.0L Engine Controls Wiring Diagram (Page 24-1) - PCM & MAF

1990 Ford Bronco 5.0L/5.8L Start Ignition Wiring Diagram - TFI Module (20-4)

1990 Ford Bronco Instrument Cluster Wiring Diagram 60-2 (Gas, No Tachometer)

1990 Ford Bronco Instrument Cluster Wiring Diagram 60-1 - Gas with Tachometer

Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

175wiring diagrams1987-1991 Ford Bronco More reference

Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plug

Spec plate

Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664

Exploded parts

Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPS

Manual page

1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trim

Brochure

Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & C

Blueprint

Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports Labeled

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

1995 Bronco 5.0L engine controls wiring (24-1, second crop) detailing PCM power diode/relay, fuel pump relay, MAF sensor, E40D/4R70W transmission feeds and inertia fuel shutoff.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption September 2012 · Photo 1431 of 1787

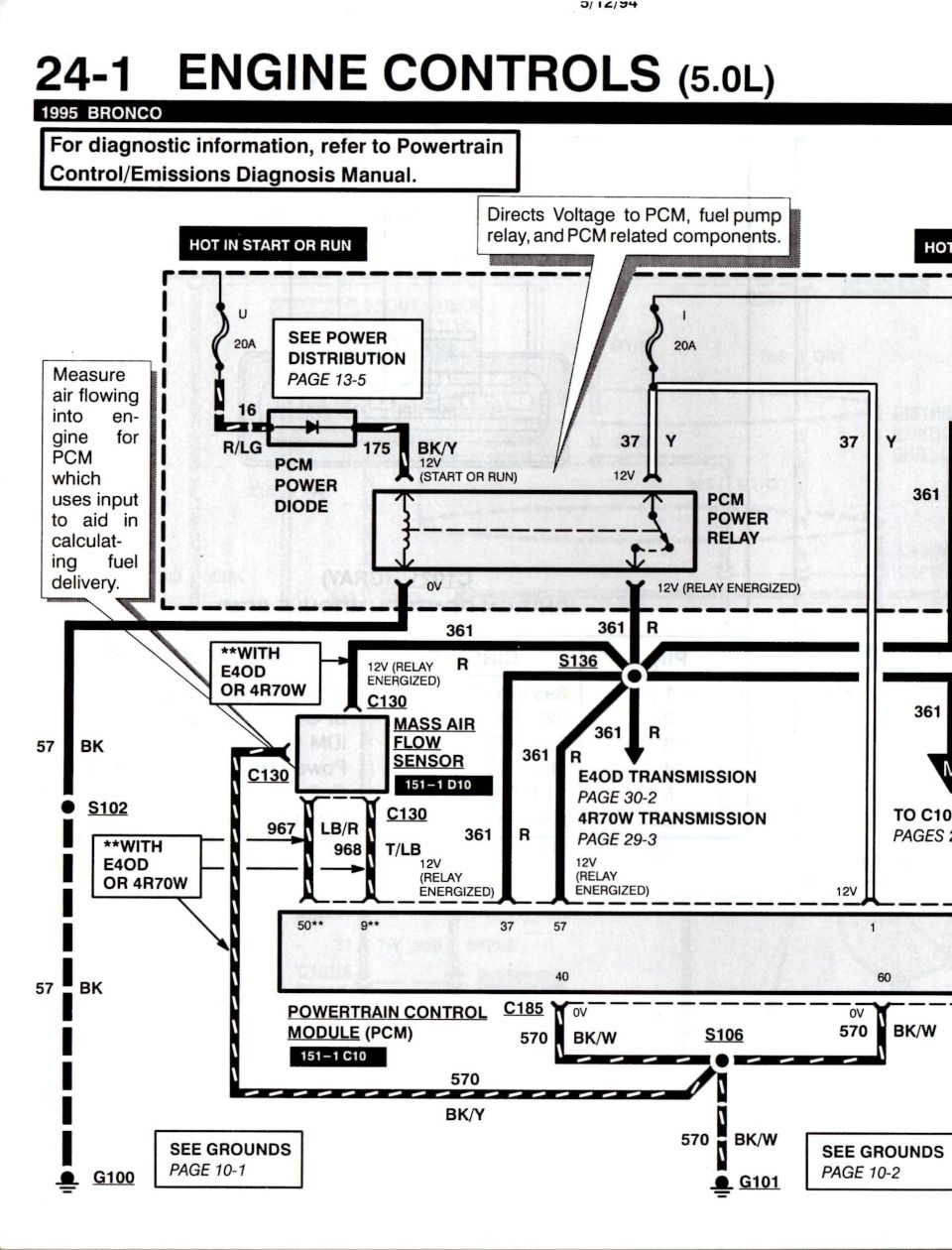

This is page 24-1, "Engine Controls (5.0L)," from the 1995 Ford Bronco electrical/vacuum troubleshooting manual (dated 5/12/94), focused on PCM power distribution and the Mass Air Flow (MAF) sensor circuit. It shows two 20A fuses (positions U and I, hot in start or run) feeding the PCM Power Diode (circuit 16 R/LG to 175 BK/Y) and the PCM Power Relay (circuit 37 Y). The relay output, circuit 361 R (12V relay energized), branches at splice S136 to the MAF sensor via connector C130, to the E4OD transmission (page 30-2) or 4R70W transmission (page 29-3), and to the Powertrain Control Module (PCM, connector location 151-1 C10). MAF sensor signal wiring is shown as circuits 967 LB/R and 968 T/LB into PCM pins 50 and 9 (with E4OD or 4R70W). Grounds are circuit 57 BK through splice S102 to G100 and circuit 570 BK/W through splice S106 to G101, with references to grounds pages 10-1 and 10-2. A note directs readers to the Powertrain Control/Emissions Diagnosis Manual for diagnostic information, and callouts explain the MAF sensor's role in calculating fuel delivery.
