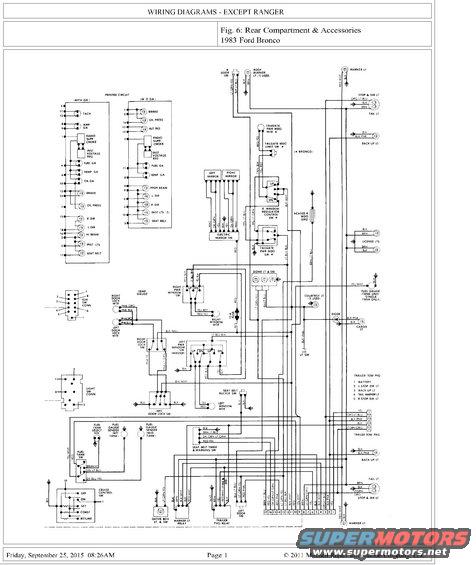

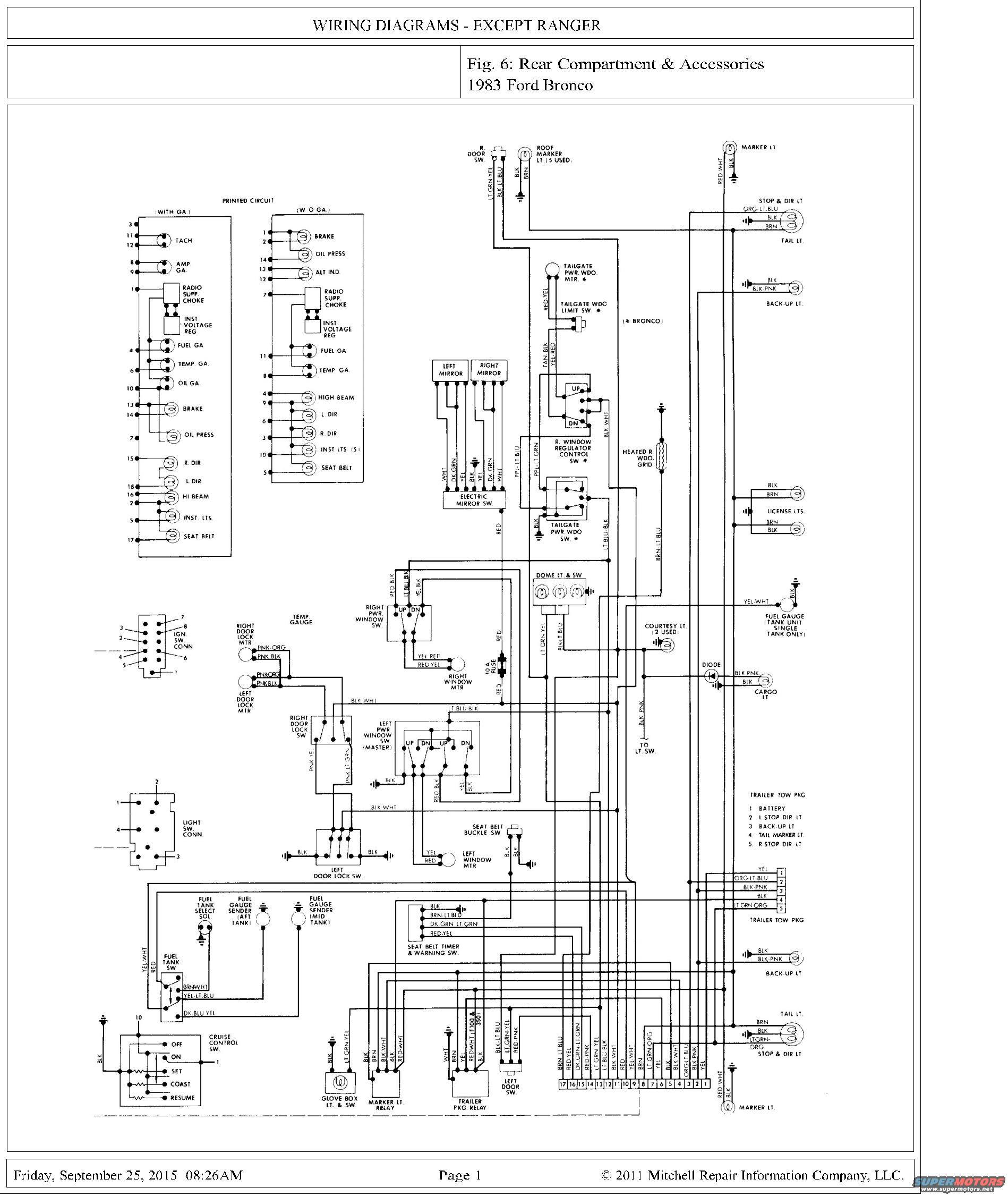

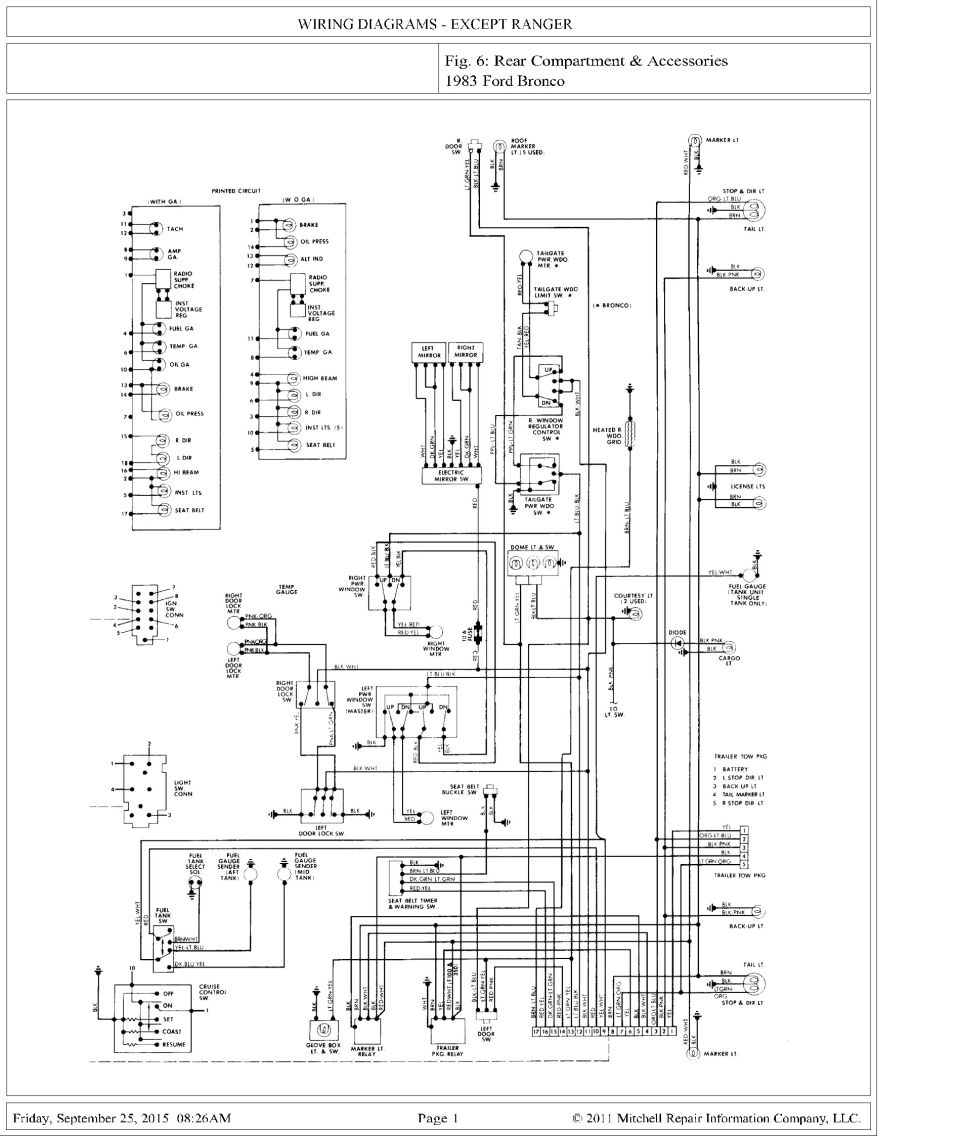

1983 Ford Bronco Wiring Diagram - Rear Compartment & Accessories (Fig. 6)

This document is a Mitchell Repair Information wiring diagram titled 'Fig. 6: Rear Compartment & Accessories' for the 1983 Ford Bronco, from the 'Wiring Diagrams - Except Ranger' section. It covers the rear compartment and accessory circuits, including the instrument cluster printed circuit pinouts (both with-gauge and without-gauge versions listing tach, amp gauge, fuel/temp/oil gauges, brake and oil pressure warning lamps, directionals, high beam, instrument lights, and seat belt lamp), the tailgate power window motor, limit switch, regulator control switch, and tailgate power window switch (Bronco-specific items marked with an asterisk), heated rear window grid, electric mirror switches, power door lock motors and switches, left/right power window switches and motors with a 10A in-line fuse, dome and courtesy lights, cargo light with diode, fuel tank select solenoid, fuel gauge senders (aft and mid tanks), fuel tank switch, seat belt timer and warning switch, cruise control switch positions, glove box light, marker light relay, trailer package relay, and the trailer tow package 5-pin connector legend. Wire colors are labeled throughout (e.g., LT. GRN-YEL, BLK-PNK, ORG-LT. BLU), and a 17-pin rear harness connector is listed with wire colors for each pin.
