1996 Ford Bronco C202M In-Line Connector Pinout - 76-Pin Wiring Diagram EVTM

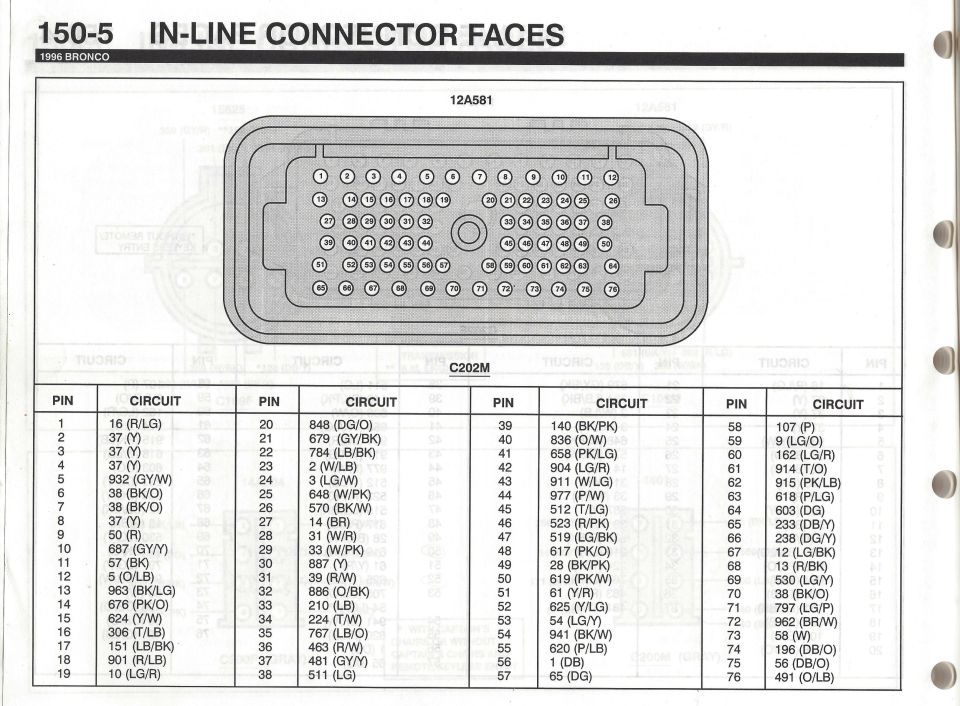

This is page 150-5 of the 1996 Ford Bronco Electrical & Vacuum Troubleshooting Manual (EVTM), titled "In-Line Connector Faces." It documents connector C202M, part of wiring harness 12A581. The page includes a face-view diagram of the 76-cavity in-line connector, showing the physical layout of pins 1 through 76 arranged in six rows around a central alignment feature. Below the diagram is a complete pinout table listing each of the 76 pin positions with its assigned circuit number and wire color code (e.g., pin 1 = circuit 16, Red/Light Green; pin 27 = circuit 14, Brown; pin 76 = circuit 491, Orange/Light Blue). Wire color abbreviations include BK (black), R (red), Y (yellow), LG (light green), DG (dark green), GY (gray), PK (pink), LB (light blue), DB (dark blue), T (tan), O (orange), P (purple), W (white), and BR (brown). Several pins share circuits, such as circuit 37 (Y) on pins 2, 3, 4, and 8, and circuit 38 (BK/O) on pins 6, 7, and 70. This reference is essential for tracing wiring through the bulkhead/in-line connector, diagnosing circuit continuity, and repairing harness connections on a 1996 Bronco.
