What size and color are the fuse links in the 1994 Bronco/F-Series power distribution circuit?

Fuse Links J, A, and B are all 12 GA gray fuse links. Fuse Link J is at location 151-2 E1, and Fuse Links A and B are at 151-2 D1.

What fuse protects the trailer battery charge circuit?

Fuse Q, a 30A fuse in the Engine Compartment Fuse Box (151-2 D9), which is present with trailer tow only. It feeds circuit 37 (Y) to the Trailer Battery Charge Relay (page 95-1).

What wire circuits feed the Integral Alternator Regulator (IAR)?

Circuits 38 BK/O (to pins B+ via connector C153) and 36 Y/W (to pin A via connector C154). The IAR is covered on page 12-1, and a note states part of this wiring is for 4.9L & 7.5L engines only.

Where are the battery grounds on this diagram?

The battery negative grounds through BK wires to G103 (engine) and G101 (body); additional ground information is on page 10-3.

Does connector C105 apply to the Bronco?

No. C105 (location 151-2 B9) is marked '* ALL EXCEPT BRONCO' in the trailer battery charge circuit.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1149568

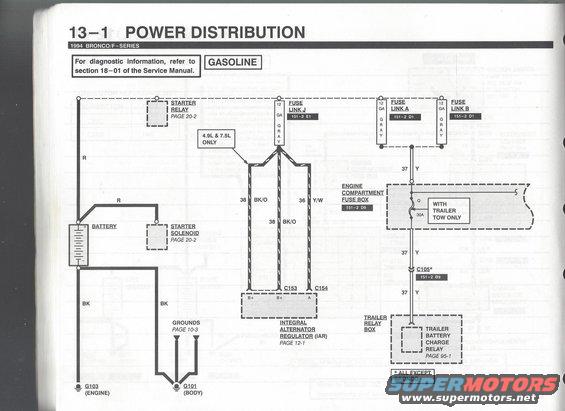

1994 Ford Bronco/F-Series EVTM Pg 13-1 Power Distribution Wiring Diagram (Gas)

1994 Ford Bronco F-Series power distribution wiring diagram, gasoline, page 13-1

‹ ›

1994 Bronco/F-Series gasoline power distribution schematic: battery, starter relay/solenoid, fuse links A/B/J, integral alternator regulator, engine/body grounds G103/G101, and trailer-tow battery charge relay.

AI caption May 2019 · Photo 399 of 413

This is a scanned page (13-1, Power Distribution) from the 1994 Ford Bronco/F-Series Electrical and Vacuum Troubleshooting Manual (EVTM), covering gasoline engines. The schematic traces battery power distribution: the battery positive feeds the starter relay and starter solenoid (page 20-2) via red (R) wires, while black (BK) wires ground the battery to G103 (engine) and G101 (body), with additional grounds referenced on page 10-3. Fuse Link J (12 GA gray, location 151-2 E1) feeds the Integral Alternator Regulator (IAR, page 12-1) through connectors C153 and C154 using circuits 38 BK/O and 36 Y/W; a note indicates certain wiring applies to 4.9L and 7.5L engines only. Fuse Links A and B (both 12 GA gray, 151-2 D1) feed circuit 37 (yellow) into the Engine Compartment Fuse Box (151-2 D9), through fuse Q (30A, present with trailer tow package only), then through connector C105 (151-2 B9, all except Bronco) to the Trailer Battery Charge Relay in the Trailer Relay Box (page 95-1). Readers can learn fuse link gauges/colors, circuit numbers, wire colors, connector IDs, ground locations, and cross-reference pages for related systems.

This document covers 1994, which may differ from this 1996 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What size and color are the fuse links in the 1994 Bronco/F-Series power distribution circuit?: Fuse Links J, A, and B are all 12 GA gray fuse links. Fuse Link J is at location 151-2 E1, and Fuse Links A and B are at 151-2 D1.
What fuse protects the trailer battery charge circuit?: Fuse Q, a 30A fuse in the Engine Compartment Fuse Box (151-2 D9), which is present with trailer tow only. It feeds circuit 37 (Y) to the Trailer Battery Charge Relay (page 95-1).
What wire circuits feed the Integral Alternator Regulator (IAR)?: Circuits 38 BK/O (to pins B+ via connector C153) and 36 Y/W (to pin A via connector C154). The IAR is covered on page 12-1, and a note states part of this wiring is for 4.9L & 7.5L engines only.
Where are the battery grounds on this diagram?: The battery negative grounds through BK wires to G103 (engine) and G101 (body); additional ground information is on page 10-3.
Does connector C105 apply to the Bronco?: No. C105 (location 151-2 B9) is marked '* ALL EXCEPT BRONCO' in the trailer battery charge circuit.
