Wiring diagrams

From 1979 Ford Bronco “buyers guide”, documented by Ranger429.

29 photos
← Back to this vehicle

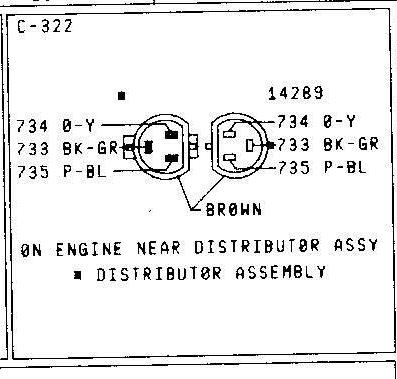

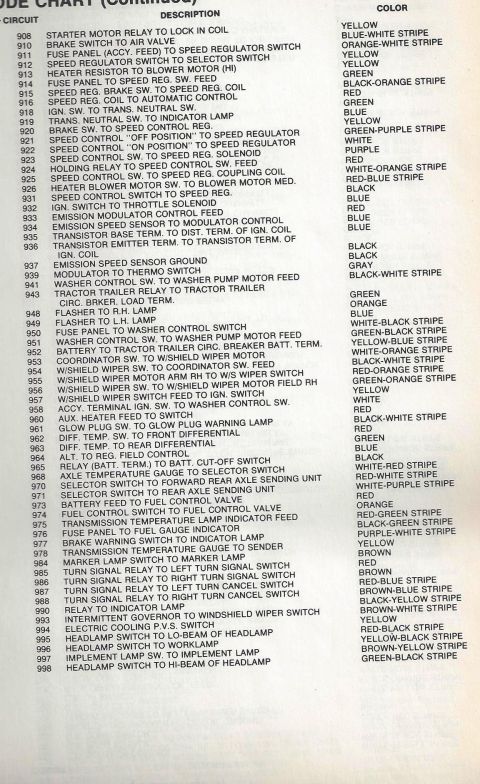

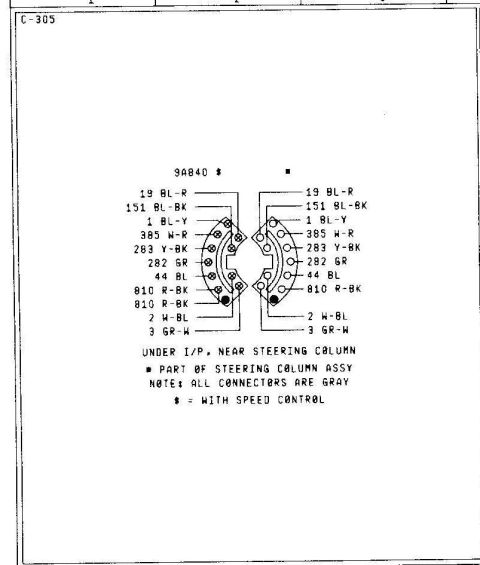

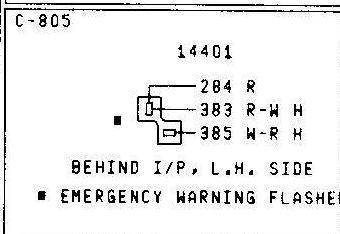

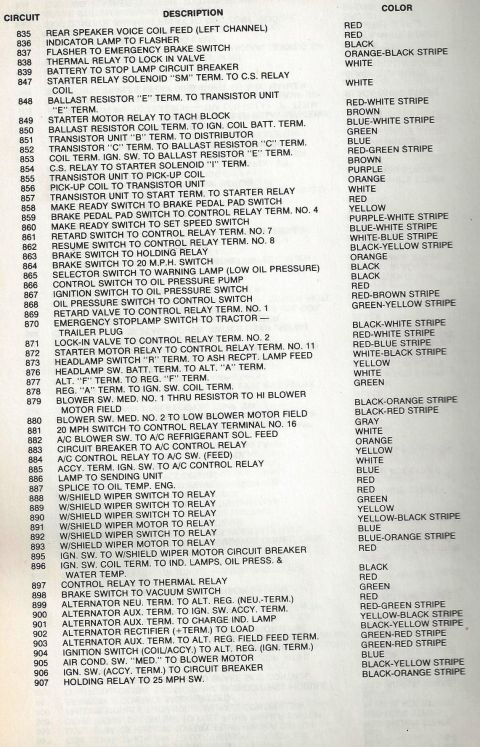

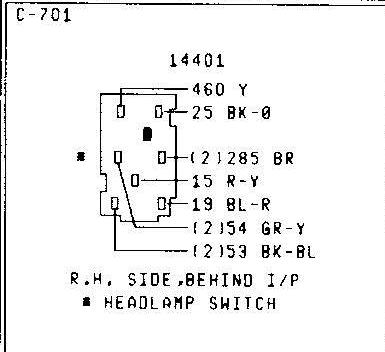

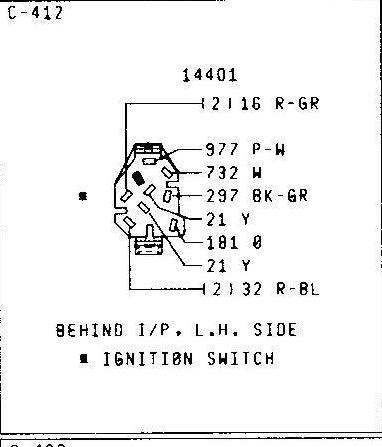

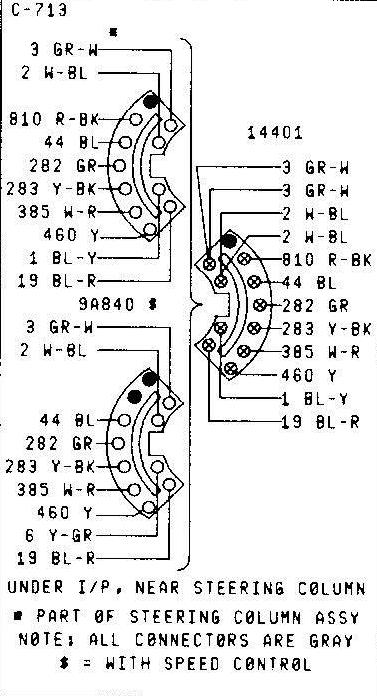

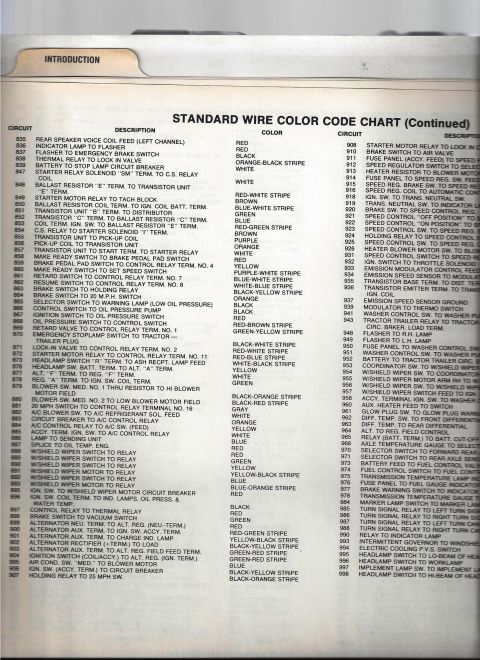

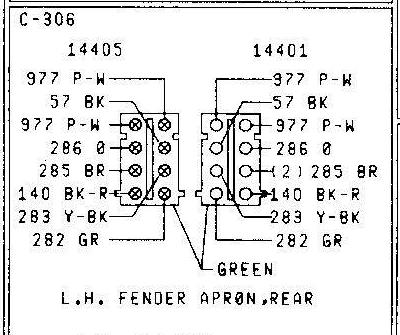

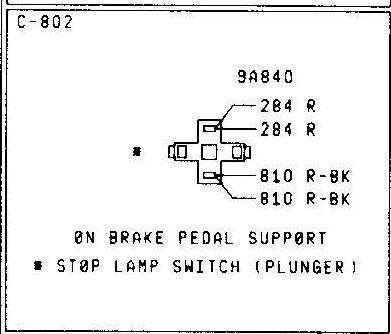

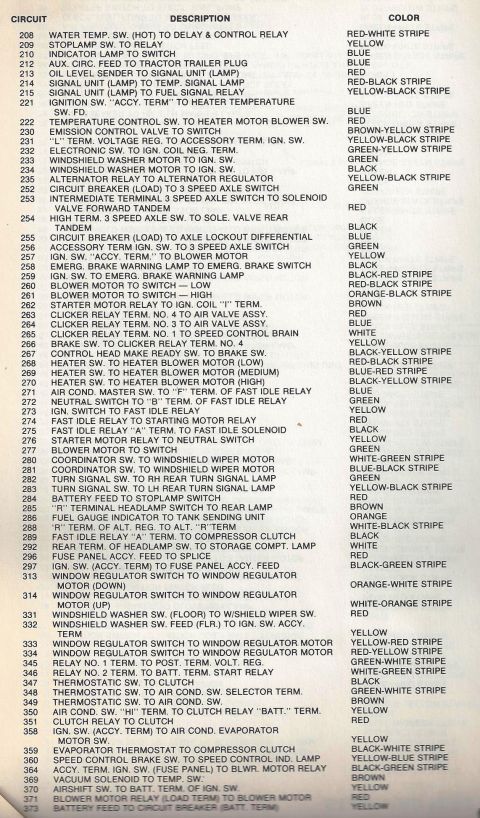

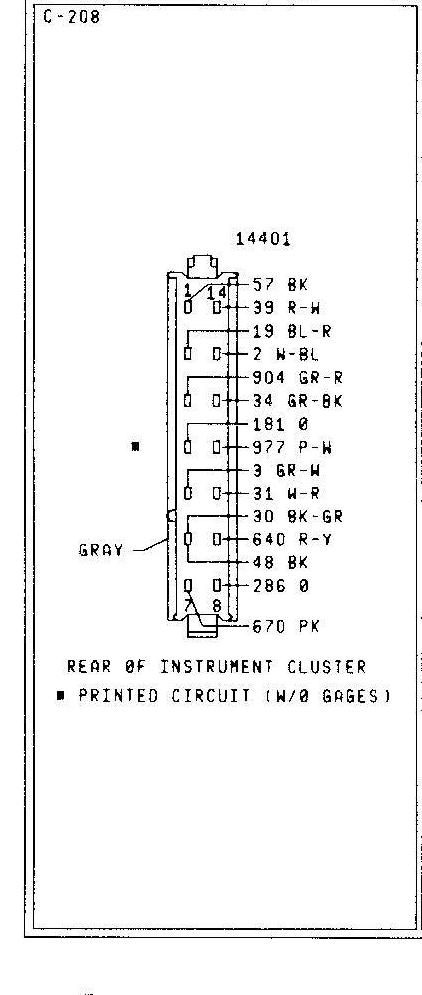

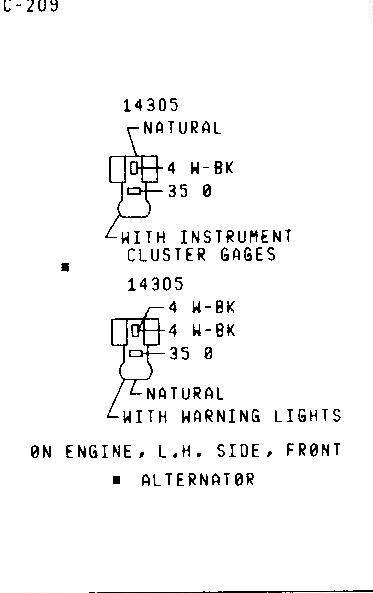

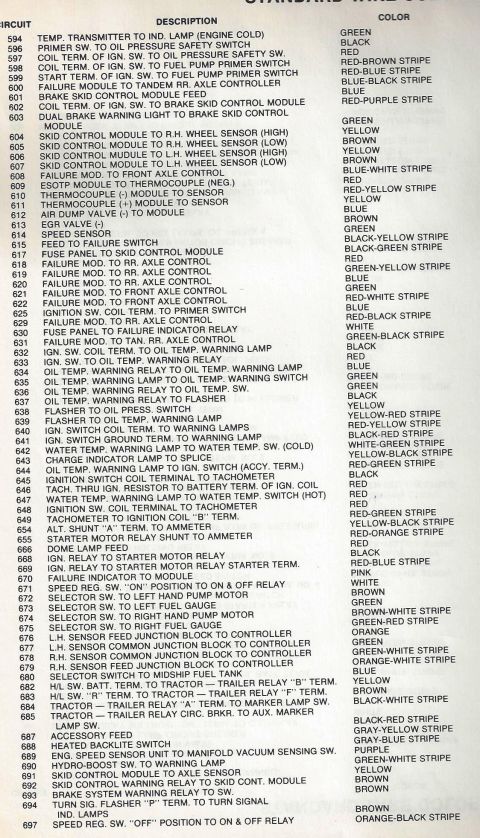

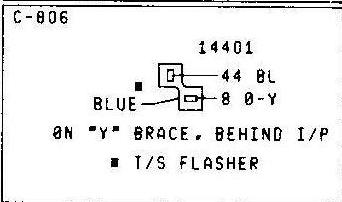

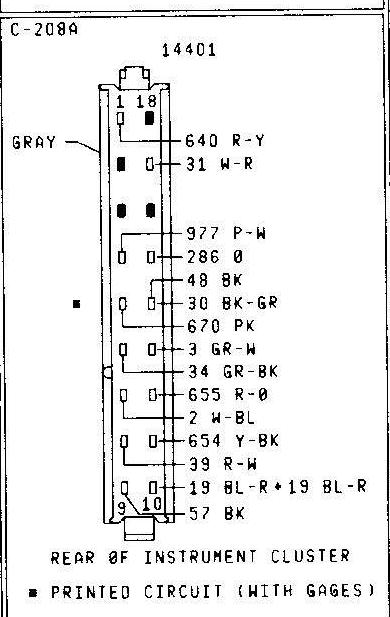

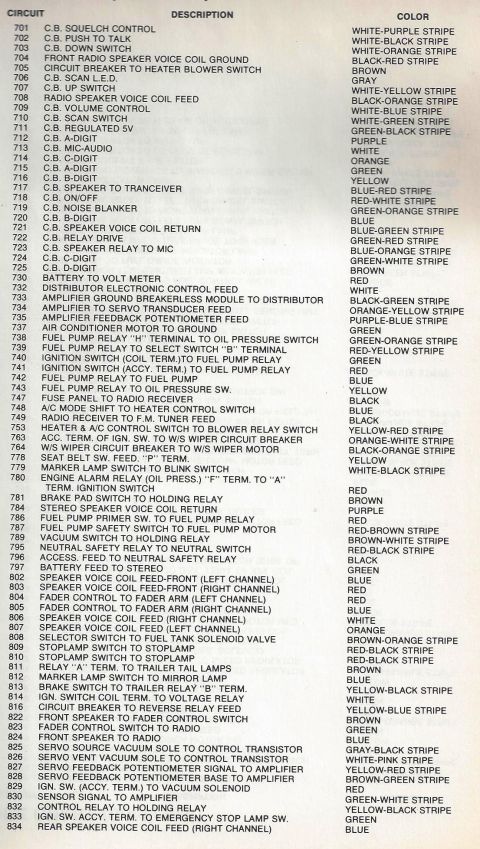

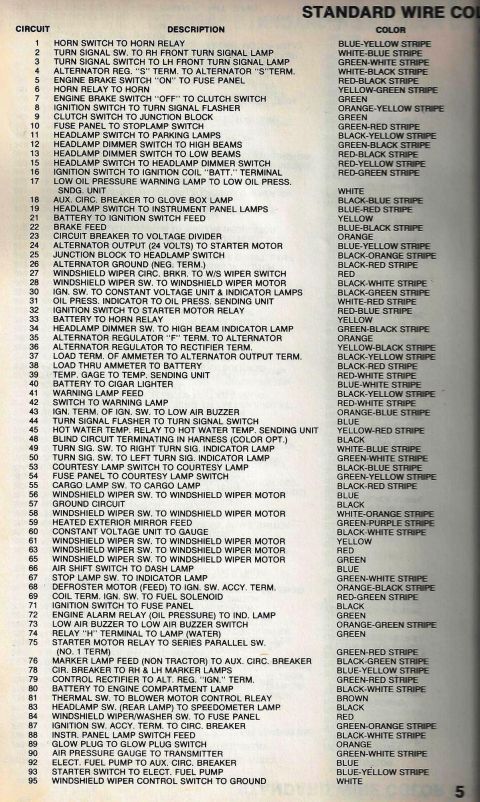

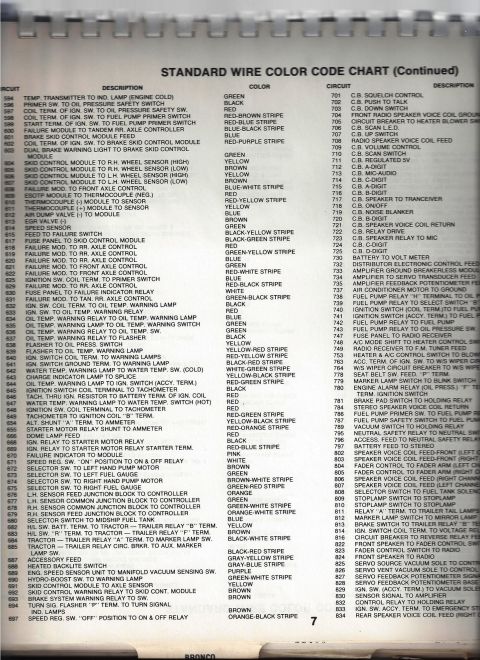

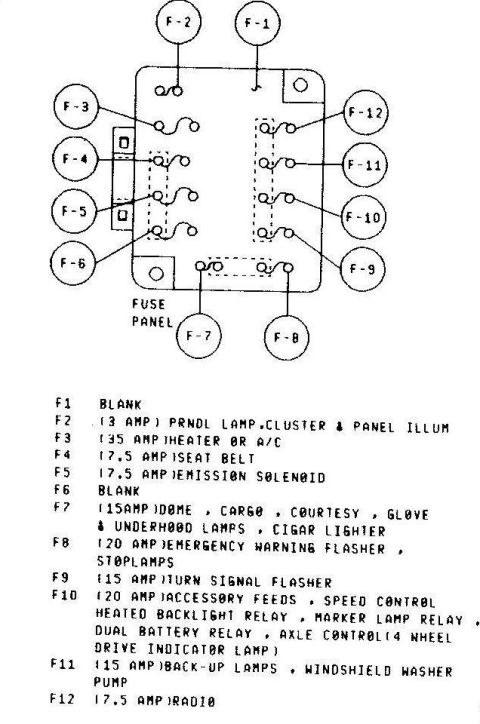

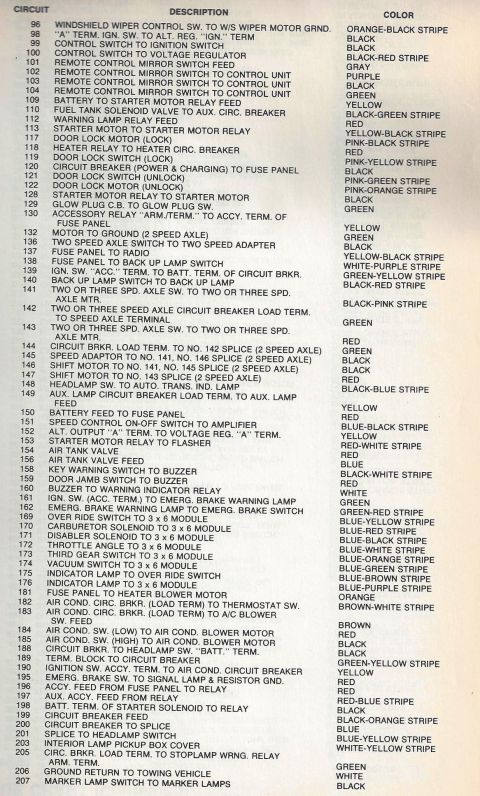

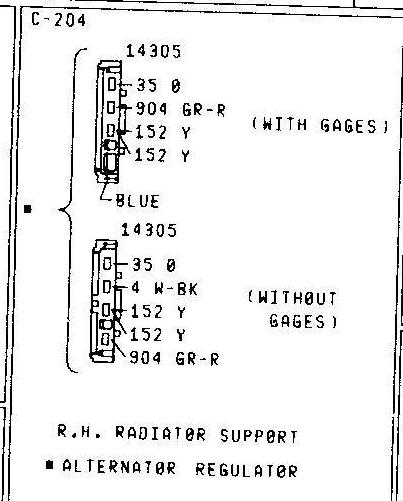

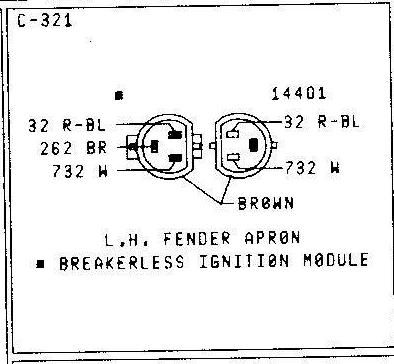

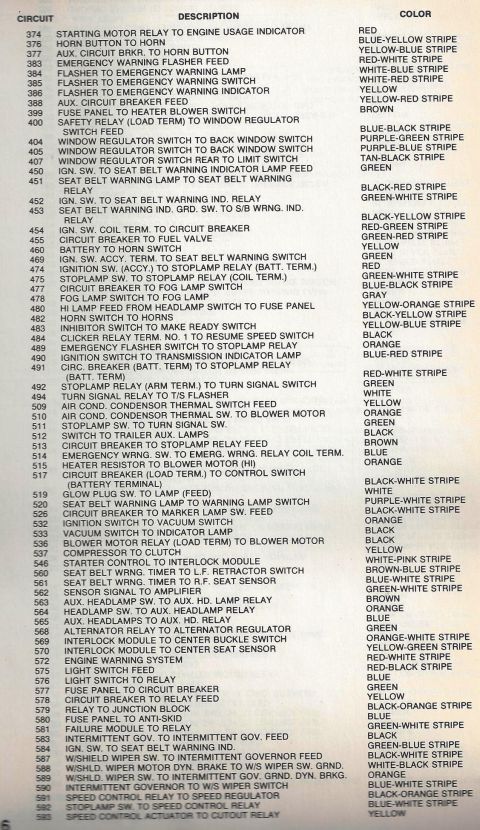

1979 Ford Bronco - Photograph of the cover of Ford's 1979 Truck Wiring Diagrams training booklet (Course 0339-101, FPSD 365-247) rather than a diagram page it… 1979 Ford Bronco - Wiring diagram showing ignition switch, dual brake and oil pressure warning circuits with color-coded wires and connector pinout charts. 1979 Ford Bronco - Standard wire color code reference table mapping circuit numbers to descriptions and wire colors (e.g. horn switch to horn relay, headlamp… 1979 Ford Bronco - Continued wire color code reference mapping circuit numbers to descriptions and wire colors for HVAC, 3-speed axle, alternator and brake sk… 1979 Ford Bronco - Continued wire color code reference covering brake skid control module wheel sensors, thermocouple, EGR valve and oil temperature warning c… 1979 Ford Bronco - Continued wire color code reference covering breakerless/transistor ignition (ballast resistor, pick-up coil), starter relay and speed/crui… 1979 Ford Bronco - Clean standard wire color code page mapping circuits 1-95 to descriptions and wire colors (horn relay, turn signals, headlamp dimmer high/l… 1979 Ford Bronco - Wire color code page covering circuits 90-207: windshield wiper ground, remote control mirror, power door lock motor, 2-speed axle, glow pl… 1979 Ford Bronco - Wire color code page covering circuits 208-371: water temp/delay relay, heater blower, emission control valve, 3-speed axle solenoid valves… 1979 Ford Bronco - Wire color code page covering circuits 374-585: emergency warning flasher, back window switch, seat belt warning relay, fog lamp switch and… 1979 Ford Bronco - Wire color code page covering circuits 594-697: oil pressure safety, fuel pump primer, brake skid control module wheel sensors, EGR valve,… 1979 Ford Bronco - Wire color code page covering circuits 701-834: CB radio (squelch, push-to-talk, scan), speaker, distributor electronic control, breakerles… 1979 Ford Bronco - Master wiring-circuit legend listing circuits 835-907 with descriptions and wire colors (e.g. starter relay solenoid, ballast resistor, tra… 1979 Ford Bronco - Wire color code page covering circuits 908-998: starter motor relay lock-in coil, speed regulator/cruise control, trans neutral switch, thr… 1979 Ford Bronco - Wiring connector diagram for ignition switch (C-412) behind I/P left side, listing pin wire numbers and color codes. 1979 Ford Bronco - Fuse panel chart showing fuse positions F1-F12 with amperage ratings and the circuits each fuse protects. 1979 Ford Bronco - Wiring connector diagram for headlamp switch (C-701) right side behind I/P, listing pin wire numbers and color codes. 1979 Ford Bronco - Wiring connector diagram for rear of instrument cluster printed circuit (C-208A) listing pin wire numbers and color codes. 1979 Ford Bronco - Wiring connector diagram for alternator regulator (C-204) at right radiator support, showing pinouts with and without gages. 1979 Ford Bronco - Wiring connector diagram for alternator (C-209) on engine left side, showing pinouts for cluster gages and warning lights. 1979 Ford Bronco - Wiring connector diagram for breakerless ignition module (C-321) on left fender apron with pin wire numbers and color codes. 1979 Ford Bronco - Wiring connector diagram for distributor assembly (C-322) on engine near distributor, listing pin wire numbers and color codes. 1979 Ford Bronco - Wiring connector diagram for rear of instrument cluster printed circuit (C-208) without gages, listing pin wire numbers and colors. 1979 Ford Bronco - Wiring connector diagram (C-306) at left fender apron rear, showing mating connector pinouts with wire numbers and color codes. 1979 Ford Bronco - Wiring connector diagram for steering column assembly (C-305) under I/P, listing all-gray connector pin wire numbers and colors. 1979 Ford Bronco - Wiring connector diagram for steering column assembly (C-713) under I/P with speed control, listing pin wire numbers and colors. 1979 Ford Bronco - Wiring connector diagram for stop lamp switch plunger (C-802) on brake pedal support with pin wire numbers and color codes. 1979 Ford Bronco - Wiring connector diagram for emergency warning flasher (C-805) behind I/P left side with pin wire numbers and color codes. 1979 Ford Bronco - Wiring connector diagram for turn signal flasher (C-806) on Y brace behind I/P with pin wire numbers and color codes.
