What transfer case does this exploded view diagram cover?

It covers the Borg-Warner 13-56 (BW1356) manual shift transfer case, shown in exploded view as figure 3.1c in Chapter 7 Part C of the manual.

What is item 47 in the BW1356 exploded view legend?

Item 47 is the Fork Assy, Shift, 2W-4W (the two-wheel/four-wheel drive shift fork assembly).

Which item number is the 4WD indicator switch?

Item 74 is the Switch, 4WD Indicator.

What parts make up the drive chain and sprocket set in this legend?

Item 51 is the Sprocket, Drive; item 52 is the Sprocket, Driven; and item 53 is the Chain, Drive.

Which legend items relate to the transfer case oil pump?

Items 56–64 cover the pump: Retainer, Pump (56); Cover, Pump, Rear (57); Clamp, Hose (58); Coupling, Hose (59); Strainer, Oil (60); Housing, Pump (61); Pin, Pump (62); Spring, Pump Pin (63); and Cover, Pump, Front (64).

Home/ Registry/ Ford/ Bronco/ 1987-1991/ 1989 Ford Bronco/ Photo supermotors.net/registry/media/194490

Borg-Warner 1356 Manual Transfer Case Exploded View & Parts Legend - Ford

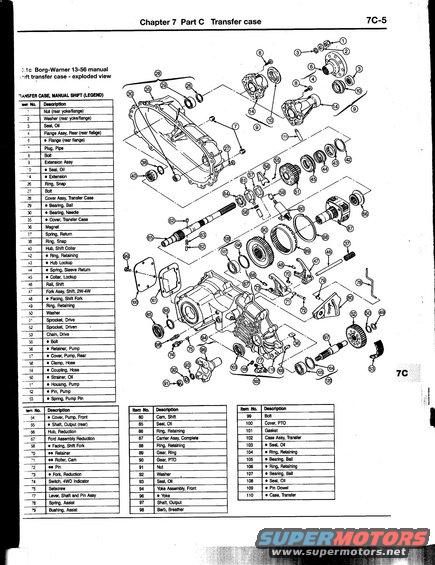

Borg-Warner 13-56 manual shift transfer case exploded view with numbered parts legend Chapter 7C-5

‹ ›

Exploded-view diagram of the Borg-Warner 13-56 manual-shift transfer case with numbered legend listing parts such as output shaft, drive sprocket and chain, shift forks, oil pump and seals.

AI caption April 2005 · Photo 33 of 48

This document is page 7C-5 from a repair manual chapter titled "Chapter 7 Part C — Transfer case." It presents figure 3.1c, an exploded view of the Borg-Warner 13-56 manual shift transfer case, accompanied by a complete parts legend labeled "Transfer Case, Manual Shift (Legend)." The legend, organized in four tables, identifies over 90 numbered components in the exploded diagram, ranging from item 1 (Nut, rear yoke/flange) through item 110 (Case, Transfer). Components covered include the rear extension assembly, transfer case cover and bearings, shift collar hub and lockup parts, the 2W-4W shift fork assembly, drive and driven sprockets with drive chain, the oil pump assembly (housing, cover, strainer, pin, spring), the rear output shaft, reduction hub and fork, the 4WD indicator switch, shift lever/shaft/cam parts, the planetary carrier assembly, ring gear and PTO gear, front yoke assembly, output shaft, breather barb, PTO cover and gasket, and the transfer case housing with its seals, bearings, and retaining rings. A reader can use this page to identify individual parts of the BW1356 manual-shift transfer case by callout number when disassembling, inspecting, or ordering replacement parts. No torque specs or part numbers are given—only item numbers and descriptions.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What transfer case does this exploded view diagram cover?: It covers the Borg-Warner 13-56 (BW1356) manual shift transfer case, shown in exploded view as figure 3.1c in Chapter 7 Part C of the manual.
What is item 47 in the BW1356 exploded view legend?: Item 47 is the Fork Assy, Shift, 2W-4W (the two-wheel/four-wheel drive shift fork assembly).
Which item number is the 4WD indicator switch?: Item 74 is the Switch, 4WD Indicator.
What parts make up the drive chain and sprocket set in this legend?: Item 51 is the Sprocket, Drive; item 52 is the Sprocket, Driven; and item 53 is the Chain, Drive.
Which legend items relate to the transfer case oil pump?: Items 56–64 cover the pump: Retainer, Pump (56); Cover, Pump, Rear (57); Clamp, Hose (58); Coupling, Hose (59); Strainer, Oil (60); Housing, Pump (61); Pin, Pump (62); Spring, Pump Pin (63); and Cover, Pump, Front (64).
