Ford Motorcraft 2150A 2V Carburetor Exploded Diagram - V6/V8 Feedback Parts

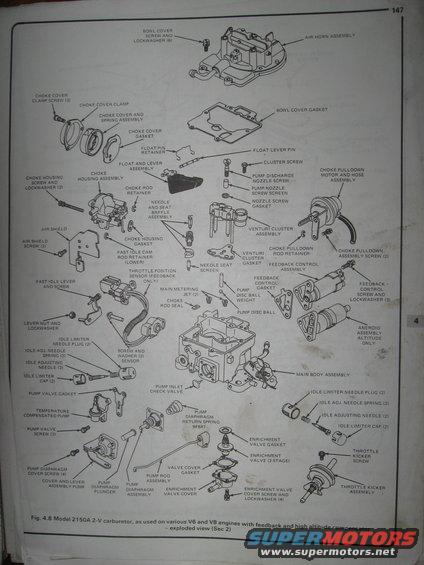

This is page 147 of a repair manual showing Figure 4.8, an exploded parts view of the Model 2150A 2-V (two-venturi) carburetor as used on various V6 and V8 engines equipped with feedback and a high altitude compensator. The diagram identifies every component of the carburetor with callout labels, from the air horn assembly and bowl cover at the top, through the choke system (choke cover and spring assembly, choke housing, choke pulldown motor and hose assembly), fuel metering components (float and lever assembly, needle and seat baffle assembly, main metering jets, venturi cluster assembly), idle circuit parts (idle adjusting needles, springs, limiter caps and plugs), the accelerator pump system (pump diaphragm assembly, plunger, return spring 9F687, temperature compensated pump, pump inlet check valve, pump disc ball and weight), to the enrichment valve, feedback control assembly, throttle position sensor (feedback only), aneroid assembly (altitude only), throttle kicker assembly, and main body assembly. Screw counts and quantities are given in parentheses (e.g., bowl cover screws (6), choke housing screws (3)). A reader can use this diagram to identify parts and their order of assembly when disassembling or rebuilding a Motorcraft 2150A feedback carburetor.
