Motorcraft 2150 2-V Carburetor Exploded Diagram - V6/V8 High Altitude Parts

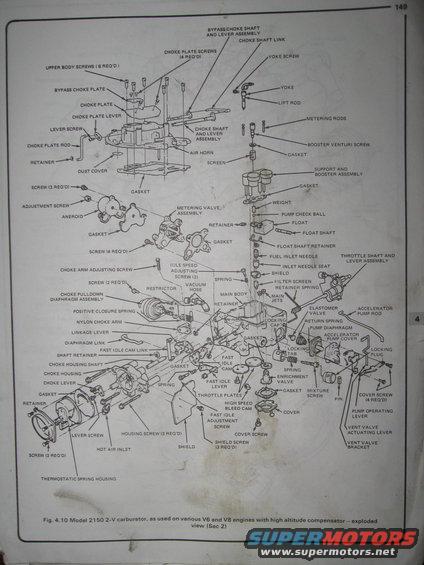

This is a scanned page (page 149) from an automotive repair manual showing Figure 4.10, an exploded parts view of the Model 2150 2-V (two-venturi) carburetor as used on various V6 and V8 engines equipped with a high altitude compensator. Every component of the carburetor is labeled with callout lines, covering the upper body (air horn, choke plate, bypass choke plate, choke shaft and lever assembly, dust cover, gaskets, metering rods, booster venturi), the fuel system parts (float, float shaft and retainer, fuel inlet needle and seat, main jets, filter screen retainer spring, pump check ball, weight), the choke system (choke pulldown diaphragm assembly, choke housing, thermostatic spring housing, fast idle cam and lever, nylon choke arm), the aneroid/high-altitude metering valve assembly, and the throttle/accelerator components (throttle shaft and lever assembly, throttle plates, accelerator pump rod, pump diaphragm, pump cover, return spring, elastomer valve, enrichment valve, mixture screw, vent valve actuating lever and bracket). Screw quantities are noted where applicable (e.g., upper body screws 6 req'd, choke plate screws 4 req'd, housing screws 3 req'd). The diagram is useful for identifying part names and orientation when disassembling or rebuilding this carburetor.
