What carburetor does this exploded view show?

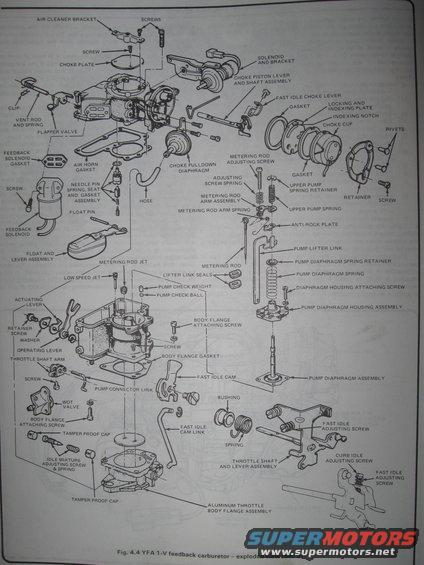

It shows the YFA 1-V feedback carburetor, per the caption 'Fig. 4.4 YFA 1-V feedback carburetor, exploded view (Sec 2)'.

What idle adjustment components are identified in the diagram?

The diagram labels a curb idle adjusting screw, fast idle adjusting screws, an idle mixture adjusting screw & spring, tamper proof caps over the idle mixture adjustment, a fast idle cam, and a fast idle cam link.

What accelerator pump parts are shown for the YFA carburetor?

Labeled pump parts include the pump lifter link, pump diaphragm spring and spring retainer, pump diaphragm housing assembly and attaching screw, pump diaphragm assembly, pump connector link, pump check weight, pump check ball, upper pump spring and upper pump spring retainer, and lifter link seals.

What choke components are identified in this exploded view?

Choke parts shown include the choke plate, choke piston lever and shaft assembly, fast idle choke lever, choke pulldown diaphragm, choke cup, locking and indexing plate with indexing notch, gaskets, retainer, and rivets.

Does the diagram show feedback (electronic) components?

Yes. It labels a feedback solenoid, feedback solenoid gasket, and a solenoid and bracket assembly.
