Ford 300 4.9L Inline 6 Engine Exploded Parts Diagram - 1981 Bronco Manual Pg 72

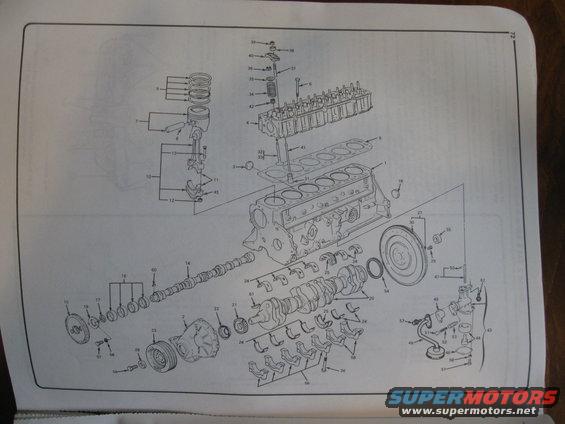

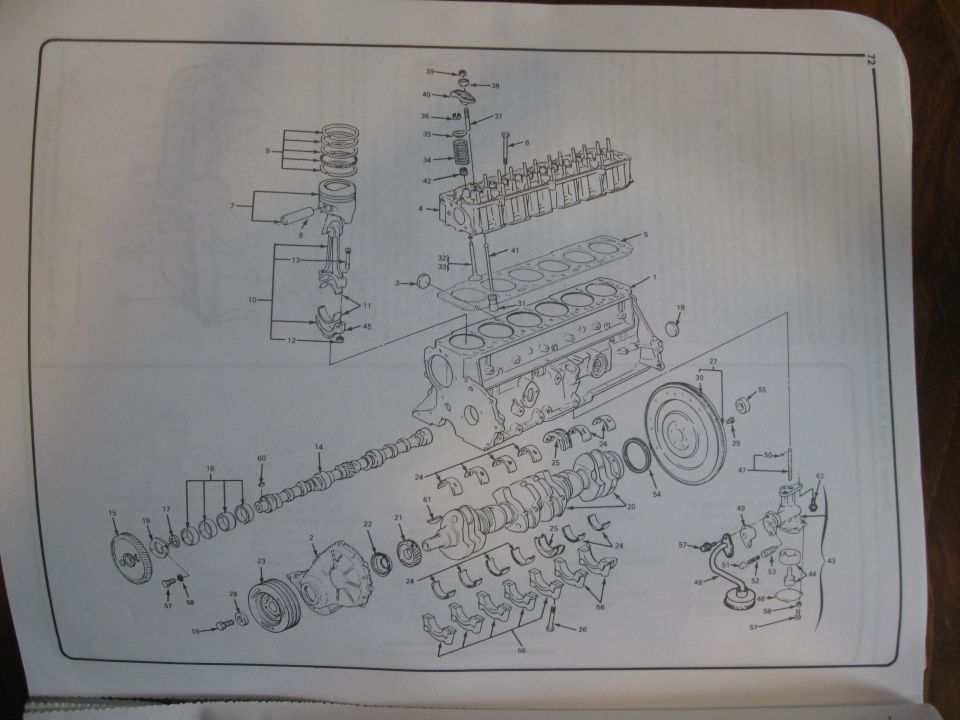

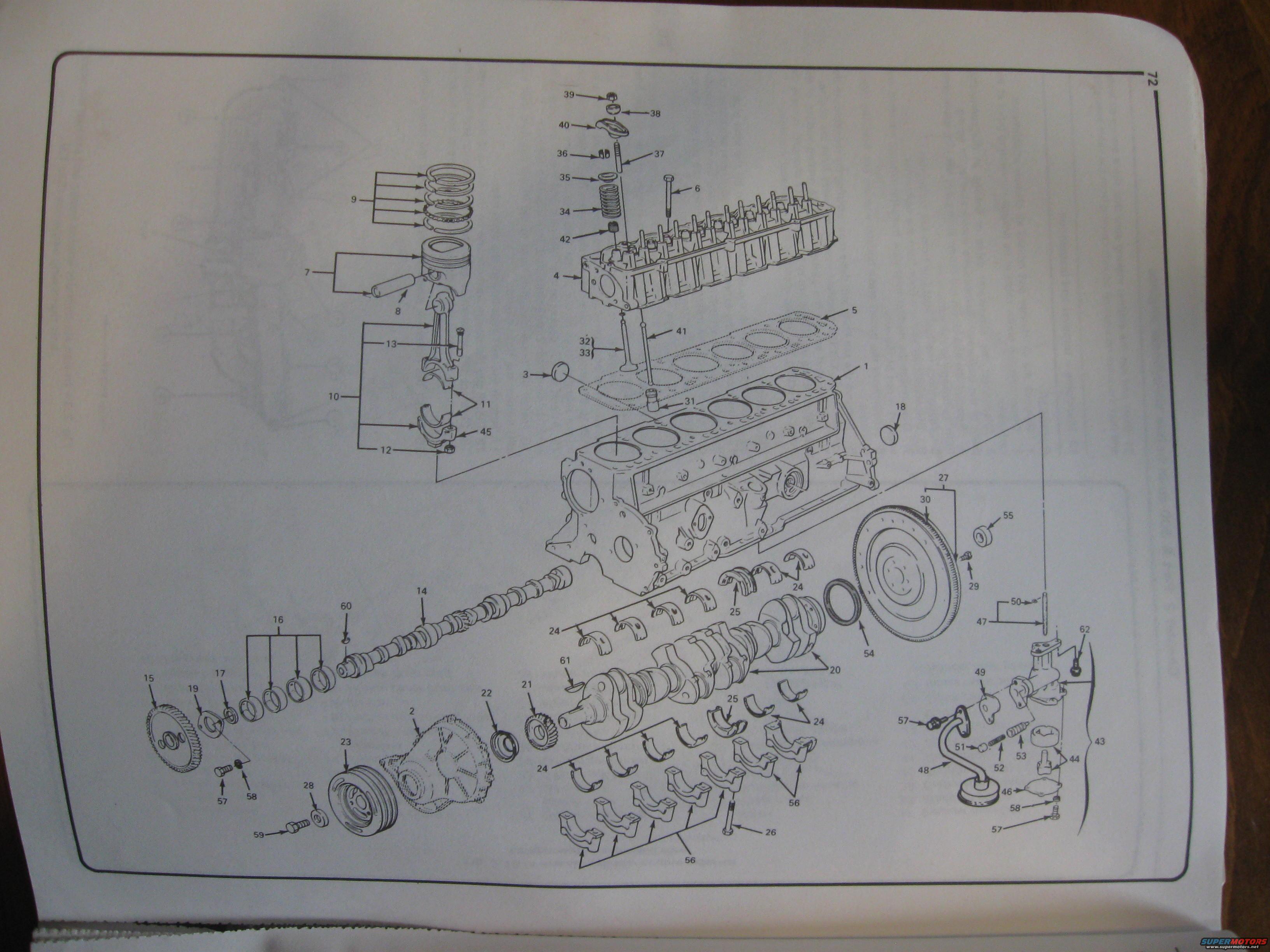

This document is page 72 of an automotive repair manual (apparently a Haynes/Chilton-style aftermarket manual) showing a full exploded-view line drawing of an inline six-cylinder engine. The illustration breaks the engine down into its major internal components: the cylinder head with complete valve train (valves, springs, retainers, keepers, seals), head gasket, cylinder block, pistons with rings and connecting rods with bearing inserts, camshaft with bearings and drive gear, crankshaft with upper and lower main bearing inserts, main bearing caps and bolts, rear main oil seal, flywheel with attaching bolts and pilot bearing, timing/front cover, crankshaft pulley and damper hardware, and the oil pump with its pickup tube and screen. Sixty-two numbered callouts (1–62) identify the individual parts, but the legend that decodes those numbers is not present on this page — it presumably appears on an adjacent page of the same album. The page contains no part numbers, torque specifications, or year/model text. It was uploaded to a 1981 Ford Bronco gallery; the inline-six architecture is consistent with the Bronco's 300 cu in (4.9L) six-cylinder engine, though the page itself does not state applicability. A reader can use this diagram to understand engine component relationships and assembly order during a rebuild.
