Diagrams and Schematics

From 1990 Ford Bronco “Eddie Bauer”, documented by SeattleFSB.

70 photos
← Back to this vehicle

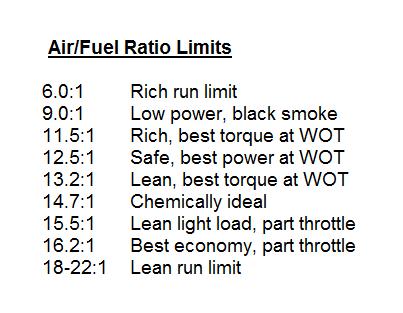

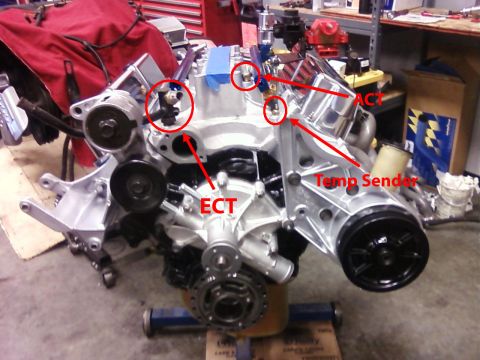

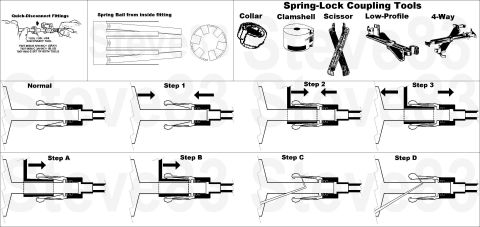

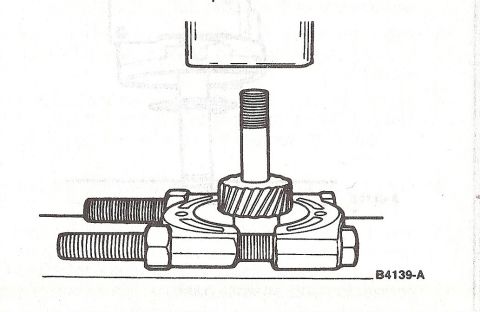

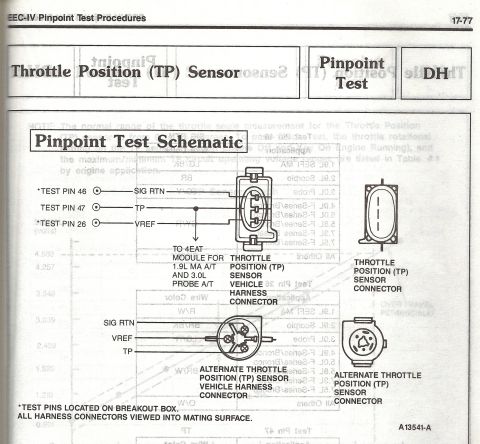

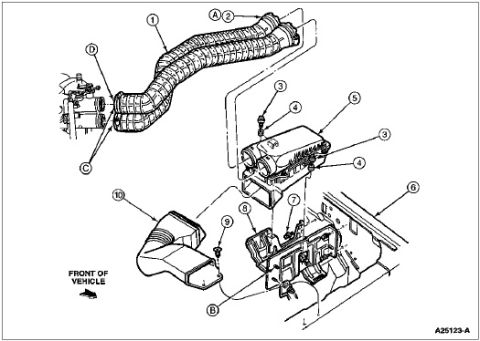

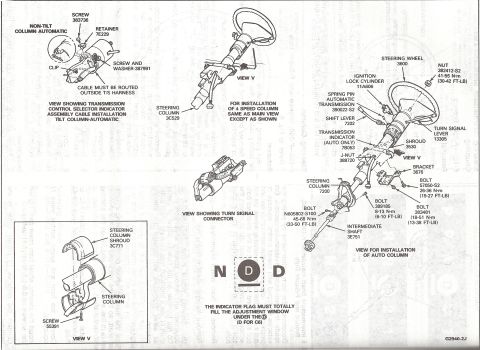

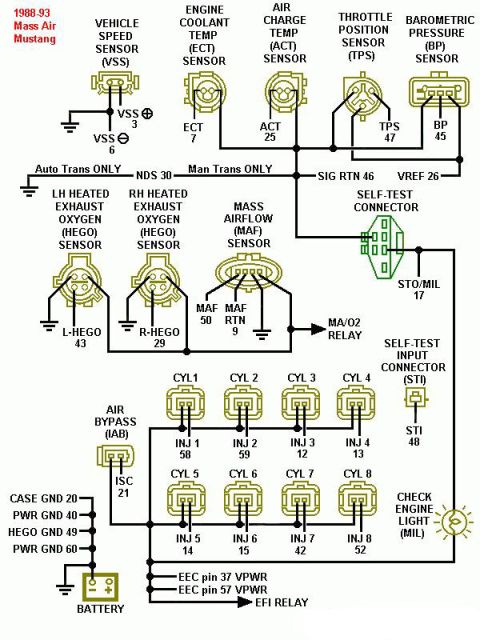

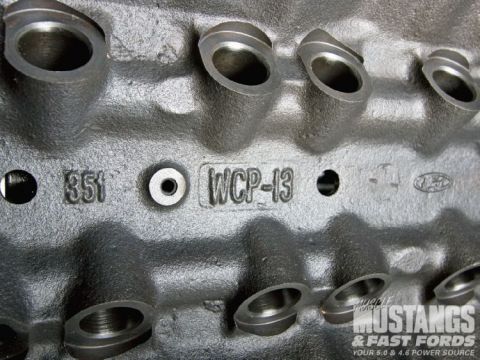

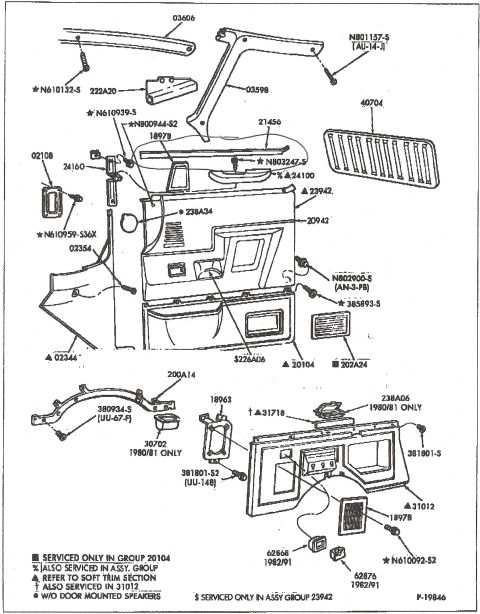

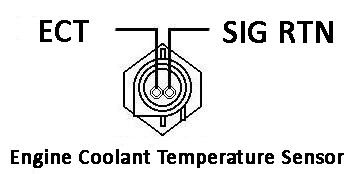

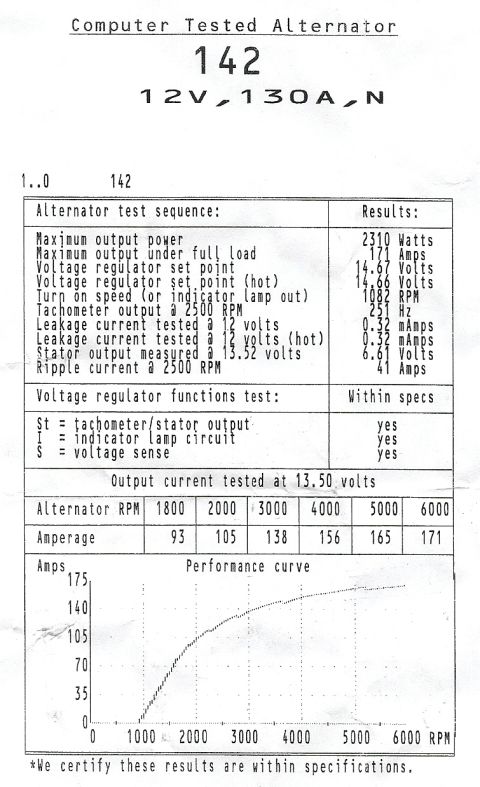

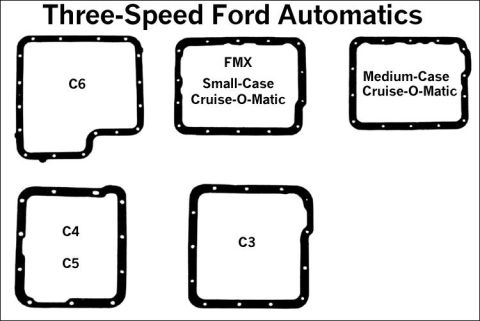

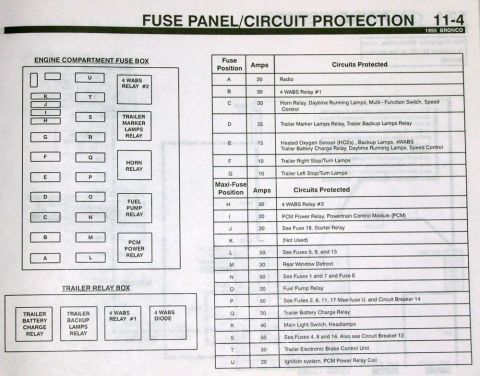

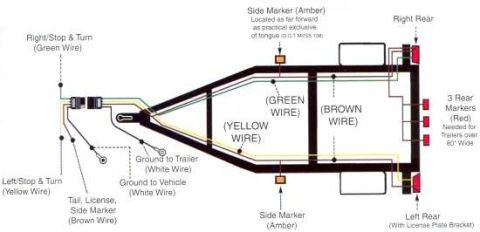

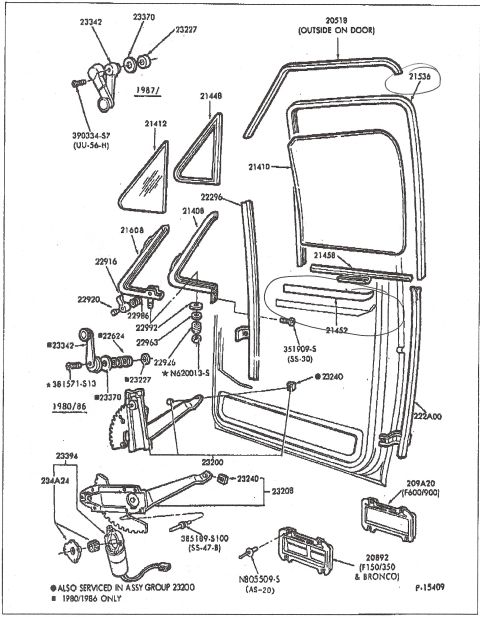

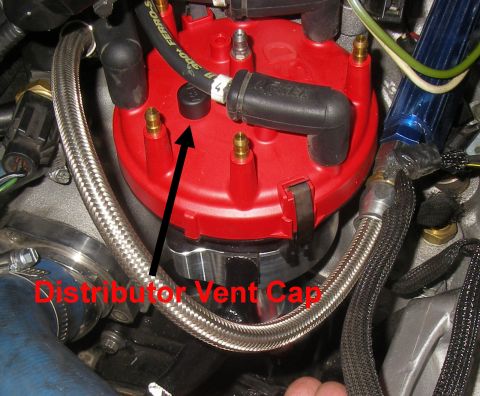

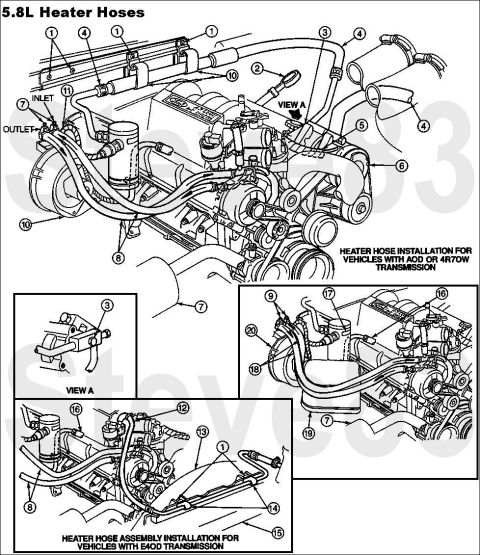

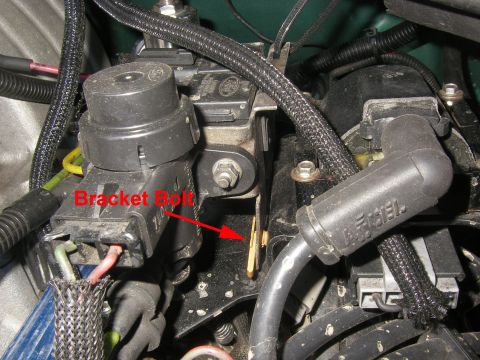

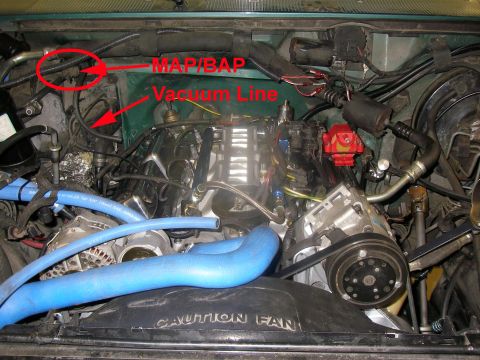

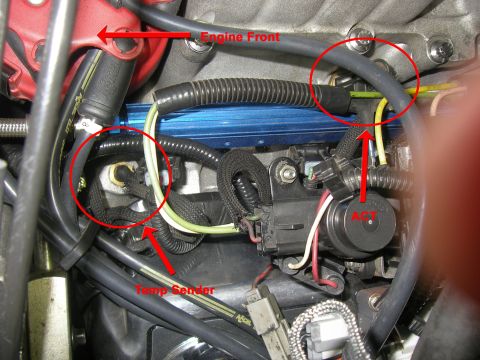

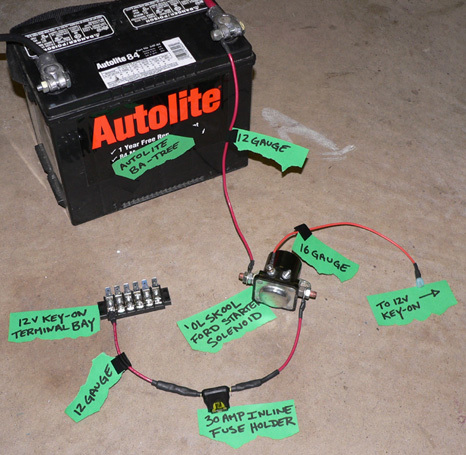

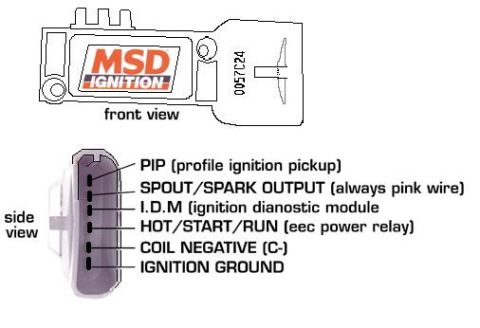

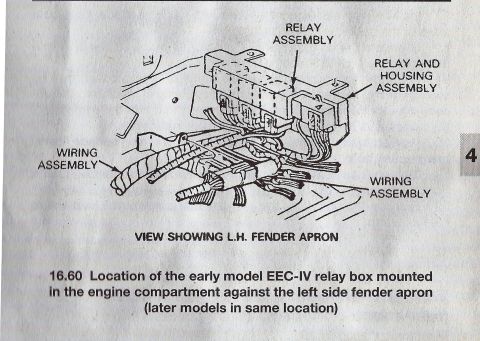

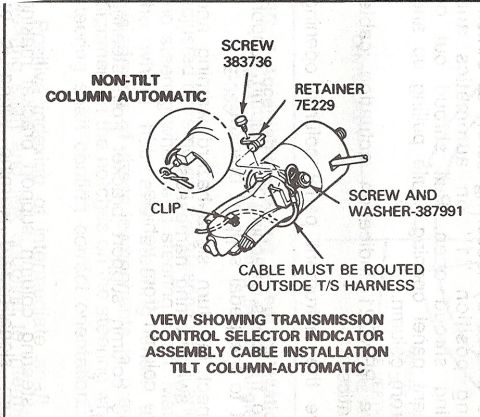

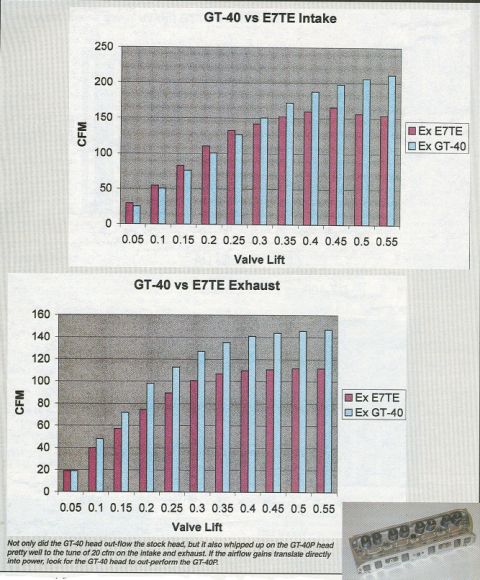

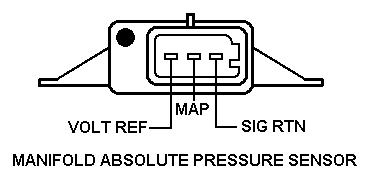

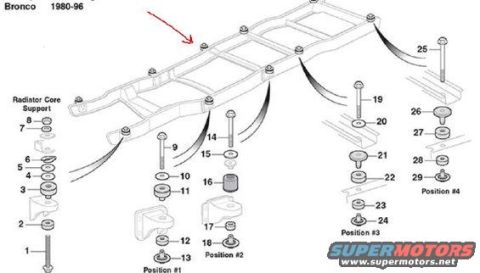

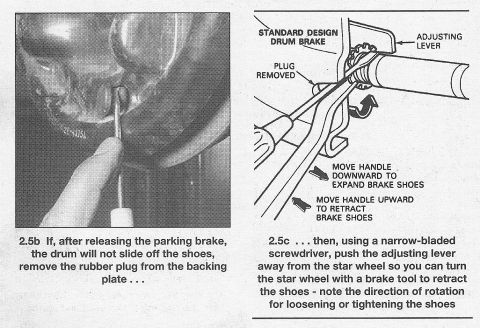

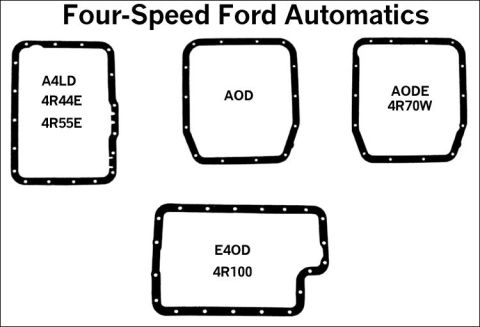

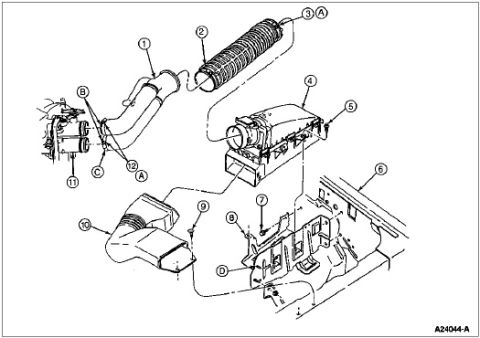

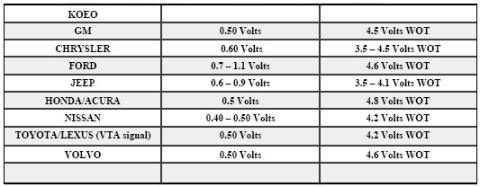

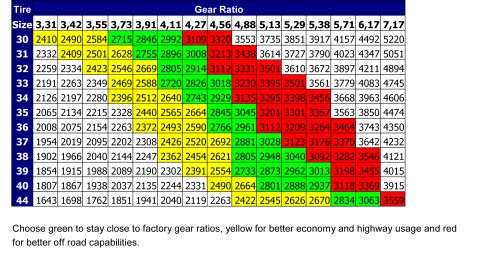

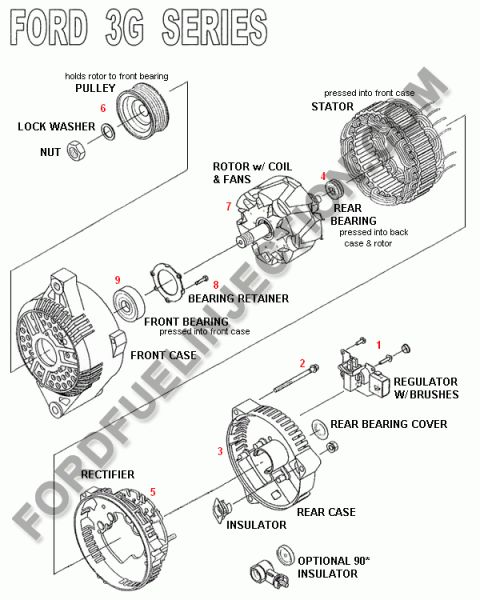

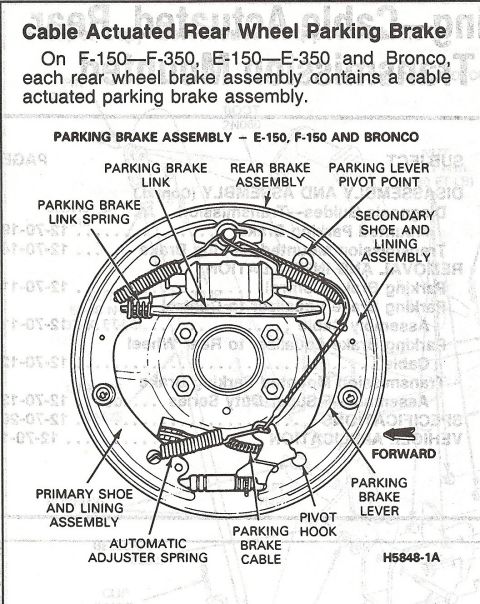

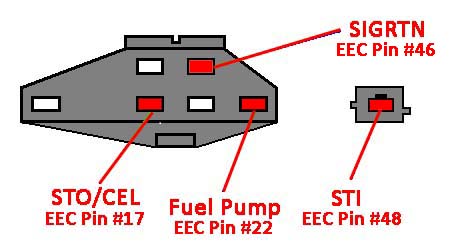

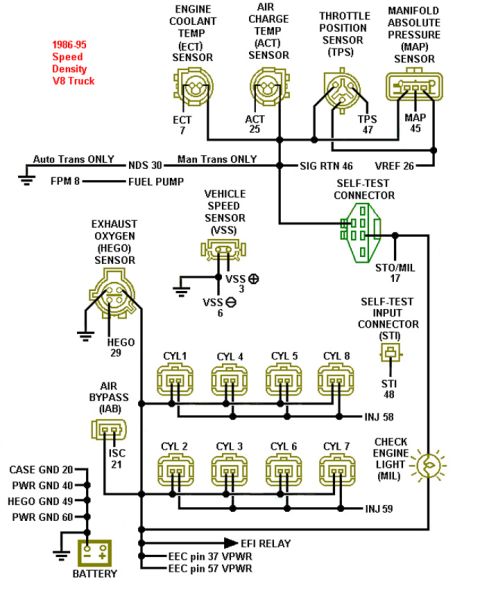

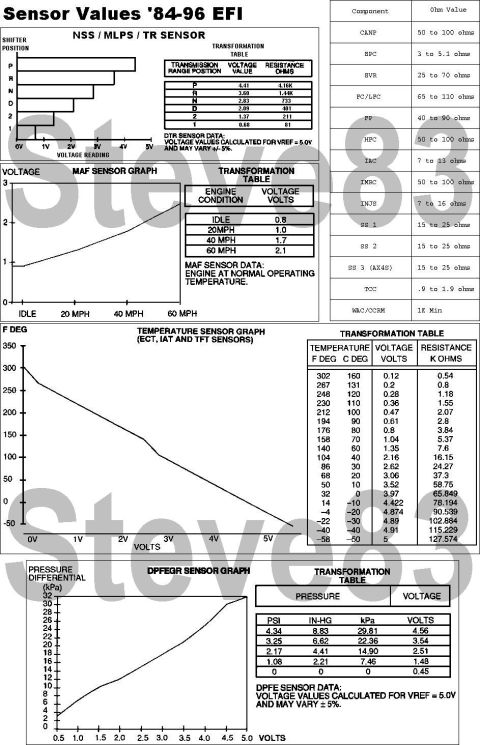

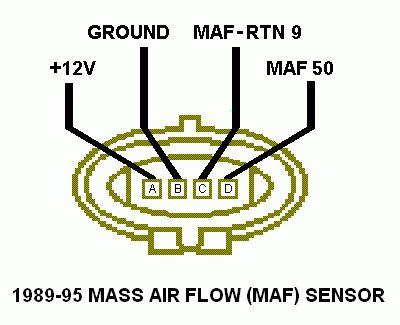

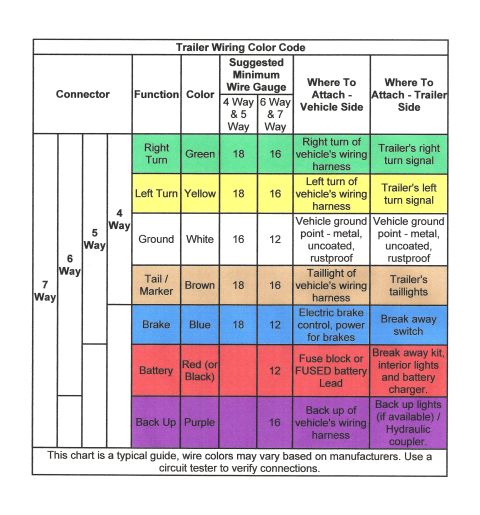

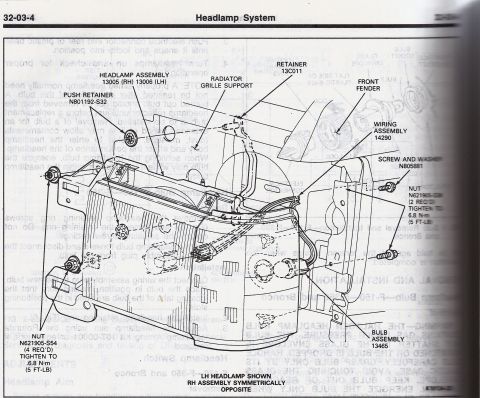

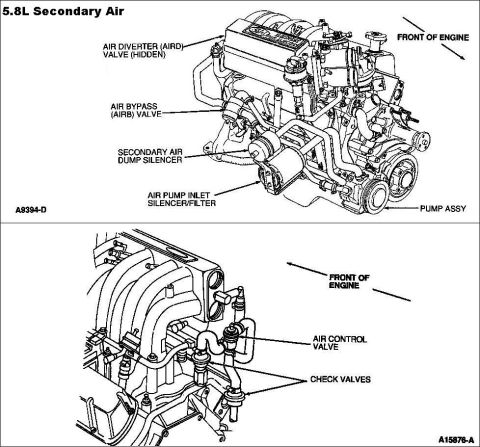

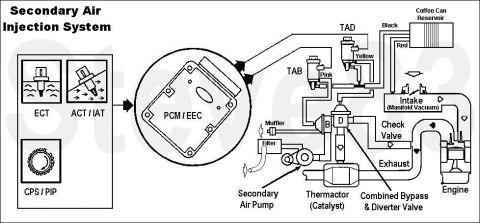

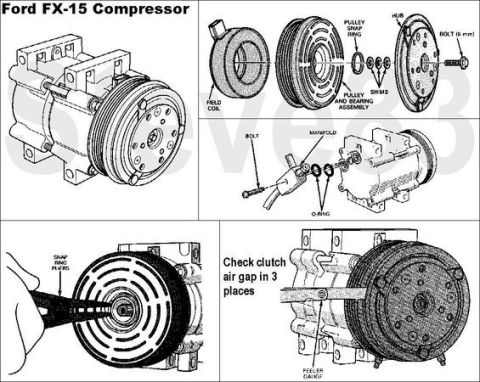

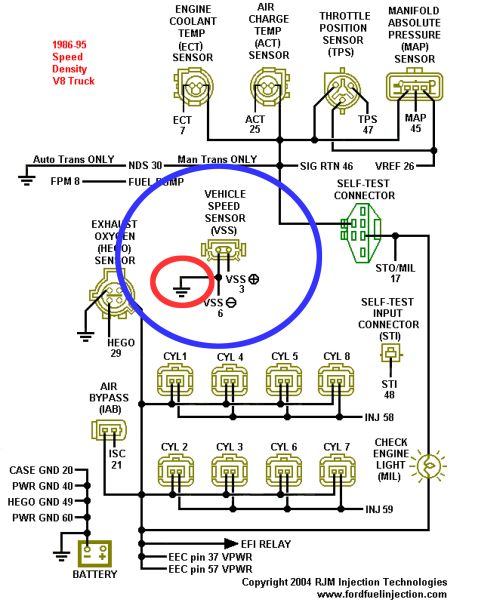

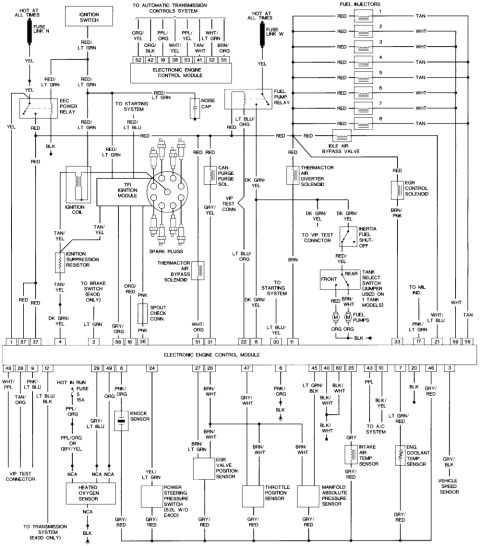

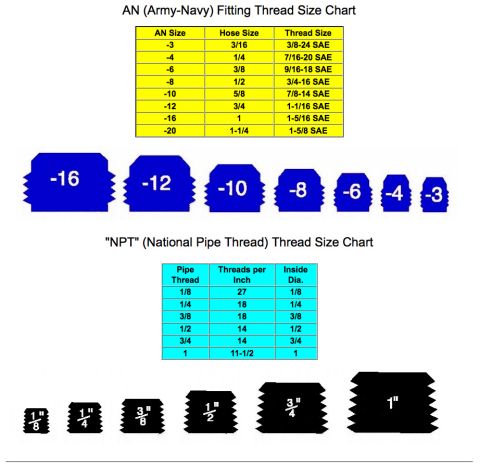

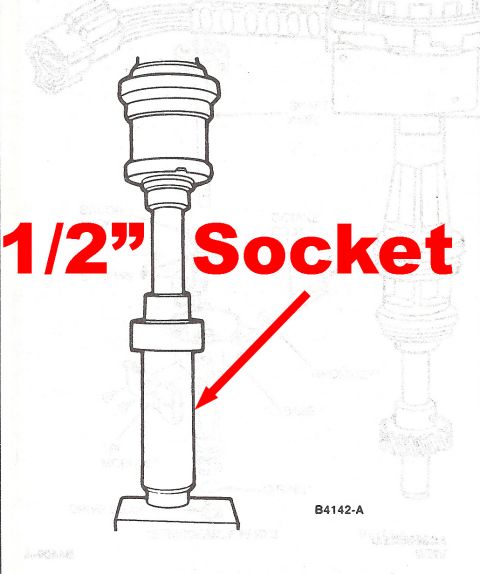

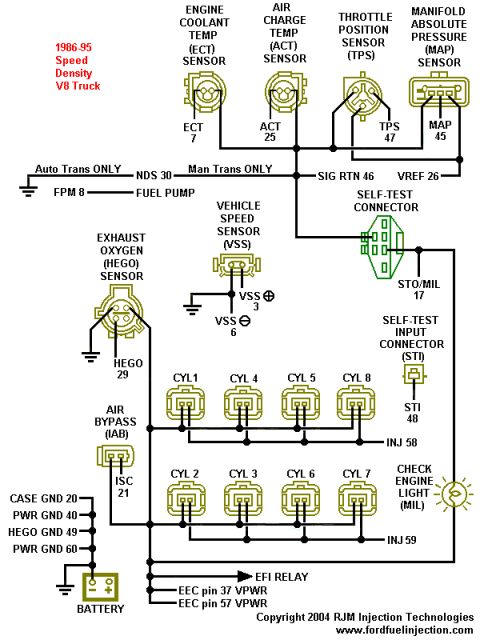

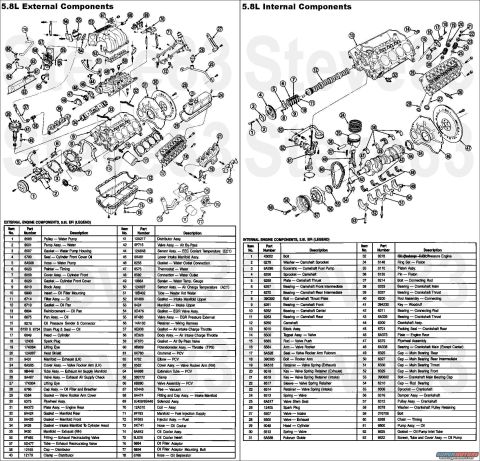

1990 Ford Bronco - Ford Fuel Injector Guide 1990 Ford Bronco - Reference chart of gasoline air/fuel ratios; lists 12.5:1 safe best power at WOT, 14.7:1 chemically ideal, and 6.0:1 to 18-22:1 run limits. 1990 Ford Bronco - Reference formula chart calculating fuel injector flow rate in lbs/hr and cc/min from horsepower, BSFC and duty cycle. 1990 Ford Bronco - Diagram shows a formula for calculating duty cycle related to engine performance. 1990 Ford Bronco - (Army-Navy) and NPT pipe thread size reference charts with hose sizes, threads-per-inch and scaled fitting silhouettes. 1990 Ford Bronco - A gear ratio chart mapping tire size (rows 30-44) against gear ratios (3.31 to 7.17), with color-coded cells in yellow, green, and red, plu… 1990 Ford Bronco - 130A 3G Alternator 1990 Ford Bronco - Intake Sensor Locations 1990 Ford Bronco - Wheel stud dimension reference diagram labeling overall stud length, thread depths and diameters for part identification. 1990 Ford Bronco - Exploded parts diagram of a leaf-spring-to-axle mounting showing U-bolt, top plate, axle seat, centerbolt and deep nut. 1990 Ford Bronco - Ford 5.8L secondary air system schematic showing AIR diverter, bypass and check valves with engine routing views. 1990 Ford Bronco - Diagram of the Ford Thermactor (secondary air injection) system: PCM/EEC controlling TAD and TAB vacuum solenoids, secondary air pump, comb… 1990 Ford Bronco - Step-by-step initial adjustment procedure for the parking-brake cable tension limiter assembly on light trucks and Bronco. 1990 Ford Bronco - Parts diagram of the cable-actuated rear-wheel parking brake assembly identifying shoes, springs, links, and parking lever. 1990 Ford Bronco - Exploded parts drawing of a Ford 3G series alternator showing pulley, rotor, stator, rectifier and case components. 1990 Ford Bronco - Heater hose routing schematic for the 5.8L engine showing numbered hose connections for AOD/4R70W and E4OD installations. 1990 Ford Bronco - Exploded-view parts illustration of a Ford 5.8L (351W) EFI engine showing external and internal components keyed to a numbered part-number… 1990 Ford Bronco - Photograph of an assembled starter-solenoid wiring harness with handwritten labels for gauge sizes, fuse holder and terminal bay. 1990 Ford Bronco - Exploded parts diagram of 1980-96 Bronco body mounts showing numbered bolts, washers and bushings by position. 1990 Ford Bronco - Exploded parts diagram of the FS-6 air-conditioning compressor with clutch, front head and rear head components and specs. 1990 Ford Bronco - Exploded parts and service diagram of the Ford FX-15 AC compressor showing clutch, pulley, manifold and clutch air-gap check. 1990 Ford Bronco - Close-up of a red distributor cap with brass spark plug terminals, marked with a black arrow and red text labeling the 'Distributor Vent Ca… 1990 Ford Bronco - Wiring diagram of the electronic engine control module showing sensor, injector and ignition connections with color-coded wires. 1990 Ford Bronco - Speed-density V8 truck EFI wiring diagram showing sensors, cylinder injectors, self-test connector and ground circuits. 1990 Ford Bronco - Service procedure showing spring-lock coupling tools and numbered steps for connecting and disconnecting fuel line fittings. 1990 Ford Bronco - Exploded parts diagram of a rear bumper showing numbered brackets, isolators and bolts with a parts legend and torque values. 1990 Ford Bronco - A freshly rebuilt V8 engine block sits on a stand in a workshop, painted silver/aluminum, with red circles and arrows labeling the ACT, ECT… 1990 Ford Bronco - Reference chart of 1984-96 EFI sensor values listing MAF, temperature and pressure sensor voltages, resistances and graphs. 1990 Ford Bronco - Close-up of an engine bay showing a blue anodized fuel rail, black spark plug wires, and wiring harnesses; red annotations mark the Temp Se… 1990 Ford Bronco - Service procedure for installing and tuning a performance distributor; set initial timing 5-2 BTDC, total mechanical advance 32 BTDC, plug… 1990 Ford Bronco - Fuse and relay chart mapping engine compartment fuse box positions (A-U) and relays including horn, fuel pump, PCM power, and trailer relay… 1990 Ford Bronco - Annotated engine bay showing MAP/BAP sensor and vacuum line locations above a V6, with blue upper radiator hose and fan shroud. 1990 Ford Bronco - Trailer wiring diagram with color-coded wires (green, yellow, brown, white) routed to rear markers, stop/turn lamps, and grounds. 1990 Ford Bronco - Trailer wiring color-code chart mapping connector functions to wire colors and minimum gauges: right turn green, left turn yellow, ground w… 1990 Ford Bronco - 5.0L/5.8L HO firing order diagram (1-3-7-2-6-5-4-8) with anti-crossfire spark plug wire routing and 10-degree base timing. 1990 Ford Bronco - Exploded view of front headlamp assembly mounting: headlamp assembly 13005 (RH)/13006 (LH), retainer 13C011, bulb assembly 13465, wiring 14… 1990 Ford Bronco - Illustration showing location of early-model EEC-IV relay and housing assembly mounted in the engine compartment against the left side fend… 1990 Ford Bronco - Engine-compartment fuse box and trailer relay box diagram with a fuse-position table listing amperage and protected circuits, including 4WA… 1990 Ford Bronco - Fuse and relay chart mapping engine compartment fuse box positions (A-U) and relays including horn, fuel pump, PCM power, and trailer relay… 1990 Ford Bronco - HEGO sensor connector pinout diagram labeling the +12 volts, ground, signal return, and HEGO signal terminals. 1990 Ford Bronco - Exploded parts breakdown of a door assembly showing glass, regulator, vent window, weatherstripping, and handles with Ford part numbers (P-… 1990 Ford Bronco - Exploded parts breakdown of interior trim panels, vents, speaker grilles, and fasteners with Ford part numbers (P-19846). 1990 Ford Bronco - RJM Speed Density EEC-IV wiring schematic for 1986-95 Ford V8 trucks: ECT, ACT, TPS, MAP, VSS, HEGO sensors and 8 injectors mapped to EEC p… 1990 Ford Bronco - Service procedure steps 2.5b-2.5c showing drum brake adjuster access with a photo and an instructional figure. 1990 Ford Bronco - Identification chart showing oil-pan outline shapes for three-speed Ford automatic transmissions (C6, FMX, C4, C5, C3). 1990 Ford Bronco - Identification chart showing oil-pan outline shapes for four-speed Ford automatic transmissions (A4LD, AOD, AODE, E4OD). 1990 Ford Bronco - Connector pin-out diagram of a manifold absolute pressure (MAP) sensor labeling VOLT REF, MAP, and SIG RTN terminals. 1990 Ford Bronco - Ford steering column exploded illustration: tilt and non-tilt automatic columns, shift indicator cable routing, ignition lock cylinder and… 1990 Ford Bronco - Ford detail illustration of transmission control selector indicator cable installation on a non-tilt automatic column: screw 383736, retain… 1990 Ford Bronco - Connector pin-out diagram of a 1989-95 mass air flow (MAF) sensor labeling +12V, ground, MAF-RTN, and MAF terminals. 1990 Ford Bronco - Ford EEC-IV pinpoint test schematic (17-77) for the Throttle Position (TP) sensor: test pins 26 VREF, 46 SIG RTN, 47 TP at breakout box, wi… 1990 Ford Bronco - Reference table of throttle position sensor (TPS) voltage settings by make, listing KOEO closed-throttle and wide-open-throttle voltages fo… 1990 Ford Bronco - Service-procedure illustration calling out use of a 1/2-inch socket on a vertical shaft component, ref B4142-A. 1990 Ford Bronco - Service-procedure illustration showing a splined shaft and fixture supported by threaded studs under a press, ref B4139-A. 1990 Ford Bronco - Close-up of an engine bay component, showing a black cylindrical solenoid with a red arrow and 'Bracket Bolt' text pointing to a brass-colo… 1990 Ford Bronco - Engine bay view of a Ford Bronco with red circles and arrows labeled 'AC Ports' highlighting two air conditioning service ports, one near t… 1990 Ford Bronco - Close-up of a red distributor cap with brass spark plug terminals, marked with a black arrow and red text pointing to the 'Distributor Vent… 1990 Ford Bronco - MSD Ignition module (TFI-style) front and side views labeling the 6-pin connector: PIP, SPOUT/spark output, IDM, HOT/start/run, coil negati… 1990 Ford Bronco - Bar charts titled GT-40 vs E7TE comparing intake and exhaust CFM airflow across valve lift, with a head photo. 1990 Ford Bronco - A diagram displays a formula for calculating horsepower and injector flow rate, with a conversion to cc/min. 1990 Ford Bronco - 1988-93 Mass Air Mustang EEC-IV engine wiring diagram mapping sensors (ECT, ACT, TPS, BP, VSS, MAF, HEGO) and 8 injectors to EEC pin number… 1990 Ford Bronco - Engine coolant temperature sensor connector diagram identifying the ECT and SIG RTN terminals. 1990 Ford Bronco - Close-up of an engine block with a hand interacting with a component, highlighting a raised boss. 1990 Ford Bronco - Close-up of an engine block casting showing "351" and "WCP-13" identifiers. 1990 Ford Bronco - Connector pinout diagram showing numbered terminal positions across a multi-pin electrical connector. 1990 Ford Bronco - Wiring diagram of a relay circuit converting constant to momentary 12v output using a capacitor and fixed resistor. 1990 Ford Bronco - Connector pinout diagram identifying EEC test connector pins for STO/CEL, Fuel Pump, SIGRTN and STI signals. 1990 Ford Bronco - Exploded parts diagram of an air intake system showing the duct, air cleaner housing, and resonator with numbered and lettered component ca… 1990 Ford Bronco - Exploded parts diagram of the air intake duct and air cleaner assembly with numbered and lettered callouts and a front-of-vehicle reference. 1990 Ford Bronco - Wiring diagram for a 1986-95 speed-density V8 truck mapping engine sensors, injectors, and EEC pins with circuit numbers.
